Lecture – Real-Time Operating Systems (Chapter 11)

Table of Contents

• Lecture – Real-Time Operating Systems (Chapter 11)
  • Table of Contents
  • References
  • Multitasking systems
  • Tasks
  • Resources
  • Processor is a shared resource
  • Scheduling
  • Preempting and Context Switching Overhead
  • Threads
  • Reentrant Code & Thread Safe Code
    • Example: Thread safe but not reentrant
    • Example: Reentrant but not thread safe
  • Reentrant and Thread Safe Coding Practices
  • Kernel
  • Functions of Operating System
  • RTOS
  • Task Control Block
  • A simple kernel example
    • Implementation Model
    • Implementation with Function Calls (Round-ROBIN SCHEDULE)
    • Implementation with TCB and Shared Data
    • Implementation with ISR (Interrupt-Driven) and Global Variables for Flags/Messages
    • Sleep and Conditional Waiting States for Processes
  • Context Switching
  • Memory/Storage for Multiple Contexts
  • Slide Fixes

References

• †James K. Peckol : Embedded Systems: A Contemporary Design Tool, Wiley https://www.wiley.com/en-us/Embedded+Systems%3A+A+Contemporary+Design+Tool%2C+2nd+Edition-p-9781119457558
  • Specifically Book Chapter 11

Multitasking systems

• Multitasking systems solves a problem using several tasks, pieces of code that work together in an organized way.
• Coordination requires:
  • exchanging information (sharing data between Tasks)
  • synchronizing tasks (with dependencies among tasks, executing parts of tasks correctly in time)
  • scheduling task execution (providing time for task to run on processor)
  • sharing resources (providing time for task to access a shared resource)
• software that does those things is called an operating system
• An operating system that can meet specified time constraints for task execution is called a real-time operating system (RTOS)

Tasks

• Task are like the individual jobs that must be done (in coordination) for a large job.
• We can partition the design based on things that we think can/should be done together, or just in a way to make the problem easier to think about, or based on knowing the most efficient partitioning for execution.
• Example tasks/design partitions for a digital thermometer with flashing temperature indicator:
  • Detect & signal button pressed
  • Read temperature & update flash rate
  • Update LCD
  • Flash LED

Resources

• Tasks/processes require resources or access to resources
  • processor (for execution)
  • stack
  • memory
  • registers
  • P.C.
  • I/O Ports
  • network connections
  • file descriptors
  • etc..
• These are allocated to a process when it is executed by the operating system.
• The contents of the P.C. & other pieces of data associated with the task determine its process state.

Processor is a shared resource

• Each process requires some execution time to complete

• The OS manages resources, including CPU time, in slices to create the effect of several tasks executing concurrently, seemingly performing their jobs at the same time.

• Though, in actuality they may not be running at the same instant in time

  • unless you have a multi-threaded or multi-core processor.

• We'll call the time between the start and termination of a task its persistence.

• Since several tasks time-share the CPU and other resources, execution time may not equal the persistence.

  • Task 0:
    • execution time: (20-10)+(70-50)=30 us
    • persistance (time): 70-10=60 us

Scheduling

• The illusion of parallel execution is created by scheduling a scheduling process the moves tasks between states.

• Concurrent execution is the execution of statements, e.g. among different tasking, where there is flexibility the order of execution (whereas parallel execution requires additional hardware to actually run simultaneously)

• Options for Scheduling Strategies:

  • Multiprogramming: tasks run until finished or until they must wait for a resource, e.g. I/o
  • Real-time: Tasks are scheduled and guaranteed to complete with strict timing specified
  • Time-sharing, tasks are interrupted, or preempted, after specified time slices to allow time for other tasks to execute

• Processor Context Switchs Between Processes

• Process enters system queue, state transitions between running and ready-waiting states, completes

Process State Diagram:

Preempting and Context Switching Overhead

• Preempting/blocking requires saving the state of the process as it is running in the processor, called the
  context, including P.C. and registers, so that the process can be stopped/blocked and the context can be restored later for the process to resume just as it left off. (similar to saving state when a function is called and restoring state at the end of a function)
• This saving of state of one process and loading of another is called context switching. It is the overhead of multitasking.

Overhead:

Threads

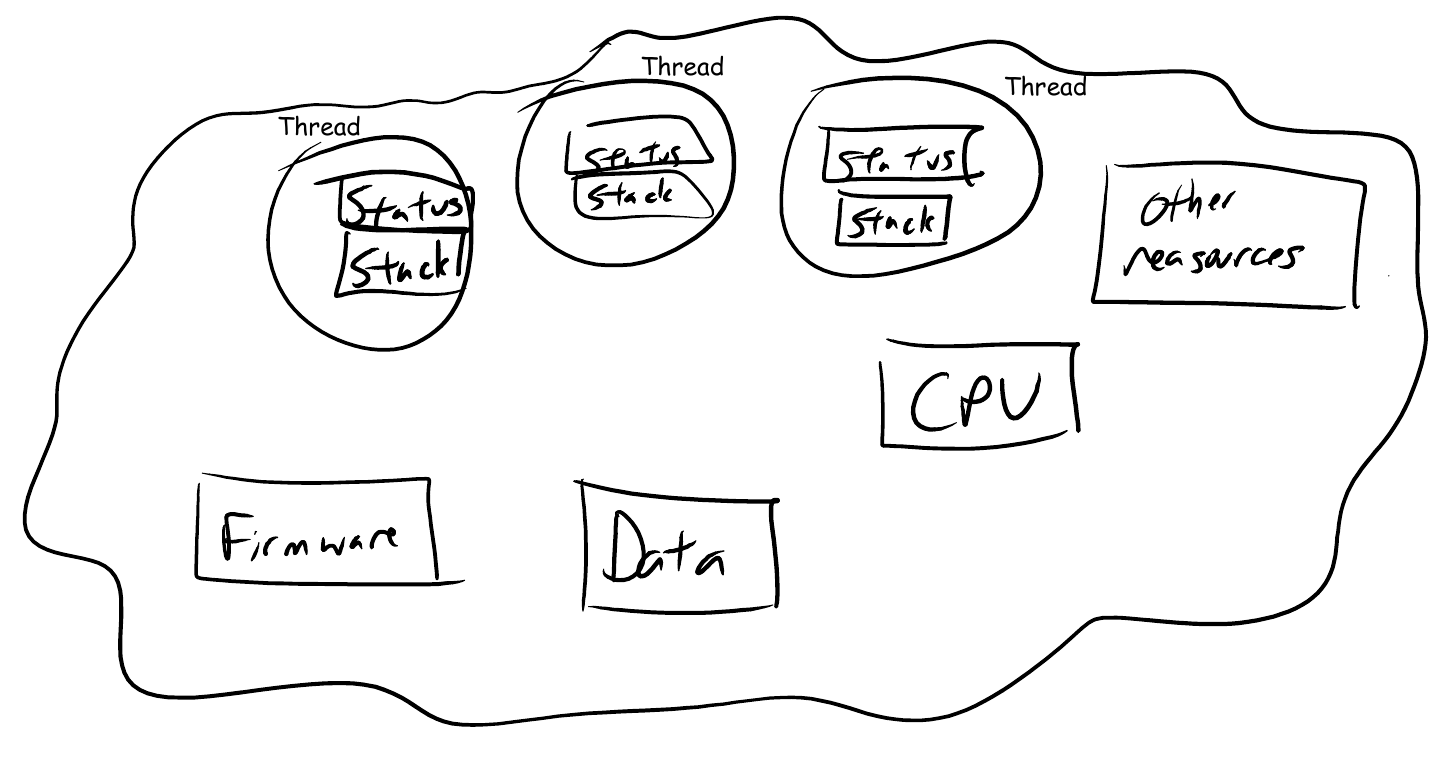

• Think of a thread as an organizational concept that is the smallest set of (information about) resources required to run a program, including a copy of the CPU registers, stack, PC.

• The OS manages several tasks as threads.

†James K. Peckol Figure 11.7

• Ideally, each process should have its own private section of memory to work with, called is address space.

• Along with hardware support (memory protection unit MPU), an OS may be able to enforce that processes do not access memory outside their own address space.

  • lacking feature on many simple microcontrollers

• Organizational concepts (may have one or both):

  1. Multi-process execution: multiple distinct processes running in separate threads
  2. Multi-threaded process: a process with several execution threads (likely sharing memory and managing
     resource use internally)
  • intraprocess thread context switching is typically less expensive than interprocess context switching.

Reentrant Code & Thread Safe Code

• Cannot assume that all code is safe to run alongside other code simultaneously or even along side itself

• Thread Safe: (safety with respect to other code)

  • A function with thread safe code means other threads or processes can run safely the same time

• Re-entrant code (safety with respect to same code)

  • Re-entrant code behaves with concurrent execution of the same code (e.g. multiple calls to the same function)

Example: Thread safe but not reentrant

• To allow multiple processes to safely time-share a resource, an OS
  typically provides check, lock, and free utility functions. These are used to make a code thread safe.
  • These types of utility functions are called mutex (mutually exclusive) functions and are provided by the OS; we'll discuss mutex functions more later.

Example:

int AFunction() {
// some function that checks and waits for
// availability of a resources and locks/reserves
// it so other processes won't access it
// -> makes this thread safe
wait_for_free_resource_and_then_lock_access();

do_some_wok();

//free/unreserved the resource
unlock_some_resource();
}

• To look at reentrant lets look at simultaneous calls from a main thread and an ISR
  • Consider function synopsis
    1. Wait and Lock: Wait for then Lock Resource
    2. Use Resource
    3. Unlock Resource

Example: Reentrant but not thread safe

• Example code with READ access of a file:
  • can call over and over in the same process while function is still running, but if another thread deletes the file then from the other's threads perspective the file handle becomes bad without any warning while it is using it.
  • undisrupted access -- need a way for a process to "lock" a resource to be able to ensure that its assumptions are upheld

int function() {
  char *filename="/etc/config";
  FILE *config;
  if(file_exist(filename)){

    config=fopen(filename,"r");

    ...assume success and
    ...read configuration from file

  } else{

    ...use program defaults...

  }
}




• check if the file exists
• what if file is deleted by another process at this point?

• Many OSs will prevent deletion while the file is open
• multiple calls can read the file at the same time
  • (writing might be dangerous)





 --code source: http://en.wikipedia.org/wiki/Thread_safety

Reentrant and Thread Safe Coding Practices

• Problematic - multiple calls access the same variable/resource:

  • global variables
  • process variables
  • pass-by-reference parameters
  • shared resources

• Safer:

  • local variables - only using local variables makes code reentrant by giving each call its own copy

• For example, some string functions like strtok() (provided via #include <string.h>) use global variables and are not reentrant

Kernel

• The "core" OS functions are as follows:

  • perform scheduling -> handle by the "scheduler"
  • dispatch of processes -> handle by the "dispatcher"
  • facilitate inter-process communication

• A kernel is the smallest portion of OS providing these functions

Functions of Operating System

• Process or Task Management
  • process creation, deletion, suspension, resumption
  • Management of interprocess communication
  • Management of deadlocks (processes locked waiting for resources)
• Memory Management
  • Tracking and control of tasks loaded in memory
  • Monitoring which parts of memory are used and by which process
  • Administering dynamic memory allocation if it is used
• I/O System Management
  • Manage Access to I/O
  • Provide framework for consistent calling interface to I/O devices utilizing
    device drivers conforming to some standard
• File System Management
  • File creation, deletions, access
  • Other storage maintenance
• System Protection
  • Restrict access to certain resources based on privilege
• Networking - For distributed applications,
  • Facilitates remote scheduling of tasks
  • provides interprocess communications across a network
• Command Interpretation
  • Accessing I/O devices through devices drivers, interface with user to accept and
    interpret command and dispatch tasks

RTOS

• An RTOS follows (rigid) time constraints. Its key defining trait is the predictability (repeatability) of the operation of the system, not speed.

  • hard-real time -> delays known or bounded
  • soft-real time -> at least allows critical tasks to have priority over other tasks

• Some key traits to look for when selecting an OS:

  • scheduling algorithms supported
  • device driver frameworks
  • inter-process communication methods and control
  • preempting (time-based)
  • separate process address space
  • memory protection
  • memory footprint, data esp. (RAM) but also its program size (ROM)
  • timing precision
  • debugging and tracing

Task Control Block

• The OS must keep track of each task. For this, a structure called as task control block (TCB) or a process control block can be used. They will be stored in a Job Queue implemented with pointers (array or linked-list).

• A prototypical TCB follows

  • it's generic to support a variety of functions.

  struct TCB {
    void (*taskPtr)(void * taskDataPtr); //task function(pointer),one arg.
    void * taskDataPtr;                  // pointer for data passing
    void * stackPtr;                     // individual task's stack
    unsigned short priority;             // priority info
    struct TCB * nextPtr;                // for use in linked list
    struct TCB * prevPtr;                // for use in linked list
  }



  Code Source: †James K. Peckol

• Think about the aspect of being generic. A task can be just about anything that a computer can do. A generic template must be used to handle any task.

• Each task is written as a function conforming to a generic interface (template):

  void aTask( void * taskDataPtr){
  // this task's code
  }



  Code Source: †James K. Peckol

• Each task's data is stored a customized container. The task must know the structure, but the OS only refers to it with a generic pointer.

  struct taskData{
    int task DataO;
    int task Data1;
    char task Data2;
  }



  Code Source: †James K. Peckol

A simple kernel example

• Tasks to be performed for this example:

  • Bring in some data
  • Perform computation on the data
  • Display the data

• First Implementation:

  • System will run forever cycling through each task calling the task and letting it finish before moving on

• Second Implementation

  • Declares a TCB for each task
  • TCB contains a function pointer for the task
  • Data to be passed to the task
  • Task queue implemented using array, each task runs to completion

• Third Implementation

  • Adds usage of ISR to avoid waiting

Implementation Model

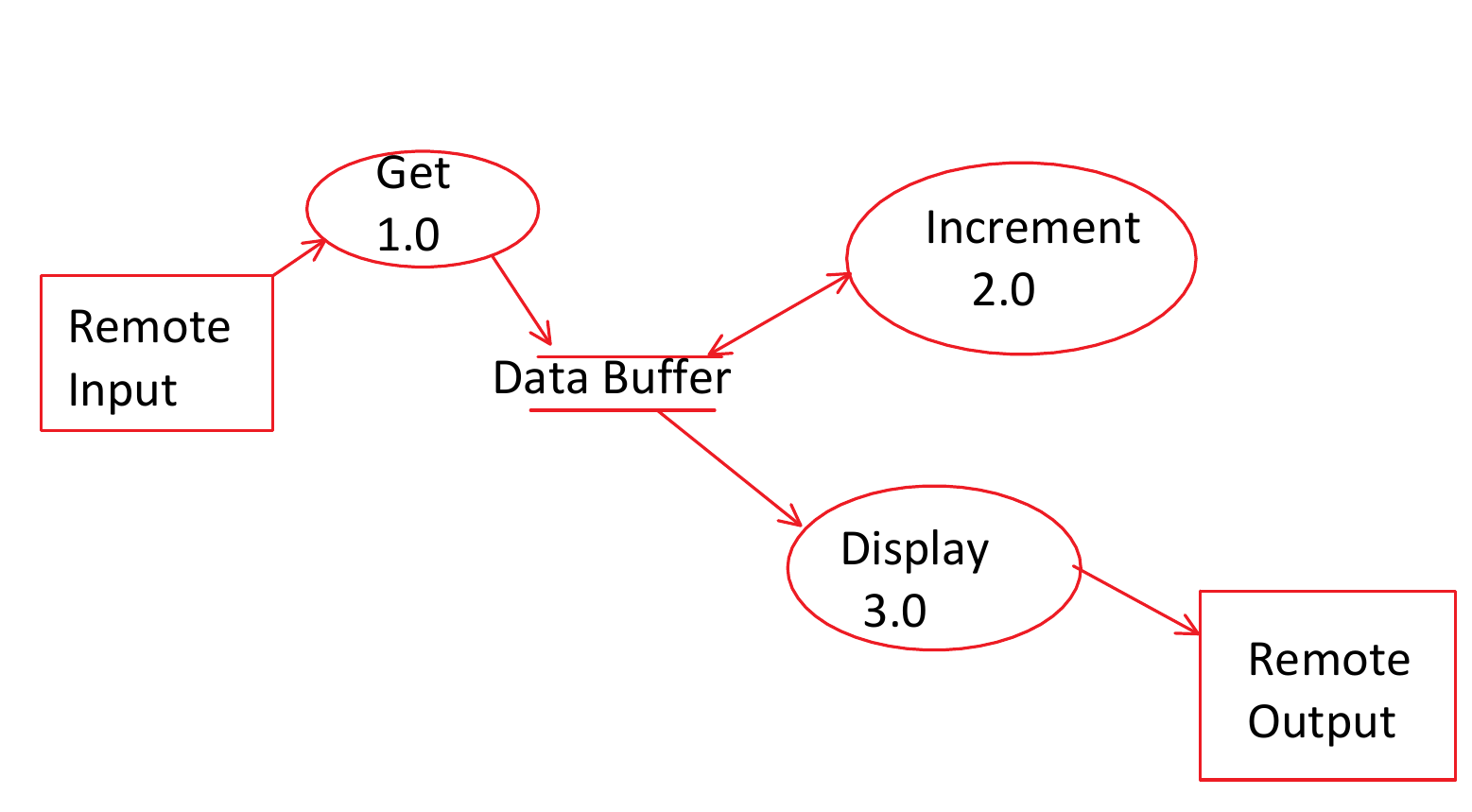

†James K. Peckol Figure 11.13

Implementation with Function Calls (Round-ROBIN SCHEDULE)

// Building a simple OS kernel - step 1
  redacted












































}

Implementation with TCB and Shared Data

• In this small example, the three tasks simply share the same data

                                                 // Building a simple OS kernel - step 2
#include <stdio.h>
redacted





























































}

• If any task must wait for something, no other task can run until the running task no longer needs to wait.
• This can lead to system "hanging", trivially waiting on something
• In this case, no updates can happen while waiting on user input
• Would be better to break task up into two parts:
  • task: display prompt
  • task: check if user entered data and move on otherwise .... Practically implemented using interrupts

Implementation with ISR (Interrupt-Driven) and Global Variables for Flags/Messages

// Building a simple OS kernel - step 3 #include <stdio.h>
redacted
























































}

void prompt(void) { // perform input operation
redacted































}

• Thought question: What are the options for you handling a user prompt longer than 1 char?

• Baseline Operation

• Infrequent ISR, long routine with collection, preprocessing, processing

• Infrequent ISR, routine is short with data buffered and derivative tasks flagged to complete in low-priority Task

  • Less disruptive to Task 1 and Task 2 schedules

Sleep and Conditional Waiting States for Processes

• Notice that that prompt function is called forever even though it only acts
  once per input

  • Would be better if prompt function could signal that it should be taken out of the queue when it is finished and reenter only when needed again
  • e.g. REMOVE_FROM_ACTIVE_QUEUE() , another process must wake the process

• Rather than calling every task function every time through, it would be nice if a task has a way to tell the scheduler to "time out" itself for a while (take itself temporality out of calling or execution queue (ready-waiting).

  • e.g. REMOVE_FROM_ACTIVE_QUEUE_FOR(500 rounds)

• Alternatively, a task could tell the kernel to only call it again upon some condition being set, by defining a software flag and waiting for it to be set by another task.

  • e.g. REMOVE_FROM_ACTIVE_QUEUE_UNTIL(flagIndexData)

• An even more advanced and useful feature would be if there was a call that a task could make put itself to sleep somewhere the middle of the its code and resume where it left off.

  • SLEEP_HERE()
  • SLEEP_HERE_FOR(500 ticks)
  • SLEEP_HERE_UNTIL(flagIndexData)

• Most of these are addressed/enabled by the operating system

void prompt(void) { // perform input operation
redacted
