Lecture 12 – FSM I

• \(\dagger\) A Practical Introduction to Hardware Software Codesign Patrick Shaumont
• \(\dagger\)\(\dagger\) The Verilog® Hardware Description Language, Donald E. Thomas (Author), Philip R. Moorby (Author) ISBN:9781402070891 Amazon Link

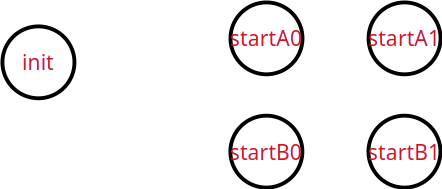

  • Examples for rescheduling

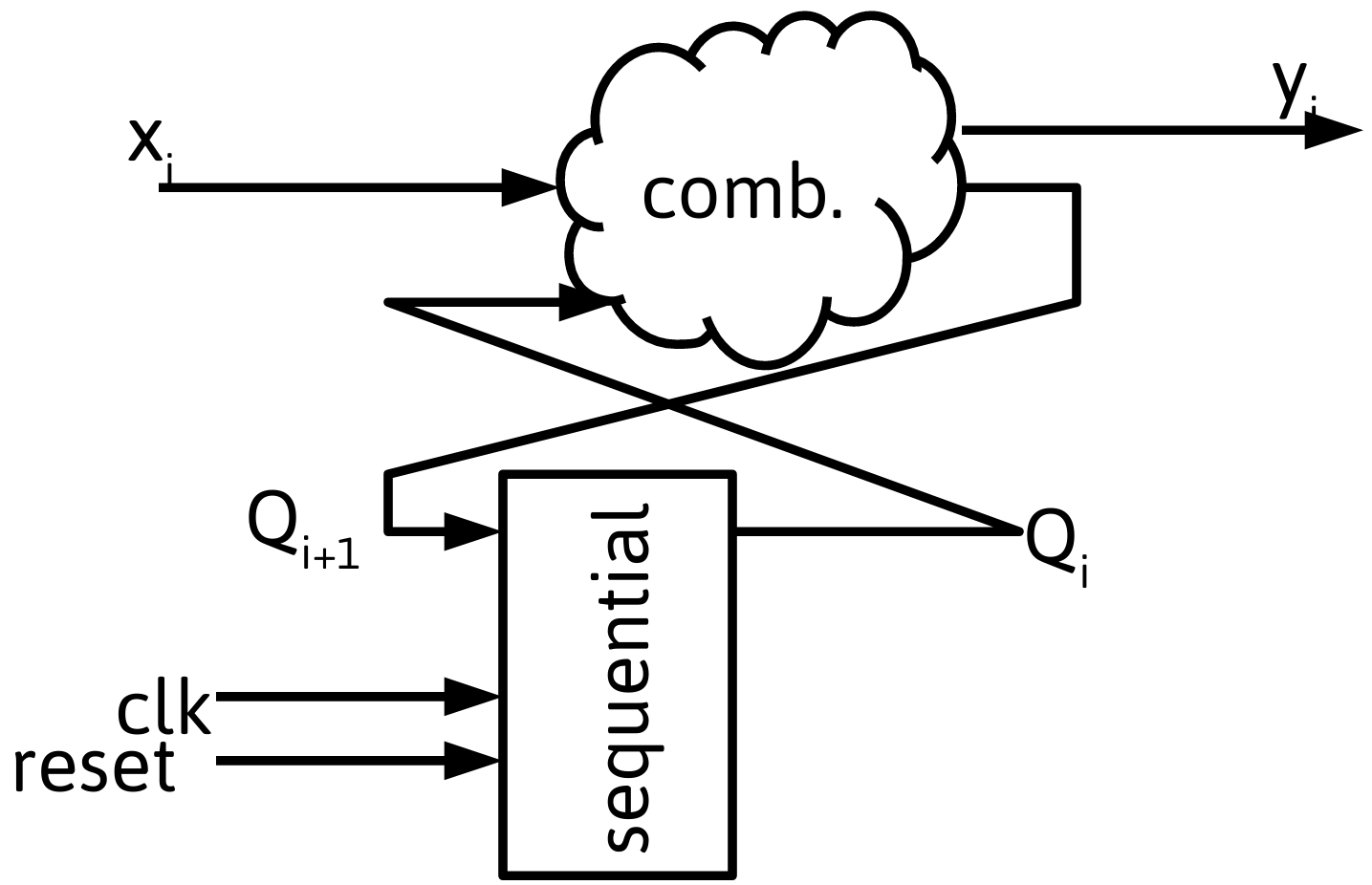

• All Finite State Machines can be partitioned into a combinatorial and sequential parts
• Often these two pieces are coded in separate code blocks, but they may also be combined sometimes
• Note: some simple register-specific operations such a synchronous reset are coded in either the combination or the sequential blocks, but are often coded in the sequential block to indicate selection of register configuration. An asynchronous clear should be part of the sequential block.

module FSM (clk, clear, x,y);

input logic clk, clear;
input logic [2:0] x;
output logic [1:0] y;

// States
typedef enum int {S0,S1,S2} state_t;


// Declare current state and next state variables
state_t CS,NS;


always_ff @ (posedge CLOCK or posedge clear) begin
  if (clear == 1'b1) CS <= S1;
  else CS <= NS;
end

always_comb begin //always @ (CS, x)
  case (CS)
    S1 : begin
         y = {x[2] , ~x[1] && x[0]};
         if (x[2] && ~x[1] && x[0])
           NS = S2;
         else if (x[2] && x[1] && ~x[0])
           NS = S4;
         else
           NS = S1;
    end
    S2 : begin
         y = 2'b10;

    ...

• every output bit must be well-defined for every case and input to avoid latches
• for NS, every output bit is set in every case to avoid latches

reg [7:0] CS,NS; //reg!=register
localparam S_init   = 8'b00000000;
localparam S_start0 = 8'b00000001;
localparam S_start1 = 8'b00000010;

enum int {S_init, S_start0,S_start1} state_t;
state_t CS,NS;

SystemVerilog enum:

• meaningful enum symbols displayed in waveform viewers and loggers

• Symbol accessed as string through member function name():

  $strobe("State %s %0d",CS.name(),CS);


• When automatic FSM state reencoding is used, shouldn't put much human effort into providing encodings
  • using localparam to provide state encodings requires significant effort and careful use
  • later: discuss that with default settings, many synthesizers replace user-provided encodings for FSM states
  • therefore use of enum int seems appropriate when finally using synthesizer-generated encodings

always_ff @ (posedge CLOCK or posedge CLEAR) begin: FSM
  logic _temp;

  if (CLEAR == 1'b1) begin
    CS <= S1;
  end else begin
    case (CS)
      S1 : begin
        _temp = ~x[1];                     //intermediate logic (blocking assignment)
        y  <= {x[2] , _temp & x[0]};       //register intent (non-blocking assignment)
        if (x[2] && _temp && x[0])
          CS <= S2;                        //register intent (non-blocking assignment)
        else if (x[2] && x[1] && ~x[0])
          CS <= S4;
        else
          CS <= S1;
      end
      S2 : begin
          y  <= {x[1] && ~x[1] , x[0]};
         .
         .
         .

• Embedded combination circuit signal assignments ended with blocking assignment and thus encode "immediate" effect. All consumers of blocking assignment results should be within this code block. Even within the block, no consumer should rely on a value assigned from a blocking statement in a previous trigger event.
• Remember, any variable written to inside an edge-triggered block can become a register regardless of the use of blocking or non-blocking…consider every output variable, combinational and sequential, in every case and branch of decision tree and make sure assignments are always made to avoid latches

🛰️ Registered Output with Three-Always Block Style

• Registered output can cause “cycle delays” so some output transitions need to be coded along with the state transition into a state rather than with the state they are supposed to coincide with (discuss output on prev. slide)
• Sometimes this feels like you’re coding outputs in the “previous state” or coding output ahead of time to account for register delay. I refer to it as coding the output along with the state transition it coincides with. This leads to additional lines of code as you need to code each output logic possibly for every transition to a state rather than once per state
• To avoid this “code bloat”, yet another approach is to code the registered outputs in a separate block. This leads to three blocks:
  • Combinatorial Next State Logic along with any combinatorial outputs
  • Sequential State Register
  • Sequential Registered Outputs according to the destination (next) state from the combinatorial Block.
• Good contrasting examples can be found here: http://www.sunburst-design.com/papers/CummingsSNUG2003SJ_SystemVerilogFSM.pdf

module control_with_state_machine2(
   input  logic clk,
   input  logic rst,
   output logic startA,     //start signal to peripheral A
   output logic startB,     //start signal to peripheral B
   input  logic busyA,      //busy signal from peripheral A
   input  logic busyB,      //busy signal from peripheral B
   output logic ready,      //ready signal to primary
   input  logic sel_0A1B,    //go signal from primary
   input  logic start        //go signal from primary
);

enum int {S_init, S_start0,S_start1} state_t
state_t CS,NS;

assign ready = ~(sel_0A1B?busyB_n:busyA_n); // extra combinational logic outside state machine

  always_ff @ (posedge clk) begin
    if (rst == 1)
      CS<=S_init;
    else
      CS<=NS;
  end

  always_comb begin
     NS = CS;
     case (CS)
    S_init: begin
       if (go) begin
          NS = S_start0;
       end
    end
    S_start0:
      NS = S_start1;
    S_start1:
      NS = S_init;
      endcase
  end

  always_ff @ (posedge clk) begin
     case (NS)
       S_init:
         startA <= 0;
         startB <= 0;
       S_start0:
         startA <= ~selAnB;
         startB <= selAnB;
       S_start1:
         startA <= startA;
         startB <= startB;
      endcase
  end


endmodule

• also need to consider appropriate resets and defaults logic

Note that the specification from the following timing diagram could not be satisfied by registered logic, since values are passed through the interface intra-cycle, (within the same cycle, rather than only from one cycle to the next)

• Characterized by
  • A set of states
  • A set of inputs and outputs
  • A state transition function
  • An output function
• Hardware Implementation
  • Current State held in a register
  • Any additional status information held in status register
  • Next-State and State Control Logic Determines next state and control signals based on registers
  • Datapath implements operations on data under control of sate control logic
