L04 – Verilog Events, Timing, and Testbenches

• (Schaumont 2010) Schaumont, Patrick

A Practical Introduction to Hardware/Software Codesign, Springer ISBN 978-1-4614-3737-6 https://www.springer.com/gp/book/9781441960009

a=b+1;
a=a*3;

a = (b+1)*3;

• can be implemented in hardware with



  or perhaps



• ensure the in a pass of code a given variable is only assigned once
• conversion involves
  • introduction of new variAbles and
  • renaming to ensure single assignments in a section of code.

a=b+1;
a=a*3;

a1=b+1;
a2=a1*3;

• simplifies identification of the producing expression
• easier to understand the underlying data-flow
• data-dependency graphs can be generated more easily from single-assignment code
• unique identifiers facilitate association of hardware nets to variables in code

MERGE is a conceptual tool that can be introduced facilitate code analysis. We'll first motivate MERGE with an example.

a=b;
for(i=1;i<6;i++){
   a=a+i;


}
//(Schaumont 2010)

a1=b;
for(i=1;i<6;i++){
  a2= a? + i; //what to use?
             // for  first iteration need a1,
             //      thereafter       need a2
}
//(Schaumont 2010)

Solution is to use introduce the concept of a MERGE**. A MERGE maps to a mux in hardware, typically creating a loop or feedback.

Still must ensure that no combinatorial loops are formed, adding registers and multiple clock cycles as needed (below a2 may be implemented a register to ensure this).

a1=b;
for(i=1;i<6;i++){
   a3=MERGE(i==1?a1:a2);
                        //now a1 and a2 will be registers
   a2=a3+1;
}
// (Schaumont 2010)

!!! WARNING MERGE IS ONLY A CONCEPT * MERGE is a */concept/, NOT an ACTUAL VERILOG LANGUAGE CONSTRUCT. Do not attempt to use merge in your code.

• Unrolling can be used to create single assignment code:

  a1=b;
  a2=a1+1;
  a3=a2+2;
  a4=a3+3;
  a5=a4+4;
  a6=a5+5;


  hardware if implemented in one clock cycle with 5 adders



• Algorithmic simplification , in this case arithmetic simplification can trim unnecessary complexity

  a = b+15;


  implies a single addition




This example code describes an iterative algorithm that will be implemented with registers

int gcd(int a , int b) {
  while ( a != b) {



    if ( a > b )
      a = a-b;
    else
      b = b-a;
  }
  return a;
}
// Shaumont 2010

int gcd(int a1 , int b1) {
    while (MERGE(_?a1:a2)!=
                  MERGE(_?b1:b2){
      a3 = MERGE(_?a1:a2);
      b3 = MERGE(_?b1:b2);
      if (a3 > b3)
        a2 = a3-b3;
      else
        b2 = b3-a3;
    }
    return a2;
}
// Schaumont 2010

Hardware Implementation:

• Single Assignment Code allows examination of data dependencies and hardware resources such as what can be done in a single clock cycle (combinatorial) and where a register is required.
• These concepts are also important when writing behavioral HDL code in Verilog or VHDL.

• Today we'll discuss a few constructs which involve a concern of Control Loops and Data (dependency) Loops in procedural HDL
• We'll first concern ourselves with combinatorial behavior and then allow additional flexibility with sequential
• Should not attempt to synthesize any code that implements unresolvable dependency loops as combinatorial HW (executes in one clock cycle)

• Think of each statement as a node on a graph with the edges denoting dependencies. Nodes can be producers and consumers of values. A graph with loops cannot be directly resolved as a combinatorial circuit. The inputs not generated from within the code are also nodes (they represent an assignment from elsewhere).

  always_comb begin //always @ (a,b,c)
     y1 = a+b;
     y2 = y1+c;
     y3 = y1+y2*y2;
  end




  • Note how in this code segment alone the output is not well-defined. It is not clear of y1,y2 are used elsewhere or if they are just working variables for partial results.

• Branches can be thought of as multiplexers that depend on the evaluation of conditional expression. A new flag variable resulting from the condition evaluation may be introduced to make this clear.

  always_comb begin //always @ (a,b)
     y1 = a+b;

     if (y1 < 0)
       y2 = 0;
     else
       y2 = y1;
  end


  explicit flag

  always_comb begin //always @ (a,b)
     y1 = a+b;

     flag = (y1 < 0);
     y2 = flag?0:y1;


  end




• To achieve the status of single assignment code, every variable may only be assigned once
• We may need to convert code to an equivalent single-assignment code to understand its underlying structure. To do this introduce additional variables when variables are assignment more than once

y = a+b;
s = y+c;
y = y+s*s;

y1 = a+b;
s = y1+c;
y2 = y1+s*s;

y = a+b;
if (y < 0)
y = 0;

y1 = a+b;
flag = (y1 < 0);
y2 = flag?0:y1;

• Consumption preceding production: If a procedural block consumes its own outputs before generating them, and external loop may be inferred

module top (u,v,a,b);

   output logic u; //u has scope outside the procedural block
   output logic v; //v has scope outside the procedural block
   input logic  a;
   input logic  b;

   always_comb begin // @ (*) begin
      u = v & a;  //consumes v and a, produces u
      v=  u & b;  //consumes u and b, produces v
   end
endmodule

Some synthesis tools might produce an error and halt synthesis, but the SystemVerilog standard only states that

Software tools should perform additional checks to warn if the behavior within an always_comb procedure does not represent combinational logic, such as if latched behavior can be inferred.

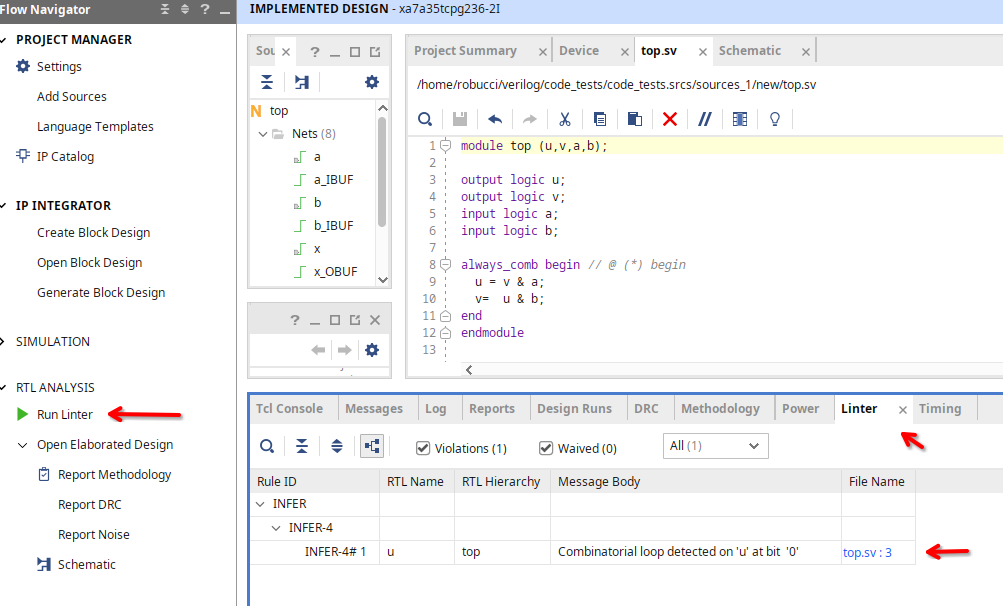

An advanced code linter can find the issue:

• Vivado 2023.2.2 exhibited no difference in behavior for always_comb vs. always @(*) in this code



• Inter-block combinational feedback: Combinational loops can be formed among multiple blocks, and this is to be avoided as well.

always @(*) begin: process_u
  u = y & a;
end

always @(*) begin: process_y
  y=  u & b;
end

It is important to be able to identify data dependency loops. Unresolvable loops cannot be implemented with combinational hardware.

• A conceptual test to understand if procedural code is implementing strictly combinatorial logic is to set every combinatorial result assigned to x at the entry point in the code, representing an erasure of any previous result lingering in the simulation
• If behavior would change in any case then code is not implementing strictly combinatorial logic

always @ (a,y) begin

  y = ~(y&a);
end

always @ (a,y) begin
  y=1’bx; //**
  y = ~(y&a);
end

• ❌ when a: y='x

always @(a,b) begin

 y = 1;
 y = y&a;
 y = y&b;
end

always @(a,b) begin
 y=1’bx; //**
 y = 1;
 y = y&a;
 y = y&b;
end

• ✔️combinatorial

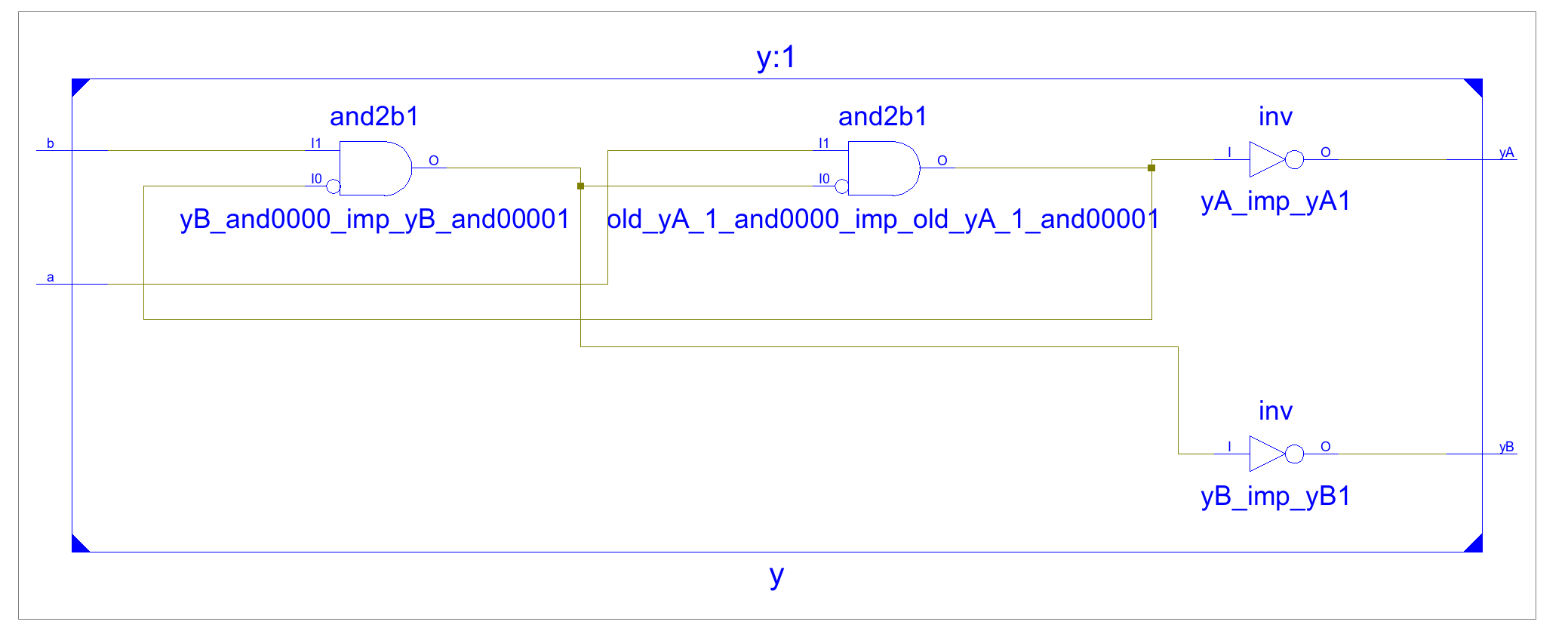

always @(a,b,yA,yB) begin

 yA = ~(yB&a);
 yB = ~(yA&b);
end

always @(a,b,yA,yB) begin
 yA=1’bx; yB=1’bx; //**
 yA = ~(yB&a);
 yB = ~(yA&b);
end

• ❌ when a==1: yA='x
• ❌ when a==1,b==1: yA='x yB='x

always @(a,b) begin

 if (a)
    p=1;
 y = ~(p&b);
end

always @(a,b) begin
 p=1’bx; y=1’bx; //**
 if (a)
    p=1;
 y = ~(p&b);
end

• ❌ when a==1,b==1: y='x

always@(a,b,c,s,y) begin

 if (s) begin
   p = (a&b);
   y = ~(yA|c);
 end else begin
   y = a|b;
 end
end

always@(a,b,c,s,y) begin
 p=1’bx; y=1’bx; //**
 if (s) begin
   p = (a&b);
   y = ~(yA|c);
 end else begin
   y = a|b;
 end
end

• ❌ when s: p='x

Remember, in pre-synthesis simulation you will see 1'bx as a result, but through synthesis the possibility of 1'bx is instead interpreted as a "don't care". If your code already achieved complete assignment without the initialization to 1b'x, then the initialization should have no affect.

‼️ Note 'x in Simulation vs. Synthesis 'x in a resulting in simulation output means that in simulation the value was undetermined. When a synthesizer analyzes code and determines that the code assigns 'x, it interprets it as a don't care and may optimizes according to implementation cost.

• The combinational erasure test works for internal combinatorial values computed in edge-selective-trigger blocks.
• Setting combinatorial values to 'x at code entry may help identify issues in pre-synthesis simulation
• In the following code, does that combinatorial erasure have an effect?

always @ (posedge clk)
begin

 y <= _y;
 _y = ~(a&b);
end

always @ (posedge clk)
begin
 _y = 1’bx;
 y <= _y;
 _y = ~(a&b);
end

❌ fails test

always @ (posedge clk)
begin

 _y = ~(a&b);
 y <= _y;
end

always @ (posedge clk)
begin
 _y = 1’bx;
 _y = ~(a&b);
 y <= _y;
end

✔️ passes test

module littleloop(input clk,input a,input b,output reg y);
   always @ (posedge clk)
     begin: label
        reg _y;
        y <= _y;
        _y = ~(a&b);
     end
endmodule

module littlecorrection(input clk,input a,input b,output reg y);
   always @ (posedge clk)
     begin: label
        reg _y;
        _y = ~(a&b);
        y <= _y;
     end
endmodule

Module with Enable:

• The following modules produce the same result, with feedback from the register. Some give an explicit name to the net attached to the register's data input as _y.

module enableV1(input clk,input en,input d,output reg y);
   always @ (posedge clk) begin: label
        reg _y;
        if (en) begin
           _y=d;
        end else begin
           _y=y;
        end

        y <= _y;

     end
endmodule

module enableV2(input clk,input en,input d,output reg y);
   always @ (posedge clk) begin: label
      reg _y;
      if (en) begin
        _y=d;\\
      end



      y <= _y;

   end
endmodule

module enableV3(input clk,input en,input d,output reg y);
   always @ (posedge clk)
     begin: label

        if (en) begin
           y<=d;
        end
     end
endmodule

module enableV3(input clk,input en,input d,output reg y);
   always @ (posedge clk)
     begin: label
        logic _y;
        if (en) begin
           _y = d;
           y<=_y;
        end
     end
endmodule

We will classify traditionally coded loops in procedural code by how they are expected to be interpreted by synthesizers.

• Static Loops: Number if iterations defined at compile time.
  • Could directly perform finite loop unrolling
• Often synthesizers cannot convert non-static loops to combinatorial circuit.
• Dynamic-loops are those for which determination of the number of loop iterations required is determined at run-time, usually because the number of loops is determined by a run-time variable.
• In the example below, the condition that is checked before every iteration is dependent on assignments within the body of the loop.

• Furthermore, the multiple data movements are problematic

  While-like Loop:

  temp=datain;
  count =0;
  for (index=0;|temp;index=index+1) begin
    if temp[0]==1 (count=count +1) begin
      temp = temp>>1;
    end
  end


• The previous code can be rewritten to have well-defined static loop count and no implied data movement. The constant 8 sets the statically defined loop count.

  count =0;
  for(index=0;index<8;index=index+1) begin
    if temp[index]==1 (count=count +1);
  end


!!! Tip What can and cannot be synthesized depends on the synthesizer The logic function is not fundamentally excluded from mapping to cominational hardware, as seen in the next example. So, while this code might not be synthesizable by every synthesizer today, others might be able to analyze the code and interpret the combinational hardware function successfully. Also what a given synthesizer can't do today, it may be able to do tomorrow. Your synthesizer should provide documentation on what constructs are allowed and it is worth checking yearly.

• Registered output logic (mix comb and seq.) should be separated to understand the dependencies. New variables may be introduced to denote the difference in signals before and after a register.

  module counter(input clk, output reg [3:0] count);
     parameter CNT_MAX=11;
     always @ (posedge clk) begin
        if (count == CNT_MAX)
          count <= 0;
        else
          count <= count + 1;
     end
  endmodule


• Feedback is perhaps unclear here. See rewrite below.

  module counter(input clk, output reg [3:0] count);
     parameter CNT_MAX=11;

     reg [3:0] count_prereg;
     always @ (posedge clk) begin
        count <= count_prereg;
     end
     always @ * begin: comb1
        reg flag;
        flag = (count == CNT_MAX);
        count_prereg = flag?0:(count+1); //could also have written if else using flag condition
     end
  endmodule




  Figure 4: counter

{ signal : [
  { name: "clk",        wave: "p...." ,                       node: '..af.' },
  { name: "count",      wave: "23456", data: "9 10 11 0 1" ,  node: '..bg.' , phase:-0.25},
  { name: "flag",       wave: "0.10.",                        node: '..c..' , phase:-0.5},
  { name: "count+1",    wave: "34567", data: "10 11 12 1 2",  node: '..d..' , phase:-0.75},
  { name: "count_prereg", wave: "34567", data: "10 11 0 1 2"  , node: '..e..' , phase:-1}
],
edge: ['a-~>b','b-~>c','b-~>d', 'c-~>e', 'd-~>e', 'f-~>g'],
config: { hscale: 2 },
}

• Feedback across clock cycles is acceptable.
• No feedback in combinational partition.

• The keyword disable may be used to implement a "break" from a loop. Consider this not yet covered and avoid for now if without further study.

• Note that you may be able describe a sequential circuit with non-static loops, but it is common to be NOT SUPPORTED by synthesizers. The following suggests a multi-cycle (multiple clock periods) operation.

  "while" loop with iteration synced to a clock:

  count=0;
  for(index=0;|temp;index=index+1) begin
    @(posedge clk);
    if temp[0]==1 (count=count +1)
    temp>>1;
  end


• This is a forward note, we'll learn about this more later in the course.

• It is typical to employ multi-cycle operations to reduce hardware through resource sharing (reuse of hardware in difference clock cycles) and reduce the critical path lengths.



• Implicit state machines to describe multi-cycle operations are not supported for synthesis: In the land of simulation one can model such behavior as follows, though it is usually not supported for synthesis

  always @ (posedge clk)
  begin
    temp=a*b;     //cycle 1: mutiply inputs a,b
    @(posege clk)
    y=temp*c;     //cycle 2: mutiply by *c
  end


• We'll want to understand how to implement multi-cycle operations using state machines to create variations based on the number of resources (e.g. multipliers, registers) affordable or desired, as factors like clock-cycle latency and throughput, power, clock freq., etc…

!!! Warning Multi-cycle computations Multi-cycle computations and rarely supported constructs above are shown here for completeness. Later lectures will formally introduce methods for such descriptions. Do not attempt to use these in synthesizable code without further study.

• Combinational hardware with data dependency loops cannot be synthesized
• Static for-loops can be synthesized by being unrolled
• Dynamic for-loops might not be understood by the synthesizer
• Dynamic for-loops with timing control might be synthesized as a "multicycle operation" or a state machine, but many synthesizers do not support this construct
• We'll want to formalize multi-cycle operations as state machines a little later in this course.

• Outside procedural blocks, keywords for and if are supported

:CUSTOM_ID: RANDOM-ID-catjy

• Combinatorial dependency loops cannot be synthesized
• Static for loops can be synthesized by being unrolled
• Dynamic for Loops may not be synthesizable
• Dynamic for Loops with timing control may be synthesized as a "multicycle operation" or a state machine.
• Repetitive/Patterned Structural Instantiations may be done with for…generate loops
• We'll want to formalize multi-cycle operations as state machines.

A conditional addition such as

if temp[0]==1'b1 (count=count +1);

are often synthesized with an adder, as in

count=count+temp[0];

simplifying the circuity.

Does the for loop below represent a dynamic or static loop?

module myModule(a,...
input [4:0] a;

reg [29:0] thermocode;

integer i;


always ... begin
thermocode=0;
for(i=0; i<a;i++) begin
  thermocode[i]=1'b1;
end

end
..
endmodule

Hint1: Start by trying to unroll the loop iterations

thermocode[0]=1'b1
thermocode[1]=1'b1
thermocode[2]=1'b1
thermocode[3]=1'b1
..where to stop?

Where to stop is not obvious until a is known, which only happens at "run-time"

How to make the loop static?

Proposal 1: set a to a fixed value? * this would make the loop static but since a is an input from another module we want to keep the input

Next Hint: Can you predetermine the possible range of i, which is based on the range of a?

Responses:

• 2³⁰
• 0 to 31
• [0,a)
• 2⁵

Lets try to unroll the loop starting with the first iteration i=0.

i=0 involves setting thermocode[0]

When is thermocode[0] set to 1?

Ans: when a>0, resulting in thermocode[0]=a>0

thermocode[0]=a>0
thermocode[1]=a>1
thermocode[2]=a>2
thermocode[3]=a>3
thermocode[4]=a>4
thermocode[5]=a>5
thermocode[6]=a>6
thermocode[7]=a>7
thermocode[8]=a>8
thermocode[9]=a>9
thermocode[10]=a>10
...
thermocode[20]=a>20
thermocode[21]=a>21
thermocode[22]=a>22
thermocode[23]=a>23
thermocode[24]=a>24
thermocode[25]=a>25
thermocode[26]=a>26
thermocode[27]=a>27
thermocode[28]=a>28
thermocode[29]=a>29
//thermocode[30]=a>30 xx thermocode is only 30-bit
//thermocode[31]=a>31 xx thermocode is only 30-bit

We can realize that though a can go up to 29, the thermocode only includes 30 bits

Now, lets shorthand this long set of repetitive code as a static loop:

for(i=0; i<30;i++) begin
  thermocode[i]=a>i;
end

• So, should the original code be considered "synthesizable" or not?
• Answer:
  • depends on the synthesizer. The context in which the loop exists (here the context involves a bounded a) may be of importance, but may or may not be taken into account by the synthesizer.
  • Increasingly smart synthesizers can synthesize dynamic loops, but the designer should understand the equivalent static loop and the relationship to hardware.
