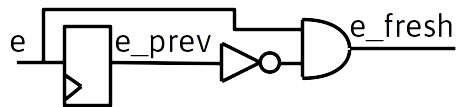

  • Transition detection condition for statemachines
  • Limitations of FSM
  • State Machine State Explosion

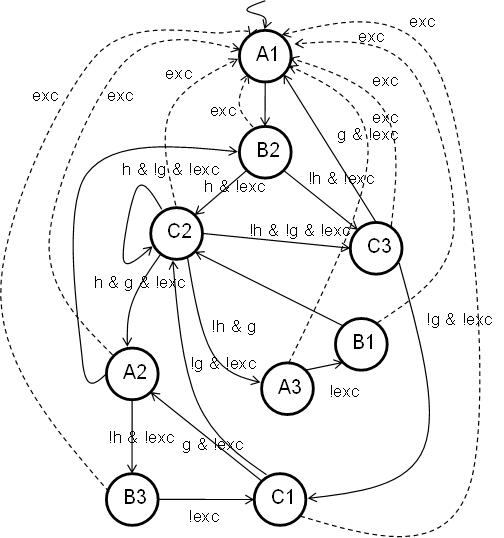

  • Global Exceptions
  • Global exception in software
  • Delay/Pause/Waiting with Extended State Register
  • Runtime Flexibility $^\circ$

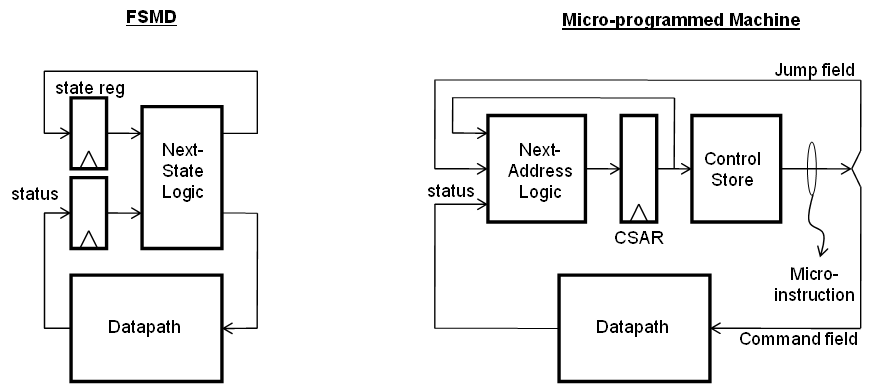

  • Microprogrammed Control $^\circ$
  • General Processor Control $^\circ$
  • Multi-Cycle Computations as FSMs
  • Algorithmic State Machine Diagram
  • FSM Optimizations
  • Rescheduling
  • Multicycle Path Timing Constraint (Forward Discussion) $^\circ$
  • Resource Sharing
  • Another Rescheduling Example
  • Yet Another Rescheduling Example
  • State Encoding
  • Unreachable States
  • Safe Finite State Machine (FSM) Implementation
  • Encoding Review
  • FSM Log File
  • Constraints/Compiler Directives
  • Xilinx FSM Constraints
  • Default case
  • state variables
  • Additional Synthesis Options and Directives

References

• $\dagger$ A Practical Introduction to Hardware Software Codesign Patrick Shaumont

• $\dagger$$\dagger$ The Verilog® Hardware Description Language, Donald E. Thomas (Author), Philip R. Moorby (Author) ISBN:9781402070891 Amazon Link

  • Examples for rescheduling

Slide Audience

• This presentation includes slides for both a graduate and undergraduate course, but with very different delivery, emphasis, and expectation. The slides marked in title with a superscript circle $^\circ$ are only for the graduate course and should be ignored for the presentation to undergradaute students.

Finite State Machine (FSM)

• Characterized by
  • A set of states
  • A set of inputs and outputs
  • A state transition function
  • An output function

Finite State Machine with Datapath

• A very common framework being described and implemented is a Finite State Machine with a Datapath: a designated data path controlled by signals designated FSM circuitry

Book’s FSM Hardware Implementation

†Shaumont

• suitable for implementation of algorithm with input and local variables stored in datapath register
• Hardware Implementation:
  • Current State held in a register
  • Any additional status information held in status register
  • Next-State and State Control Logic Determines next state and control signals based on registers
  • Datapath implements operations on data under control of sate control logic

Components of a modeling/description language for FSM $^\circ$

• • Wires and registers with specified precision and sign
  • Arithmetic and bitwise operations
  • Comparison Operations
  • Bitvector Operations (selecting multiple bits from a vector)
  • Selection
  • Indexed Storage
  • Organization and Precedence
  • Modules (Hardware)

Software and Hardware $^\circ$

• If available customizable hardware is fast, and control logic is difficult to describe, a good mix can be software for control and hardware for calculations. We will see later approaches that use a general purpose processor for control.

4 Rules of Proper FSMD $^\circ$

• The relate to describing a piece of hardware (or software) in a modeling language which is software.
  • 1 Neither registers nor signals can be assigned more than once during a clock cycle (covered in our Verilog code rules by the one-block assignment rule)
  • 2 No circular definitions exist between wires (i.e. no combinatorial logic loops)
  • 3 If a signal is used as an operand of an expression, it must have a known value in the same clock cycle
  • 4 All datapath outputs must be defined (assigned) during all clock cycles (in some cases a DontCare may be allowed)

Hardware/Software Partitioning $^\circ$

• For a general application, hardware is best for timing-critical (especially simultaneous processes and triggering events) while software is flexible and good for implementing algorithms with high complexity – in the sense of Kolmogorov complexity, the length of the code to implement the algorithm to produce some output given some inputs.
• Remember, timing-critical can refer to predictability of timing, not just how fast it can go (a real-time system is a system with timing guarantees)

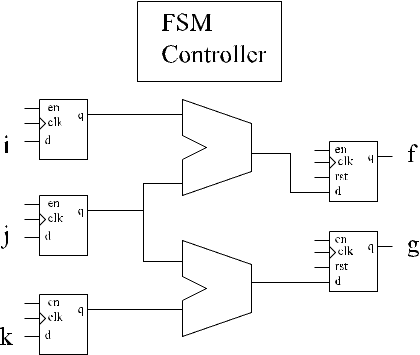

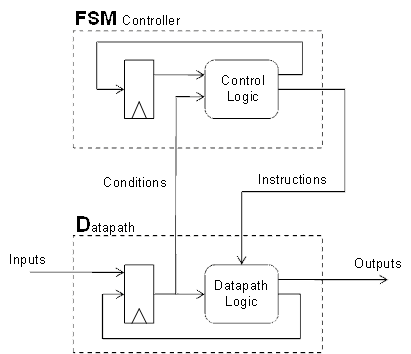

Control and Datapath Partitioning

Temporal Processes of statemachine

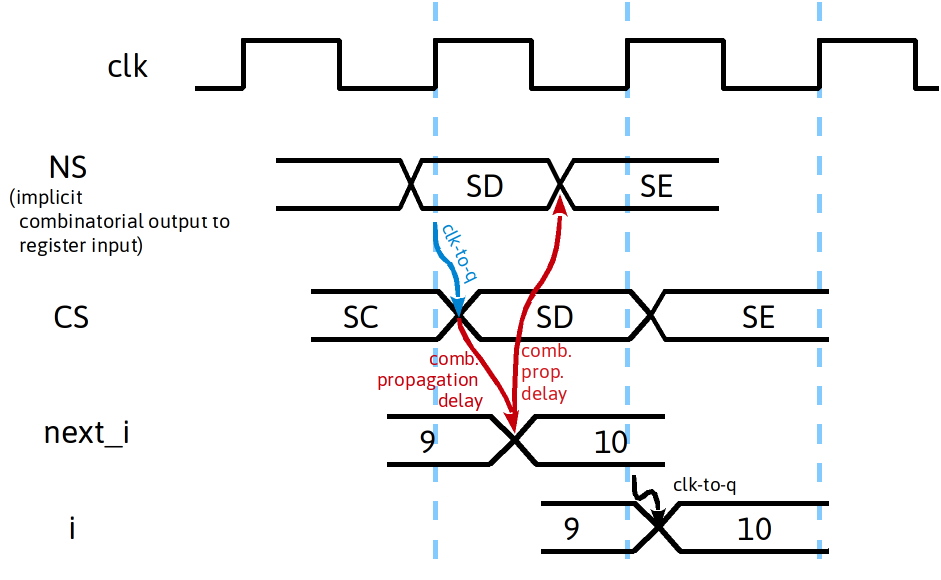

• Just after clock edge, state variables are updated. For controller this means that a state-transition is complete and state registers holds the new current state. For the data path, this means that the register variables are updated as a result of assigning (algebraic, boolean, logical, etc…) expressions to them.
• Controller FSM Combines the control state and the data-path state to evaluate the new next state for the, at the same time it will also select what instructions should be executed by the datapath
• The datapath FSM will evaluate the next-state for the state variables in the datapath, using the updated datapath state as well as the instructions received from the control FSM
• Just before the next clock edge, both the control FSM and the datapath FSM have evaluated and prepared the next-state value for the control state as well as the datapath state

†Shaumont

Controller FSM vs Datapath

Partition-and-Conquer Design

• Datapath operations can be encoded within the same procedural code as the state machine description or can be built separately.

• First consider partitioning.

  • Identify elements in the datapath from experience with traditional digital systems (e.g. communications modules, arithmetic modules, multiplexer’s and demultiplexers, registers and multi-word buffers, FIFOs, IP Cores etc…).
  • Identify the control signals required and the status/condition information required to make decisions on the control.

State Machine with High Amounts of Branching and Merging

• example find borg|car|cat|bot|bet|bit and output $\rm done$ flag where $\rm done$ is a registered output

• $\rm done$ flag logic cannot be coded directly based on CS and with the final states

• registered outputs in general must coded once per transistion, though the existance of one common default may save some lines of code

  always @ (posedge clk) begin
  CS<=failed; //defaults
  found<=0; done<=0; //defaults
  case (CS)
    ...
    recieved_a: if (input =='r') begin
                  CS<=recieved_r_for_car;
                  done<=1; found<=1;
                end else if (input =='t') begin
                  CS<=recieved_t;
                  done<=1; found<=1;
                end else begin
                  CS<=failed;  //covered by default
                  done<=1; found<=0;
                end
    ...


• output logic coded with use of next state NS

  CS<=failed;
  found<=0; done<=0; //defaults
  case (NS)
    recieved_t:        done<=1;found<=1;
    recieved_r_for_car:done<=1;found<=1;
    recieved_g:        done<=1;found<=1;
    failed:            done<=1;found<=0;
    default:           done<=0;
  ...


Exercise: consider adding bat to the word list.

Algorithmic Statemachines

• Encoding datapath operations WITHIN in the statemachine description with the controller instead of coding them in a separate block is sometimes better.
• It is common to see “algorithmic” statemachines described with control and computation embedded in the same procedural block. These are modules which perform complex computations over multiple cycles and require internal registers/memory.
• We’ll first focus on control state machines first, with an emphasis on timing and external status and control signals then discuss computational statemachines

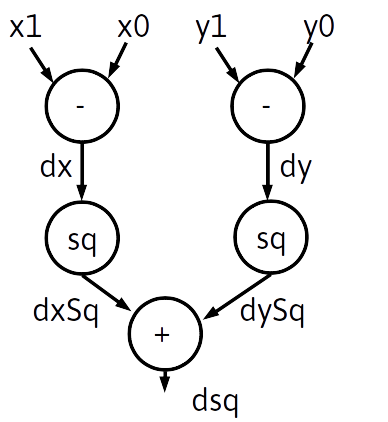

Data-Flow Graph

• Data-Flow Graphs represents dependencies among operations in the process of an arithmetic algorithm (more compact than a full state diagram).

• A algorithmic state machine performs one or more operations in a state (i.e. clock cycle) while satisfying the required order dependencies from the graph

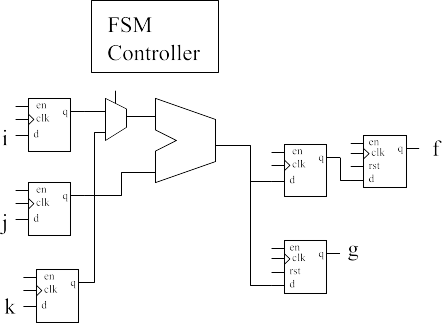

• Ex: Draw the Datapath and Identify Status and Control as well as Pre-Register data names



  case(CS)
  S0:begin
      dx <= x1-x0;
      busy<= 1;
     end
  S1:dy <= y1-y0;
  S2:dxSq <= dx*dx;
  S3:dySq <= dy*dy;
  S4:begin
      dsq <= dxSq+dySq;
      busy<= 0;
     end
  endcase




Number of Always Blocks

• I strongly support not using single-always-block implementations of statemachines, though the compactness of coding for presentation is one reason I used single-always-blocks in the code herein

• Note that most moderately complex logic coded within single edge-triggered always block is essentially the same as a single-always-block FSM, even if not formalized as a case-statement-based FSM description. Therefore I find it is useful to study the single-always-block style to understand what is being implemented in such code.

Extended State Registers

• At times we’ll want to include an extra register to store information that we don’t want to code as part of our primary state register.

  • Examples:
    • partial results in the process of a multi-cycle computation
    • saved results to provide at the output ports at a later time
    • status flags for events that should be remembered and used in later processing and state decisions
    • event counters
    • timing counters, to control timing without creating additional states

• These extended state registers are not necessarily represented by the number of drawn states state transition diagram or the primary coded state register, but formally they ARE part of the state of the system

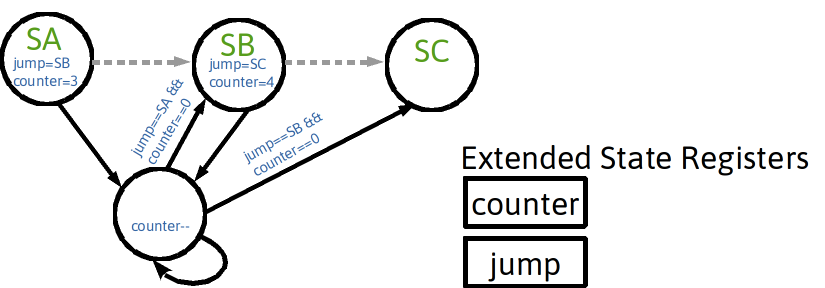

note the explicit state register and the additional extended state registers

Note that the output and status can be based one or more of the input, NS, and other state registers.

• Logic based on only the current state groups updates based on the current/source state, e.g. describes all output independently of transition away from the current state

  case (CS)
    S0: begin flag=0; end //unconditional, combinational output in S0
    S1: begin flag=1; end

• Including the input signals makes the output/update also input-dependant

  case (CS)
    S0: begin
      if (in==0)
        flag=0;   //conditional, combinational output while in S0,
                  //  updates immediately with input change
      else
        flag=1;   //conditional, combinational output while in S0,
                  //  updates immediately with input change
      end
    S1: begin flag=1; end

• Including NS as a dependency selects edges based on the destination state. Note that NS itself may depend on the input. This is useful if complex parts of the output logic have already been capture in the NS logic description.

  case (CS)
    S0: begin
      if (NS==S3)
        flag=0;   //conditional, combinational output while in S0,
                  //  updates immediately with input change through immediate NS change
      else
        flag=1;   //conditional, combinational output while in S0,
                  //  updates immediately with input change through immediate NS change
      end
    S1: begin flag=1; end

• Using a root case statement based on NS tends to organize updates based on the destination state (transitions into state). This is useful for registered output logic.

  case (NS)
    S0: begin flag=0; end // combinational output, update seen immediately
                          // with input update that selects destination state S0
    S1: begin flag=1; end

  case (NS)
    S0: begin
      if (CS==S3)
        flag=0;          // combinational output, update applied immediately
                         // with input update that selects destination state S0
                         // applies only if current state is S3
      else
        flag=1;
      end
    S1: begin flag=1; end

• Using NS useful for registered output logic.

  always @ (posedge clk) begin
    case (NS)
      S0: begin flag<=0; end //glitch-free update when CS becomes S0
      S1: begin flag<=1; end //glitch-free update when CS becomes S1


Registered Output for Partitioning and Timing

One of the advantages of registered output design is in design partitioning and addressing the timing of a design within each partition.

Registered Ouput Modules:

Assembled Registered Ouput Modules:

• Length of Combinatorial Paths are matched to those in the partitions

Irregular Modules:

Assembled Irregular Modules:

• Length of paths is determined by factors accross partitions
• Logic Optimizer and designer therefore have different perspectives of the design
• Output path has underspecified timing constraint that may need to account for delays of output

Control FSM Cycle Timing

• Control FSM are commonly required to implement timing based on cycles, reading of status signals in particular cycles, and generating control signals at the appropriate time

Fast and Slow Systems

Many issues will arise in using systems that operate at different speeds, or don’t operate in a predetermined fixed timing

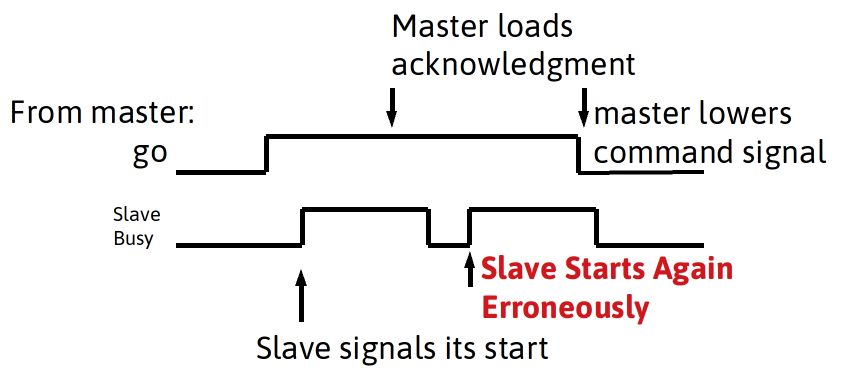

Most generally

• the master may assert a request until it is acknowledged
• commonly, if a request and an ack are asserted in the same cycle, then it is assume that the data is consumed

• for reading (e.g. results) the master may wait until a result is ready to read a response
  • a separate flag like done or data valid (presented for consumption) is common for this

Waiting – Conditional and Unconditional

• It is common to require one or both of
  • conditional waiting
  • unconditional waiting
• These can be used to implement
  • Fixed waiting – unconditionally wait a predetermined number of cycles
  • Minimum wait (Fixed followed by Conditional)
    • fix delay then wait for a condition based on external input to be satisfied. This is useful when interfacing with external “slow” entities that need time after being signaled to send back a response.

Implementation of Waits

Some Options:

• Add “top” level wait states to state machine in each place needed
• Use a counter
  • a) Use external counter ( implement as an external state machine) and interface to it
  • b) embed something like a counter in the coding of the state machine, thus creating substates using the counter as an extended state register.
• Create a single programmable wait state to jump to and return to from multiple states using a “jump” register extended state register

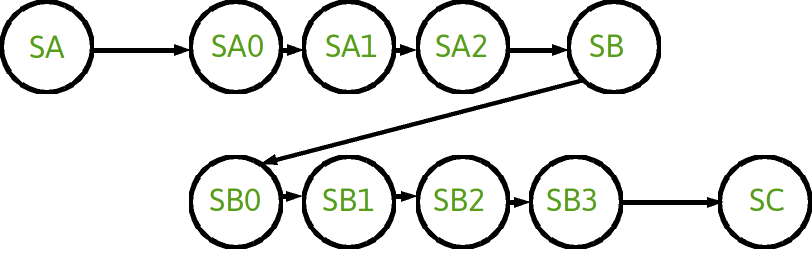

Unconditional Delay Using Extra States

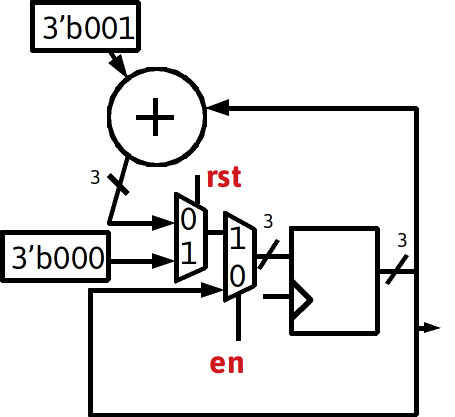

Unconditional Delay Using Extended State Register Variable : Counter

Minimal Pause: Delay + Conditional Exit Using An Extra Final Wait State (unconditional delay +conditional exit)

Another Varient:

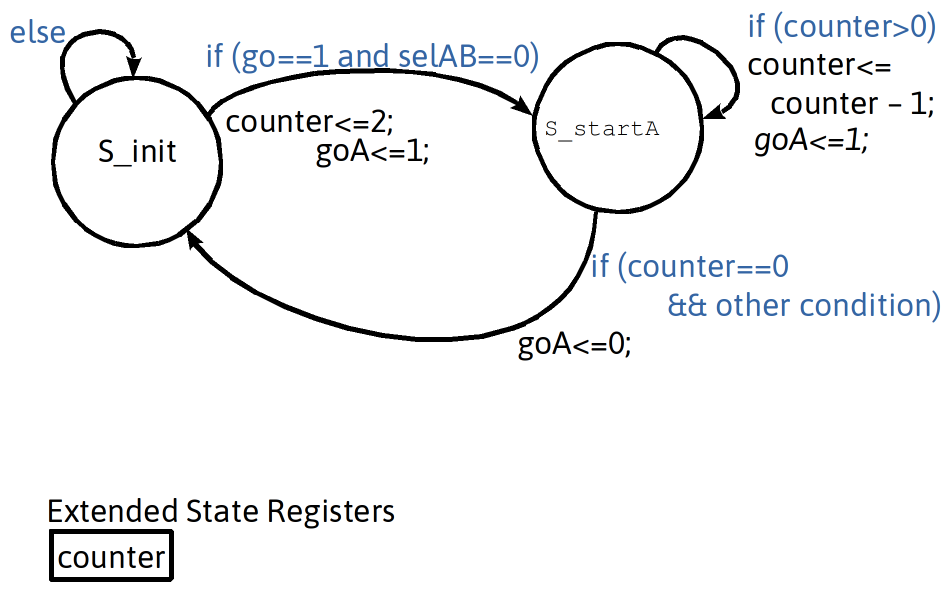

Minimum Wait: Delay + Conditional Exit Using Extended State Register Variable Counter

Programmable Wait State

• Explicit Top-Level States vs Programmable State
  • Explicit

  • Programmable


Thought Question

• Is it better to grow the state register or use a separate counter variable?
  • no simple universal answer

“For Loop” State Machine

• Extended-state registers can help implement loop behaviors
• Example: create outer loop with 10 iterations and inner loop with 5 iterations

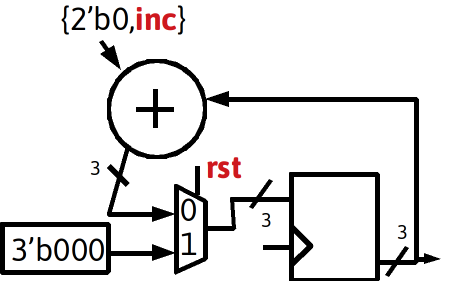

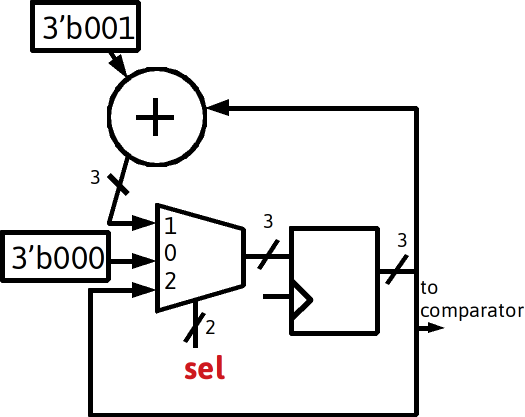

Drawing Possible Hardware

Realizations of i,j registers and support hardware

• After examination of the state diagram, three required behaviors are desired: $\rm Hold$, $\rm Increment$ , $\rm Load\ 0$
• A primary FSM will generate the control signals

• Note $\rm i$ would be the output of the register, the output from the register could be called ($\rm i\_next$ , $\rm \_i$, $\rm i\_comb$, $\rm i\_int$, $\rm i\_prereg$)

class discussion: timing diagram

Combinatorial vs Sequential Pitfalls

• Wrongly using the output of a register instead of the input can be a pitfall when using single-always-block (registered outputs) and extended state registers

SA:
  i<=0; ...
SD:
  i <= i+1;
  if (i<10)
    CS<=SA;
  else
    CS<=SE;
   ….

SD:
  next_i = i+1;
  if (next_i<10)
    CS<=SA;
  else
    CS<=SE;
  i <= next_i;
   ….

Tweaking Question ( a question asked in class)

• Could one just change i<10 to i<9?

SA:
  i<=0; ...
SD:
   i <= i+1;
   if (i<10) CS<=SA;
   else CS<=SE;
    ….

SA:
  i<=0; ...
SD:
   i <= i+1;
   if (i<9) CS<=SA;
   else CS<=SE;
    ….

• Perhaps yes, but the reasoning is important.
• Lets say you are working on a class HW project – if you make the wrong version, run a simulation or debug in FPGA hardware, notice that one extra loop is performed and “tweak” the code to “just make it work” without understand the options, than that would not be a good reason. You want to be cognizant of and understand the different choices, then you have the knowledge and understanding to select the most appropriate implementation. Furthermore, at some point your code will be very large and systems will be complex – expecting to make many tweaks is not a reliable approach. You want to learn to get as much right the first time as possible.
• I’d argue that the tweaked version is less readable, but I could not say it is wrong.

Detecting Signal Change in Single-Clock-Domain Synchronous Logic

• When looking for a change on an signal, avoid a careless temptation to “detect” edges using edge specifiers if it is not warranted to create a new clock domain. Ex:

  always @ (posedge e)
    e_counter <= e_counter + 1;


• Consider saving a previous version of the signal in a register, and using both present and previous input values to detect a transition:

always @ (posedge clk) begin
  if (~e_prev & e) e_counter <= e_counter + 1;
  e_prev<=e;
end

which is the same as

always @ (posedge clk)begin
  e_prev<=e;
  if (~e_prev & e) e_counter <= e_counter + 1;
end

One Reaction per Transition

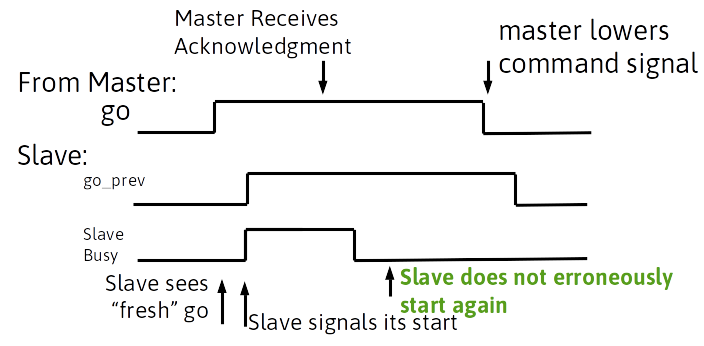

• A slave device commonly starts processes based on a start signal from a master. A slave process may be fast or slow compared to a master. For instance, an instruction processor acting as a master controlling a slave through general I/O ports. Driven by software, it the processor may require many clock cycles to respond (software bit-banging and handshaking can be slow).
• Considering a slow master applying a command signal, yet requiring many clock cycles to respond to a handshaking signal from a slave. The slave might falsely initiate a second round of activity if the command is asserted too long.

Transition detection condition for statemachines

• To alter the behavior, a slave state machine can instead look for a change in the signal in two consecutive clock cycles

• Saving the previous input value:

           always @ (posedge clk) go_prev<=go;


• using a fresh high as a condition within a statemachine

           (go==1 && go_prev==0)


Limitations of FSM

• FSM typically lack any hierarchy. There is no way to connect details of state-machines leading to state explosion. Otherwise, a hierarchy of states is quite useful for organizing an algorithm.

State Machine State Explosion

†Shaumont

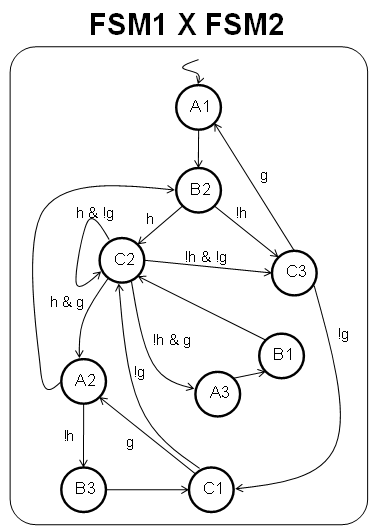

• Consider two state machines. Maybe one captures user input like desired temperature, it has states, inputs and outputs appropriate to perform that task. Perhaps the other controls a heating element based on measured and desired temperature. Separated, they may be fairly simple, but what happens when they are described as a single, flat state machine?
• A multiplicative effect in the number of states. Two three-state FSMs became one nine-state FSM
• This motivates partitioning into multiple state machines in hardware design

Global Exceptions

• Now, see what happens if a single new condition, a universal exception must be added.
• A dramatic result from only one new condition. Readability and perhaps feasibility of mentally managing the FSM is severely impacted.

†Shaumont

†Shaumont

Global exception in software

• A single if statement can be added, taking advantage of the hierarchy of logic embedded in code.

switch(current_state){
 case A: …
 case B: …
 case C: …
 case D: …
}

if (exception){
  do this
}else{
  switch(current_state){
   case A: …
   case B:
   case C:
   case D:
}

Delay/Pause/Waiting with Extended State Register

• Think about the delay examples given earlier using a counter. The counter was implementing one form of hierarchical states.
• Consider waiting for an acknowledgment signal for $2^{20}$ clock cycles. This would require ~1 Millon states with the condition to move to the next state or proceed to end state if acknowledge was received.

Runtime Flexibility $^\circ$

• The rigid implementation of hardware and the limited representation of FSMs do not make it very flexible model, especially if one considers run-time flexibility

Microprogrammed Control $^\circ$

• Rigid next-state logic is replaced by a rigid next-address logic with a programmable control store.
• Complex designs make require using/creating some form of compiler and a custom language

†Shaumont

General Processor Control $^\circ$

• Next step towards generalization is to use a general purpose processor

  • A number of models exist for doing that, from implementing custom hardware as a slave coprocessor that implements hardware-accelerated instructions (or functions) to treating the custom hardware modules and processor as cooperative peer components.
  • Interfacing is another issue and choices depend on rigidness of interfaces and which should be the master or slave.
    • Common choices:
      • Confirm hardware design to be able attach to processor bus
      • Write a hardware wrapper to attach hardware to system bus
      • Use general IO to interface processor to hardware
    • With respect to the processor, need to decide on interrupt or polling interface. Platforms should provide options for both for all the choices above

Multi-Cycle Computations as FSMs

Algorithmic State Machine Diagram

An introduction to informal ASM Diagrams

• ASM Chart Elements

  • State Box
    • State Name (required)
    • State Encoding (optional)
    • Register Updates (denoted with <=)
    • Moore Machine Output Updates (combinational logic)
  • Conditional Rounded Box
    • Register Updates (optional, denoted with <=)
    • Mealy Machine Output Updates (optional, combinational logic)
  • Decision Diamond
    • Test Condition
    • Exit Paths
      • Two for if
      • two or more for case

• General Notes:

  • Well-defined initial state, such as single entry point with actionless path to one initial state
  • Multiple exit paths may exist
  • Note that registers may only be updated once per clock cycle,
    • Improper to represent multiple updates in one cycle
  • Commonly outputs are written just by name (rather than out=1), and it is assumed the unspecified outputs default to 0

Example Euclid GCD:

function gcd(a, b)
    while (a != b)
        if a > b
            a = a − b
        else
            b = b − a
    return a

FSM Optimizations

• As we are designing Multi-Cycle computations, we may consider two
  optimizations:
  • Rescheduling – moving internal operations to other states
  • Resource sharing – utilizing same component in multiple states
• The following examples based on or borrowed from $\dagger$$\dagger$ Thomas&Moorby

Module Header

module FSM_opt(
    output reg [7:0] f,
    input clk,
    input wire [7:0] i,
    input wire [7:0] j,
    input wire [7:0] k,
    input rst     );

reg [7:0] CS;
reg [7:0] i_int,j_int,k_int,p,m;

localparam S_0 = 8'b00000000;
localparam S_1 = 8'b00000001;
localparam S_2 = 8'b00000010;

always @ (posedge clk) begin
  if (rst) begin
    CS<=S_0;
    f<=0;
  end else begin
    case(CS)
      S_0: begin
                i_int<=i;
                j_int<=j;
                k_int<=k;
                CS<=S_1;
           end
      S_1: begin
                p<=i_int+j_int;
                CS<=S_2;
           end
      S_2: begin
                m=p*j_int;
                f<=m*k_int;
                CS<=S_0;
            end
    endcase
  end
end
endmodule

• Multi-cycle computation:
  Note, the single-block style here was used since the state transition sequence is straightforward. Also, the data path is combined with the controller.
  We are not worried about “code bloat” from having to code each output on every transition.
  Instead of concentrating on
  timing coincidence of state and outputs
  vs
  coding coincidence of state and outputs,
  we are focused on the
  coincidence of states and computations. In this single block style the computation performed and resources required for each each are clear, though the corresponding output of each computation is seen and can be used on the cycle following the corresponding state indicated in the state register. In other words, we are interested in what update to registers is being computed and prepared in each state.

Rescheduling

always @ (posedge clk) begin
  if (rst) begin
    CS<=S_0;
    f<=0;
  end else begin
    case(CS)
      S_0: begin
                i_int<=i;
                j_int<=j;
                k_int<=k;
                CS<=S_1;
           end
      S_1: begin
                p_int=i_int+j_int;
                m<=p_int*j_int;
                CS<=S_2;
           end
      S_2: begin
                f<=m*k_int;
                CS<=S_0;
            end
    endcase
  end
end
endmodule

Some synthesizers may do similar types of rescheduling for you.
Xilinx tools command to perform a “retiming”: https://www.xilinx.com/support/answers/65410.html

Multicycle Path Timing Constraint (Forward Discussion) $^\circ$

In the following version, all compuation is performed in the S_2 cycle.

always @ (posedge clk) begin
  if (rst) begin
    CS<=S_0;
    f<=0;
  end else begin
    case(CS)
      S_0: begin
                i_int<=i;
                j_int<=j;
                k_int<=k;
                CS<=S_1;
           end
      S_1: begin
                CS<=S_2;
           end
      S_2: begin
                p=i_int+j_int;
                m=p*j_int;
                f<=m*k_int;
                CS<=S_0;
            end
    endcase
  end
end
endmodule

In this specific case we can provided a relaxed timing constraint for the paths from the output of the registers for i,j,k to the input of f. We will later learn about manipulation constraints for the synthesizer to allow for multi-cycle paths, but for now we assume that all combinational chains must complete work within a clock cycle.

Resource Sharing

Reference Computation Module for discussion

Head

module FSM_opt(
    output reg [7:0] f,
    output reg [7:0] g,
    input clk,
    input wire [7:0] i,
    input wire [7:0] j,
    input wire [7:0] k,
    input rst
    );
reg [7:0] CS;
reg [7:0] i_int,j_int,k_int;

localparam S_0 = 8'b00000000;
localparam S_1 = 8'b00000001;
localparam S_2 = 8'b00000010;

Body

always @ (posedge clk) begin
  if (rst) begin
    CS<=S_0;
    f<=0;
    h<=0;
  end else begin
    case(CS)
      S_0: begin
        i_int<=i;
        j_int<=j;
        k_int<=k;
        CS<=S_1;  end
      S_1: begin
        CS<=S_2;  end
      S_2: begin
        f<=i_int*j_int;
        h<=j_int*k_int;
        CS<=S_0;  end
    endcase
  end
end
endmodule

Suggested RTL

Alternative RTL with lower gate count

always @ (posedge clk) begin
  if (rst) begin
    f<=0; g<=0;
    CS<=S_0;
  end else begin
    case(CS)
      S_0: begin
        i_int<=i;
        j_int<=j;
        k_int<=k;
        CS<=S_1;  end
      S_1: begin

        CS<=S_2;  end
      S_2: begin
        f<=i_int*j_int; //**
        g<=j_int*k_int;
        CS<=S_0;  end
    endcase
  end
end
endmodule

Explicitly coding the rescheduling so that only one multiply is performed per cycle is simple and seen in the next code. However, this doesn’t ensure resource sharing as shown in the figure with one a single multiplier.

Alt. Module Body

always @ (posedge clk) begin
 if (rst) begin
   f<=0; g<=0;
   CS<=S_0;
 end else begin
  case(CS)
   S_0: begin
    i_int<=i;
    j_int<=j;
    k_int<=k;
    CS<=S_1;  end
   S_1: begin
    f_int<=i_int*j_int; //**moved to here**//
    CS<=S_2;  end
   S_2: begin
    f<=f_int;   //*timed output load*//
    g<=k_int*j_int;
    CS<=S_0;  end
  endcase
 end
end
endmodule

• Suggesting Resource Sharing guides the synthesizer to reuse hardware for operations at multiple places in the code
• The coding method depends on the synthesizer tool: the following code is more likely interpreted as resource sharing since the multiplier result is always written to the same variable

module fsm(f,g,i,j,k,rst,clk);
input [7:0] i,j,k;
output reg [7:0] f,g;
input rst,clk;
reg [3:0] CS;
localparam S_0=0,S_1=1,S_2=2;

always @ (posedge clk) begin:named
 reg [7:0] i_int,j_int,k_int,f_int;
 reg [7:0] mult_out;
 mult_out = 8'bx;
 if (rst) begin
   f<=0; g<=0;
   CS<=S_0;
 end else begin
  case(CS)
   S_0: begin
    i_int<=i;
    j_int<=j;
    k_int<=k;
    CS<=S_1;  end
   S_1: begin
    mult_out=i_int*j_int;  //**
    f_int<=mult_out;       //**
    CS<=S_2;  end
   S_2: begin
    f<=f_int;
    mult_out=k_int*j_int;  //**
    g<=mult_out;           //**
    CS<=S_0;  end
  endcase
 end
end
endmodule

• Another option is to manually extract the multiplier out of the edge-triggered code and write datapath logic explicitly for the multiplier paired with a mux along with a state machine to change the inputs

Multiplier input controlled using an explicit mux in the datapath:

module fsm(f,g,i,j,k,rst,clk);
input [7:0] i,j,k;
output reg [7:0] f,g;
input rst,clk;
reg [3:0] CS;
localparam S_0=0,S_1=1,S_2=2;

wire mult_a_sel;
wire [7:0] mult_out,mult_a,mult_b;
assign mult_out=mult_a * mult_b;
assign mult_a=mult_a_sel?k_int,i_int;
assign mult_b=j_int;


always @ (posedge clk) begin:named1
  i_int<=_i_int;
  j_int<=_j_int;
  f_int<=_k_int;
  f_int<=_f_int;
  g<=_g;
  f<=_f;
  CS<=NS;
end

always_comb begin:named2
 reg [7:0] i_int,j_int,k_int,f_int;
 if (rst) begin
  _i_int=8'bx; //avoid unessisary enables or resets
  _j_int=8'bx;
  _k_int=8'bx;
  _f_int=8'bx;
  _g=0;
  _f=0;
   NS<=S_0;
   mult_a_sel=1'bx;
 end else begin
  _i_int=i_int;
  _j_int=j_int;
  _k_int=i_int;
  _f_int=f_int;
  _g=g;
  _f=f;
  mult_a_sel=1'bx;
  case(CS)
   S_0: begin
    _i_int=i;
    _j_int=j;
    _k_int=k;
    NS=S_1;  end
   S_1: begin
    mult_a_sel=0; //mult_out=i_int*j_int; //**
    _f_int=mult_out;       //**
    NS=S_2;  end
   S_2: begin
    _f=f_int;
    mult_a_sel=1; // mult_out=k_int*j_int; //**
    _g=mult_out;          //**
    NS=S_0;  end
  endcase
 end
end
endmodule

• Another variation with the mux logic embedded within the state machine

Multiplier input controlled using an implied mux in the datapath, requires that data to be passed through the statemachine description block:

module fsm(f,g,i,j,k,rst,clk);
input [7:0] i,j,k;
output reg [7:0] f,g;
input rst,clk;
reg [3:0] CS;
localparam S_0=0,S_1=1,S_2=2;

wire [7:0] mult_out,mult_a,mult_b;
reg [7:0] mult_a;                  //**
assign mult_out=mult_a * mult_b;
assign mult_b=j_int;


always @ (posedge clk) begin:named1
  i_int<=_i_int;
  j_int<=_j_int;
  f_int<=_k_int;
  f_int<=_f_int;
  g<=_g;
  f<=_f;
  CS<=NS;
end

always_comb begin:named2
 reg [7:0] i_int,j_int,k_int,f_int;
 if (rst) begin
  _i_int=8'bx; //avoid unessisary enables or resets
  _j_int=8'bx;
  _k_int=8'bx;
  _f_int=8'bx;
  _g=0;
  _f=0;
   NS=S_0;
  mult_a=8'bx; //**
 end else begin
  _i_int=i_int;
  _j_int=j_int;
  _k_int=i_int;
  _f_int=f_int;
  _g=g;
  _f=f;
  mult_a=8'bx; //**
  case(CS)
   S_0: begin
    _i_int=i;
    _j_int=j;
    _k_int=k;
    NS=S_1;  end
   S_1: begin
    mult_a=i_int;          //**
    _f_int=mult_out;
    NS=S_2;  end
   S_2: begin
    _f=f_int;
    mult_a=k_int;         //**
    _g=mult_out;
    NS=S_0;  end
  endcase
 end
end
endmodule

Another Rescheduling Example

…
always @ (posedge clk)
…
  case (CS)
  S_0:begin q<=r+s;    CS<=S_1;  end
  S_1:begin            CS<=S_2;  end
  S_2:begin qout<=q+5; CS<=S_0;  end
…

…
always @ (posedge clk)
…
  case (CS)
  S_0:begin q<=r+s;  CS<=S_1; end
  S_1:begin q<=q+5;  CS<=S_2; end
  S_2:begin qout<=q; CS<=S_0; end
…

Yet Another Rescheduling Example

Code Provided to the Synthesizer

input  [7:0] i,j,k;
output [7:0] f,h;
reg    [7:0] f,g,h,q,r,s;
always @ (posedge clk)
…
  case (CS)
  S_0:begin r<=i*2; s<=j+j;           end
  S_1:begin f<=i+j; g<=j*23; CS<=S_1; end
  S_2:begin h<=f+k;          CS<=S_2; end
  S_3:begin f<=f*g; q<=r*s;  CS<=S_0; end
  ...
…

• FSM Synthesizers can automatically try variations maintain input and output timing:

  • Movement of q=r*s using a new temporary register q_int:

    S_0:begin r<=i+i; s<=j*2;                   end
    S_1:begin f<=i+j; g    <=j*23;    CS<=S_1;  end
    S_2:begin h<=f+k; q_int<=r*s;     CS<=S_2;  end //**
    S_3:begin f<=f*g; q    <=q_int;   CS<=S_0;  end //**


  • Movement of f*g: using an exisinting working register g:

    ...
    S_0:begin r<=i+i; s<=j*2;           end
    S_1:begin f<=i+j; g<=j*23; CS<=S_1; end
    S_2:begin h<=f+k; g<=f*g;  CS<=S_2; end //**
    S_3:begin f<=g;   q<=r*s;  CS<=S_0; end //**
    ...


• Invalid rearrangement for i+j+k consuming input k in state S_1 instead of S_2 and vice versa for input j unless the optimizer tool or designer can otherwise determine that i and j do not change in those time cycles. Input timing must be maintained just like output updates.

  ...
  case (CS)
  S_0:begin r<=i+i; s<=j*2;           end
  S_1:begin f<=i+k; g<=j*23; CS<=S_1; end //**
  S_2:begin h<=f+j;          CS<=S_2; end //**
  S_3:begin f<=f*g; q<=r*s;  CS<=S_0; end
  ...


State Encoding

• The state encoding effects the size of the decoder, speed, dependent logic optimization, etc.

• Encodings supported by Xilinx: http://www.xilinx.com/support/documentation/sw_manuals/xilinx11/xst.pdf

  • Auto: In this mode, XST tries to select the best suited encoding algorithm for each FSM.
  • One-Hot: One-hot encoding is the default encoding scheme. Its principle is to associate one code bit and also one flip-flop to each state. At a given clock cycle during operation, one and only one bit of the state variable is asserted. Only two bits toggle during a transition between two states. One-hot encoding is very appropriate with most FPGA targets where a large number of flip-flops are available. It is also a good alternative when trying to optimize speed or to reduce power dissipation.
    00000001
00000010
00000100
    …
    01000000
10000000
  • Gray: Gray encoding guarantees that only one bit switches between two consecutive states. It is appropriate for controllers exhibiting long paths without branching. In addition, this coding technique minimizes hazards and glitches. Very good results can be obtained when implementing the state register with T flip-flops.
    00000000
00000001
00000011
00000010
00000110
    …
  • Compact: Compact encoding consists of minimizing the number of bits in the state variables and flip-flops. This technique is based on hypercube immersion. Compact encoding is appropriate when trying to optimize area.
  • Johnson: Like Gray, Johnson encoding shows benefits with state machines containing long paths with no branching.
    00000000
00000001
00000011
00000111
    …
    11111111
11111110
11111100
11111000
    …
    10000000 rollover to all zeros

• Sequential: Sequential encoding consists of identifying long paths and applying successive radix two codes to the states on these paths. Next state equations are minimized.

• Speed1: Speed1 encoding is oriented for speed optimization. The number of bits for a state register depends on the particular FSM, but generally it is greater than the number of FSM states.

• User: In this mode, XST uses original encoding, specified in the HDL file. For example, if you use enumerated types for a state register, then in addition you can use the ENUM_ENCODING constraint to assign a specific binary value to each state. Please refer to “Design Constraints” chapter for more details.

• RAM-Based Finite State Machine (FSM) Synthesis: Large Finite State Machine (FSM) components can be made more compact and faster by implementing them in the block RAM resources provided in Virtex® devices and later technologies. FSM Style (FSM_STYLE) directs XST to use block RAM resources for FSMs.

Unreachable States

• One of the benefits of extracting FSMs, is that additional analysis and design checks are available:
  “XST can detect unreachable states in an FSM. It lists them in the log file in the HDL Synthesis step.”

Safe Finite State Machine (FSM) Implementation

• XST can add logic to your Finite State Machine (FSM) implementation that will let your state machine recover from an invalid state. If during its execution, a state machine enters an invalid state, the logic added by XST will bring it back to a known state, called a recovery state. This is known as Safe Implementation mode.
• By default, XST automatically selects a reset state as the recovery state. …
• This feature is useful in system susceptible to corruption or as a way to handle undefined power-on initialization

Encoding Review

• One-hot encoding is good for speed and simplicity of state decoding logic and state incrementing.

• More compact codes such as standard binary encoding generally require a smaller state state register than one-hot encoding at the possible cost of size and speed.

  • But this depends on the density of combinatorial logic vs. registers the supporting HW platform and in the design.
  • FPGAs have many registers and so the cost of additional combinatorial logic may large compared to the savings from needing less registers.

• Codes where only one or two bits change at a time in the state register may be beneficial.

  • Less transitions may lead to less power depending on overall design, e.g. if stage register output connects to a high-capacitance load (high-fanout)
  • Can minimize the chance of metastability errors (such as systems with tight timing, or radiation vulnerability).
  • These codes may also minimize logic glitches.

FSM Log File

• The XST log file reports the full information of recognized Finite State Machine (FSM) components during the Macro Recognition step. Moreover, if you allow XST to choose the best encoding algorithm for your FSMs, it reports the one it chose for each FSM. \ As soon as encoding is selected, XST reports the original and final FSM encoding. If the target is an FPGA device, XST reports this encoding at the HDL Synthesis step. If the target is a CPLD device, then XST reports this encoding at the Low Level Optimization step.

Log File Example

Synthesizing Unit <fsm_1>.
Related source file is "/state_machines_1.vhd".
Found finite state machine <FSM_0> for signal <state>.
------------------------------------------------------
| States         | 4                 |
| Transitions    | 5                 |
| Inputs         | 1                 |
| Outputs        | 4                 |
| Clock          | clk (rising_edge) |
| Reset          | reset (positive)  |
| Reset type     | asynchronous      |
| Reset State    | s1                |
| Power Up State | s1                |
| Encoding       | automatic         |
| Implementation | LUT               |
------------------------------------------------------
Found 1-bit register for signal <outp>.
Summary:
inferred 1 Finite State Machine(s).
inferred 1 D-type flip-flop(s).
Unit <fsm_1> synthesized.
========================================================

HDL Synthesis Report
Macro Statistics
# Registers : 1
1-bit register : 1
========================================================
========================================================
* Advanced HDL Synthesis *
========================================================
Advanced Registered AddSub inference ...
Analyzing FSM <FSM_0> for best encoding.
Optimizing FSM <state/FSM_0> on signal <state[1:2]>
with gray encoding.
-------------------
State | Encoding
-------------------
   s1 | 00
   s2 | 01
   s3 | 11
   s4 | 10
-------------------
=======================================================
HDL Synthesis Report
Macro Statistics
# FSMs : 1
=======================================================

Constraints/Compiler Directives

• Most synthesizers support various instructions to modify synthesis behavior

  • http://www.xilinx.com/itp/xilinx8/books/data/docs/xst/xst0064_8.html#wp255324

• Many options can be applied globally or on a per module instance or even per block level.

• Some are entered in constraint files, as a command-line option or inline via special commented tags:

• The comment below is an example of a synthesizer directive / inline-constraint:

  casex select // synthesis full_case
  4'b1xxx: res = data1;
  4'bx1xx: res = data2;
  4'bxx1x: res = data3;
  4'bxxx1: res = data4;


Xilinx FSM Constraints

• Xilinx Synthesis Constraints for state machines
  • http://www.xilinx.com/itp/3_1i/data/fise/xst/chap02/xst02014.htm
• Related constraints are:
  • fsm_extract
    • determines if state machines are detected/extracted
    • http://www.xilinx.com/itp/xilinx7/books/data/docs/cgd/cgd0093_54.html
  • fsm_encoding
    • can set state encoding globally or per-instance
    • http://www.xilinx.com/itp/xilinx7/books/data/docs/cgd/cgd0092_53.html
  • fsm_fftype
    • use D or toggle flip flops for state register
    • http://www.xilinx.com/itp/xilinx4/data/docs/cgd/f8.html
  • enum_encoding
    • sets encoding when fsm_extract is used to select user
    • http://www.xilinx.com/itp/xilinx4/data/docs/cgd/e3.html

Default case

• You should not automatically add default case to synthesize a FSM since the logic has to cover many unnecessary states

  • Check documentation for your synthesizer’s behavior
  • Special effort may be required to have the synthesizer ignore the default case yet allow logging in simulation: http://www.trilobyte.com/pdf/golson_snug94.pdf:

  // synopsys translate_off
  default: \$display(“He’s dead, Jim.”) ;
  // synopsys translate_on


state variables

• Explicit States are stored in the state register, but other registers for variables can exist serving as extended state variables
• In-class example given
• Technically, every register in a digital system is a part of the state. What variables you decide to think of as state in your state diagram and what is coded in the CS register and used in the case statement is up to you.
• When there are many similar states, sometimes combining them in code and adding a register for a variable makes sense. This can reduce the state decoding and state logic and may make the code more maintainable and easier to read.

Additional Synthesis Options and Directives

http://www.xilinx.com/support/documentation/sw_manuals/xilinx11/pp_db_xst_hdl_synthesis_options.htm

Example state machine code if time allows

• Example FFT Data Flow HW solution depicting extended state registers and state repetition

  https://eclipse.umbc.edu/robucci/cmpe415/attachments/hw6/hw6.pdf

  https://eclipse.umbc.edu/robucci/cmpe415/attachments/hw6/fft_state_machine.v
