Lecture 09
Ch 6 (part II) Microprogrammed Architectures

Table of Contents

• Lecture 09
  Ch 6 (part II) Microprogrammed Architectures
  • Table of Contents
  • References
  • FSMD vs Microprogram-Controlled Machine
  • Microprogrammed Control
  • Addressing Limitations of FSMD
  • Microinstruction Encoding
  • Jump Field
  • Command Field
  • Microprogrammed Datapath
  • Example Datapath Controller
  • Writing Microprograms
  • Micro-program Interpreters
  • A microprogram Interpreter
  • Microprogram Pipelineling
  • (i) Micro-instruction Register
  • (ii) Datapath Condition-Code Register
  • (iii) Pipelined Next-Address Logic
  • Complexity for Programmer

References

• $\dagger$ [A Practical Introduction to Hardware Software Codesign] Patrick Shaumont

• Microprogramming Slides from [http://ece-research.unm.edu/jimp/codesign/]

FSMD vs Microprogram-Controlled Machine

• With a microprogrammed machine, th next-state logic of FSM is replaced with a programmable memory called the Control Store
• The control store holds micro-instructions, and is addressed using a registered called a CSAR (Control Store Address Register)

Microprogrammed Control

Addressing Limitations of FSMD

• While the micro-programmed controller is more complicated than the FSMD, it also addresses the problems of FSMDs very effectively:

  1. complexity
  2. exceptions
  3. control hierarchy
  4. flexibility/reprogrammablity

• The micro-programmed controller scales well with complexity

  • For example, a 12-bit CSAR will allow a control store with up the 4096 locations, and therefore a micro-program with 4096 steps
  • An equivalent FSM diagram with 4096 states, on the other hand, would be horrible to draw!

• A micro-programmed machine can deal efficiently with exception handling, since global exceptions are managed directly by the next-address logic

  • For example, the presence of a global exception can feed a hard-coded value into the CSAR, immediately transferring control to an exception-handler
  • Therefore, exception handling does not affect every instruction of a microprogram in the same way as it affects every state of a FSM

• A micro-programmed machine deals very well with control hierarchies

  • Small modifications to the microprogrammed machine shown above allow pushing and popping of the CSAR for sub-routine calls

• Micro-programs are flexible and very easy to change after the micro-programmed machine is designed

  • Simply changing the contents of the control store is sufficient to change the program of the machine
  • Here, there is a clear distinction between the architecture of the machine and the functionality implemented using that architecture

Microinstruction Encoding

• A key design choice is the format of micro-instructions in the control store
• A sample format for a 32-bit micro-instruction word is shown

Jump Field

• Of the example 32-bit micro-instruction word, 16 bits are reserved for the datapath and 16 bits are reserved for the next-address logic
• The next-address field holds an absolute target address, pointing to a location in the control store
  • The address is 12 bit, which allows a control store as large as 4096 locations
• The next field encodes the operation that will lead to the next value of CSAR
  • As mentioned, the default operation is to increment CSAR
• For some instructions, the address field is unused

Command Field

• There are two approaches at micro- instruction encoding

  • Horizontal microcode, where no or minimal decoding is required is done
  • Vertical microcode, where the maximal amount of instruction encoding is done requiring more decoding

• A wide (horizontal) micro-instruction word allows each control bit of the data path to be stored separately

• A narrow micro-instruction word, on the other hand, will require the creation of symbolic instructions, which are encoded groups of control-bits for the datapath

  • Therefore, a few bits of the micro-instruction define the value of many control bits in the data-path

• Here, we create a micro-programmed machine with three instructions on reg a

• The three instructions do one of the following

  • Double the value in a
  • Decrement the value in a, or
  • Initialize the value in a

• The datapath shown along the bottom of the figure contains two multiplexers and a programmable adder/subtractor

• The controller on top shows two possible encodings for the three instructions: a horizontal encoding, and a vertical encoding

• For horizontal, the control store includes each of the control bits in the datapath directly (3 bits)

• For vertical, the micro-instructions are encoded with a two-bit micro- instruction word, and a decoder is used

• So what is the design trade-off between horizontal and vertical microprograms?

• Vertical micro-programs have a better code density, which is beneficial for the size of the control store.

  • From the figure, the vertically-encoded version of the microprogram will be only 2/3rds of the size of the horizontally-encoded version

• On the other hand, vertical micro-programs use an additional level of encoding, and need decoding before it can drive the control bits of the datapath

  • Thus, the machine with the vertically encoded micro-program may have a longer critical path

• In practice, designers use a combination of vertical and horizontal encoding concepts, so that the resulting digital structure is compact yet efficient

• Consider for example the value of the next field of the micro-instruction word

• There are six different types of jump instructions, which would imply that a vertical micro-instruction needs no more then three bits to encode these six jumps

• Yet, four bits have been used, indicating that there is some redundancy
• The encoding was chosen to simplify the design of the next-address logic
• Another reason to leave "room" in the encoding is to allow future upgrades
• For example, easy to add an additional conditional jump that uses an arbitrary combination of cf and zf

Microprogrammed Datapath

• A datapath attached to the microprogrammed controller consists of
  three parts (like the Datapath for the FSMD):

  • Computation units such as adders, multipliers, shifters, and so on.
  • Communications infrastructure (bus, crossbar, point-to-point connection, etc.)
  • Storage, typically a register file or scratchpad RAM

• Each of these may contribute a few control bits to the micro-instruction word

• For example,

  • Multi-function computation units have selection bits that determine their specific function,
    Storage units have address bits and read/write command bits
  • Communication busses have source/destination control bits

• The datapath may also generate condition flags for the micro-programmed controller

Example Datapath Controller

• Consider the micro-programmed controller with a datapath attached

• The datapath includes an ALU with shifter unit, a register file with 8 entries, an accumulator register, and an input port



  †Shaumont

• The micro-instruction word contains 6 fields Nxt and Address are used by the micro-programmed controller while the remaining fields are used by the datapath. The type of encoding is mixed horizontal/vertical.

  • The overall machine uses a horizontal encoding, i.e., each module of the
    machine is controlled independently
  • The sub-modules within the machine use a vertical encoding, e.g., the ALU
    field contains 4 bits and can execute up to 16 different commands

Other characteristics:

Writing Microprograms

• table illustrates the encoding used by each module of the design

• A micro-instruction defines the module function for each module of the micro-programmed machine, including a next-address for the Address field

• When a field remains unused during a particular instruction, a don’t care value can be specified

• The don’t care values are designed to prevent unwanted state changes in the datapath

• For example, an instruction to copy register R2 into the accumulator register ACC would be defined as follows

  • The instruction gets the value in register R2 from the reg file, sends it over the SBus, through the ALU and the shifter, and to the ACC register

• This functional requirement determines the values in the micro-instruction fields:

  • The SBUS needs to transfer the value of R2, so (from the Table), the SBUS field is set to 0010
  • The ALU needs to pass the SBUS input to the output, therefore, from the Table, the ALU field must be set to 0001
  • The shifter passes the ALU output unmodified, thus the Shifter field is set to 111
  • The output of the shifter is used to update the ACC, so the Dest field equals 1000
  • There is no jump or control transfer for this instruction, so the Nxt field is set to 0000 and the Address field is don’t care
    • The overall micro-instruction is assembled by putting all instruction fields together (as shown below) –0x10F80000

• Writing a micro-program thus consists of formulating the desired behavior as a sequence of register transfers and then encoding them in the microinstruction fields

• Higher-level contructs, such as loops and if-then-else statements, are expressed as a sequence of register transfers

• Although this looks like a tedious task, bear in mind that the programmer has full control over the hardware at every clock cycle

• Let’s write the micro-program that implements Euclid’s algorithm

  1 ; Command Field           || Jump Field
  2         IN -> R0
  3         IN -> ACC
  4 Lcheck: (R0 - ACC)        || JUMP_IF_Z Ldone
  5         (R0 - ACC) << 1   || JUMP_IF_C LSmall
  6         (R0 - ACC) -> R0  || JUMP Lcheck
  7 Lsmall: (ACC - R0) -> ACC || JUMP Lcheck
  8 Ldone:                       JUMP Ldone


  Listing 6.1

• Book gives Example of a Micro-programmed Machine with hardware and microcode
  software in GEZEL
  • The design is itself an example of how the FSMD model can be applied to
    create a more complex micro-programmed machine
• Next, we show how this can be used to create programming concepts at even higher
  levels of abstraction, using micro-program
  interpreters

Micro-program Interpreters

A microprogram Interpreter

• Consider the following simple machine as a programmers’ model of a macromachine
• It has four registers RA through RD, and two instructions for adding and multiplying those registers

• The macro-machine has the same wordlength as the micro-programmed machine but has fewer registers than the micro-programmed machine
• To implement the macro-machine, we map the macro-register set directly onto the micro-register set (as shown )

• This leaves register R0 to R3, and the accumulator, available to implement macroinstructions
• The macro-machine has two instructions: ADD and MUL, which take two source operands (in the macro-machine registers) and generates one
• The micro-machine needs a decoder for macro-instructions (which are 1 byte wide)
  • The format is two bits for the macro-opcode, and two bits for each of the macroinstruction operands
• A micro-programmed interpreter can create the illusion of a machine that has more powerful instructions than the original micro-programmed architecture
• The microprogram itself may require multiple cycles to complete the multiple micro-machine instructions required to implement a single macro-machine instruction, complicating the coding process
• The concept of micro-program interpreters has been used extensively to design processors with configurable instruction sets, and was originally used to enhance the flexibility of expensive hardware
• Today, the technique of micro-program interpreter design is still very useful for creating an additional level of abstraction on top of a micro-programmed architecture

Microprogram Pipelineling

• Pipeline registers can be used to break up the micro-program controller logic
• However, adding pipeline registers has a large impact on the design of micro-programs
• Each choice cutes through a different update-loop of the CSAR register
  • through the next-address logic,
  • through the control store and the next-address logic
  • through the control store, the data path, and the next-address logic
• These combinational paths may limit the maximum clock frequency of the microprogrammed machine

• There are three common places where pipeline registers may be inserted, as shown above with shaded boxes
• (i) At the output of the control store as a micro-instruction register: Inserting a register there allows temporal overlap of the datapath evaluation, the next address evaluation, and the micro-instruction fetch
• (ii) In the datapath to create a datapath pipeline
  • Common to have condition-code registers can be inserted on datapath outputs (status registers)
• (iii) In the next-address logic: in case high-speed operation is required and the target CSAR address cannot be evaluated within a single clock cycle

(i) Micro-instruction Register

(ii) Datapath Condition-Code Register

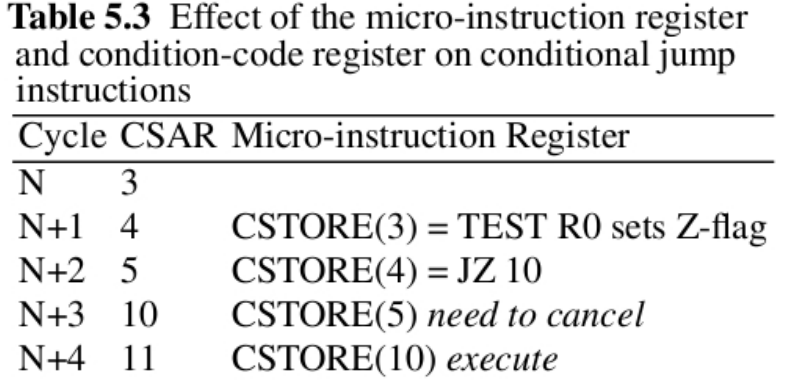

• Assume that we have a condition-code register in the datapath, in addition to a microinstruction register
• The fact that it is a register means that the actual condition code will not be available in the current clock cycle (when the expression is evaluated
• Therefore, conditional-jump instructions can only operate on datapath conditions from the previous clock cycle
  • Here, the branch instruction in CSTORE(4) is a conditional jump
  • When the condition is true, the jump will be executed with one clock cycle delay
  • The JZ instruction implements the jump in cycle N+2, which tests the condition code generated in cycle N+1 and which becomes available in N+2
  • Here, the micro-programmer just needs to be aware that condition flag must be generated one clock cycle before they are used in conditional jumps
  • Note instruction at N+3 needs to be canceled if jump is taken

(iii) Pipelined Next-Address Logic

• Assume that there is a third level of pipelining available inside of the next-address update loop

• For simplicity, we will assume there are two CSAR registers back-to-back in the next-address loop

• The output of the next-address-logic is fed into the CSAR pipeline register and the output of CSAR pipeline register is connected to CSAR

• Assuming all registers are initially zero, the two CSAR registers in the next-address loop result in two (independent) address sequences

• Each instruction of the micro-program is executed twice!

• careful initialization of CSAR pipe and CSAR needed such that they start out at different values (e.g. 1 and 0)
• Unfortunately, special load needs to be done for each jump instruction too
• This complicates the design and the programming of pipelined next-address logic

Complexity for Programmer

• These examples show that a micro-programmer must be aware of the implementation details of the micro-architecture
• In particular, he/she MUST be aware of all the delay effects caused by registers
• This significantly increases the complexity of the development of micro-programs
• A possible approach is to develop a custom language and/or compiler
