Signed and Unsigned Integers

• Consider $n$ ordered bits representing a value $X$

• Two's complement uses the msb as a large negative number

• If MSB, $x_{N-1}$ , is 0

  • unsigned: $X <= 2^{N-1}-1$
  • signed: X positive , $X <= 2^{N-1}-1$
  • the interpretation is the same

• If MSB, $x^N-1$ , is 1,

  • unsigned: $X >= 2^{N-1}$
  • signed: $X$ negative, $X >= -1 \times 2^{N-1}$
  • the interpretation is different

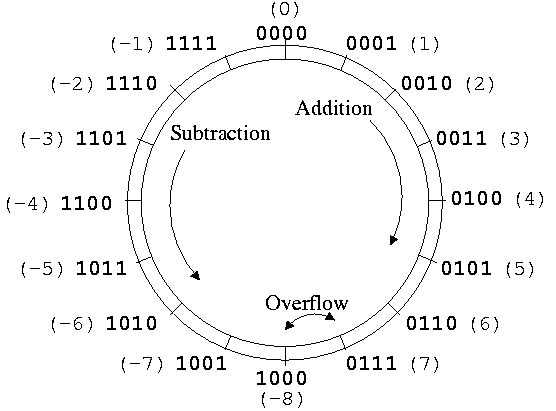

Two's Complement Wheel

Helps visualize

• bit interpretation
• modular arithmetic
  • e.g. (X+Y)%(2^4)
• overflow

• adding (and subtracting) signed and unsigned numbers is no different at the bit/hardware level, represented as modular arithmetic

Conversion Arithmetic

• The following assumes word sizes are sufficient for the conversion arithmetic, e.g. working with 12-bit words in a 16-bit architecture
• Interpreting unsigned as signed:
  • To reinterpret $\textcolor{red}{(1)} 2^{N-1}$ as $\textcolor{red}{-(1)}2^{N-1}$, subtract $2^N$
  • If reading bits from a data stream, the subtraction by be necessary in software
  • Example: a 12-bit two's complement ADC value is read from a 16-bit I/O port as 12'b0000_1000_0000_0001. Using a default interpretation in C, printf("%d",X) displays the result as 2049. What is the actual value?

• Interpreting signed as unsigned:
  • To reinterpret $\textcolor{red}{-(1)} 2^{N-1}$ as $(1) 2^{N-1}$, add $2^N$
  • Ex: if we print -2047 as unsigned, we get 2049

Complement and Increment

• A two-step process can represent negation, without requiring additional bits:
  1. Bit-Wise Complement
  2. Increment
• Let X and Y represent bits in hardware expressed as an unsigned interpretation, though they may store a two's complement representation
• First, recall that addition and subtraction with signed and unsigned numbers are exactly the same in hardware:
  • X+Y is $(X+Y) \% 2^N$

• Negating in two’s complement:

  • -X: 2^N-X is $(2^N-X) \% 2^N = -X$

• However, $2^N$ cannot be represented with N bits, but $2^N-X$ can be represented in two operations

  • Let $2^N = Y+1$ where $Y = (2^N-1)$
  • So $-X: (Y+1)-X = (Y-X) + 1$
  • Which in modular arithmetic is $((Y-X) \% 2^N + 1) \% 2^N = -X$

Long/short unsigned/signed Conversion Rules

(C/C++) Combinations of (dest type) = (source type) to consider

• The C rules are “simple” and used in Verilog:
  1. extend or truncate source
  • Going from longer to shorter, upper bits are truncated
  • Going from shorter to longer, zero or sign extension is done
    depending on source type being unsigned or signed respectively
  2. bit copy
  • To/From signed/unsigned is just bit copying, no other smart manipulation/conversion/rounding is done

Long/short unsigned/signed Verilog Conversion Rule Demo

module conversion_demo;

wire [7:0] u8x = 8'b11111111;
wire signed [7:0] s8x = 8'b11111111;
wire [15:0]       u16x = 16'b1111_1111_1111_1111;
wire signed [15:0] s16x = 16'b1111_1111_1111_1111;

wire        [15:0] u16y_ux = u8x;
wire        [15:0] u16y_sx = s8x;
wire signed [15:0] s16y_ux = u8x;
wire signed [15:0] s16y_sx = s8x;

wire        [7:0] u8y_ux = u16x;
wire        [7:0] u8y_sx = s16x;
wire signed [7:0] s8y_ux = u16x;
wire signed [7:0] s8y_sx = s16x;

initial begin
  #0;
   $display("u16y_ux: %16b, %7d",u16y_ux,u16y_ux);
   //u16y_ux: 0000000011111111,     255
   $display("u16y_sx: %16b, %7d",u16y_sx,u16y_sx);
   //u16y_sx: 1111111111111111,   65535
   $display("s16y_ux: %16b, %7d",s16y_ux,s16y_ux);
   //s16y_ux: 0000000011111111,     255
   $display("s16y_sx: %16b, %7d",s16y_sx,s16y_sx);
   //s16y_sx: 1111111111111111,      -1

   $display(" u8y_ux: %16b, %7d",u8y_ux,u8y_ux);
   //u8y_ux:         11111111,      255
   $display(" u8y_sx: %16b, %7d",u8y_sx,u8y_sx);
   //u8y_sx:         11111111,      255
   $display(" s8y_ux: %16b, %7d",s8y_ux,s8y_ux);
   //s8y_ux:         11111111,       -1
   $display(" s8y_sx: %16b, %7d",s8y_sx,s8y_sx);
   //s8y_sx:         11111111,       -1
end
endmodule

Rounding Errors -- float to int

• In C, Conversion from float to int is defined as truncation of fractional digits, effectively rounding towards zero
  • $5.7 \rightarrow 5$
  • $-5.7 \rightarrow -5$

• Nearest Integer Rounding using Floating Point Biasing:
  • Add +/- .5 before truncation depending on sign
  • Positive Numbers:
    • $5.7+.5 = 6.2 \rightarrow 6$
    • $5.4+.5 = 5.9 \rightarrow 5$
    • $-5.7+.5 = -5.2 \rightarrow -5$ doesn’t work
  • For negative numbers, need to subtract
    • $-5.7-.5 = -6.2 \rightarrow -6$
    • $-5.4-.5 = -5.9 \rightarrow -5$

Controlling Rounding errors

Assume int A,B;

• A/B gives floor(A/B) rather than round(A/B)
• So (A+B/2)/B is how we get rounding with integer-only arithmetic
• If B is odd, we need to choose to round B/2 up or down depending on application

Example:

• Want to set serial baud rate using clock divider
  i.e. BAUD_RATE=CLK_RATE/CLK_DIV
• Option 1:

#define CLK_DIV (CLK_RATE/BAUD_RATE)

• Option 2: BETTER CHOICE WITH INTEGER BIASING

#define CLK_DIV (CLK_RATE+(BAUD_RATE/2))/BAUD_RATE

Choices for order of operations affects result

• In general, if intermediate result will fit in the allowed integer word size, apply integer multiplications before integer divisions to avoid loss of precision
• Need to consider loss of MSB or LSB digits with intermediate terms and make choices base on application or expected ranges for input values

• Example 1: int i = 660, x = 54, int y = 23;
  • want i/x*y : true answer is 255.555…
    i/x*y result is 253 : good
    i*y/x result is 255 : better
    (i*y+x/2)/x result is 256 : best

• Example 2:
  • Assume
    • an architecture with 16-bit int,
    • unsigned int c = 7000, x=10,y=2;
    • want c*x/y which is truly 35000
  • c*=x; overflows c since (c*x)>65535 resulting in x = 4465
  • c/=y; get 2232 here
  • c/=y; c*=x; result is 35000
• In general, if intermediate result will fit in the allowed integer word size, apply integer multiplications before integer divisions to avoid loss of precision

Impacts of Limited Precision

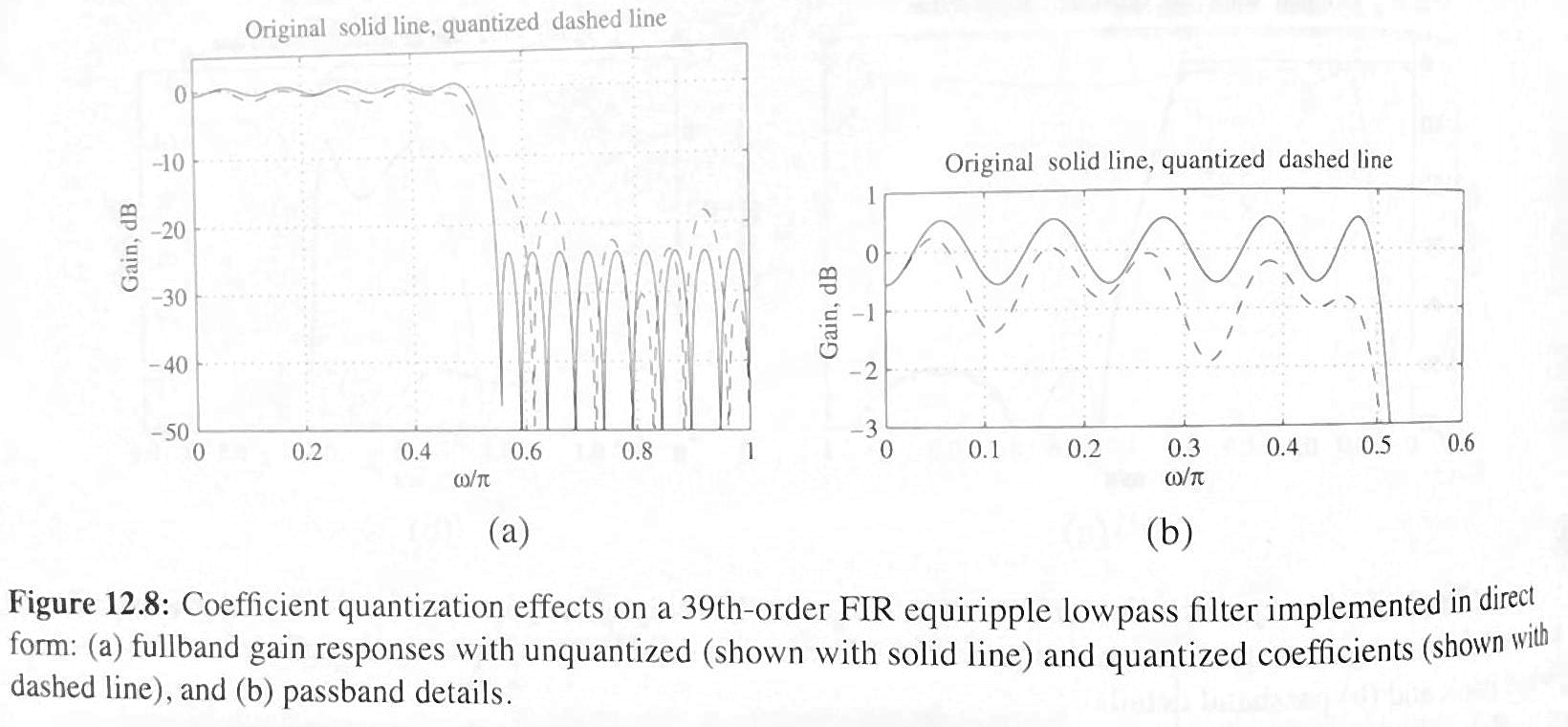

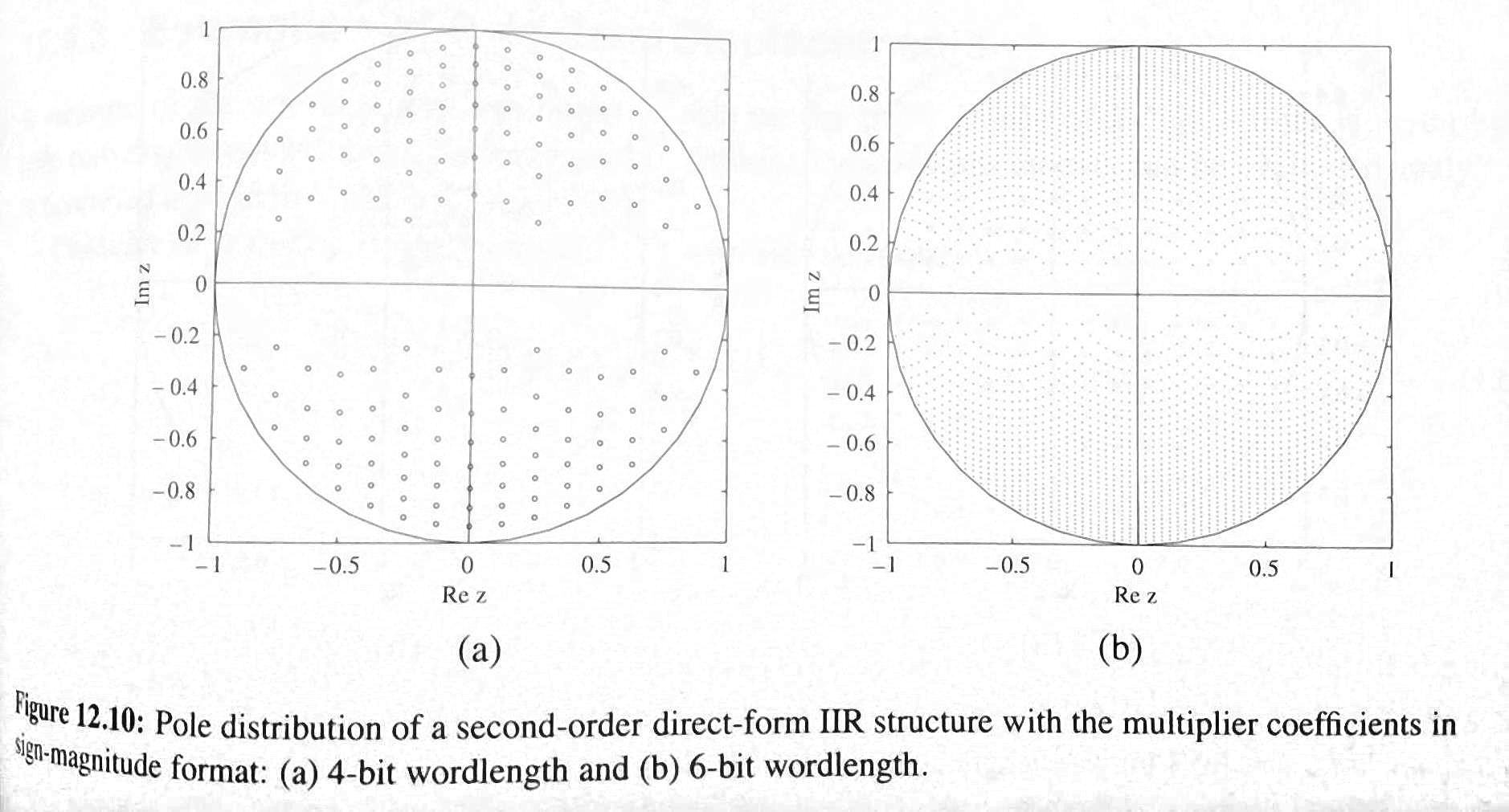

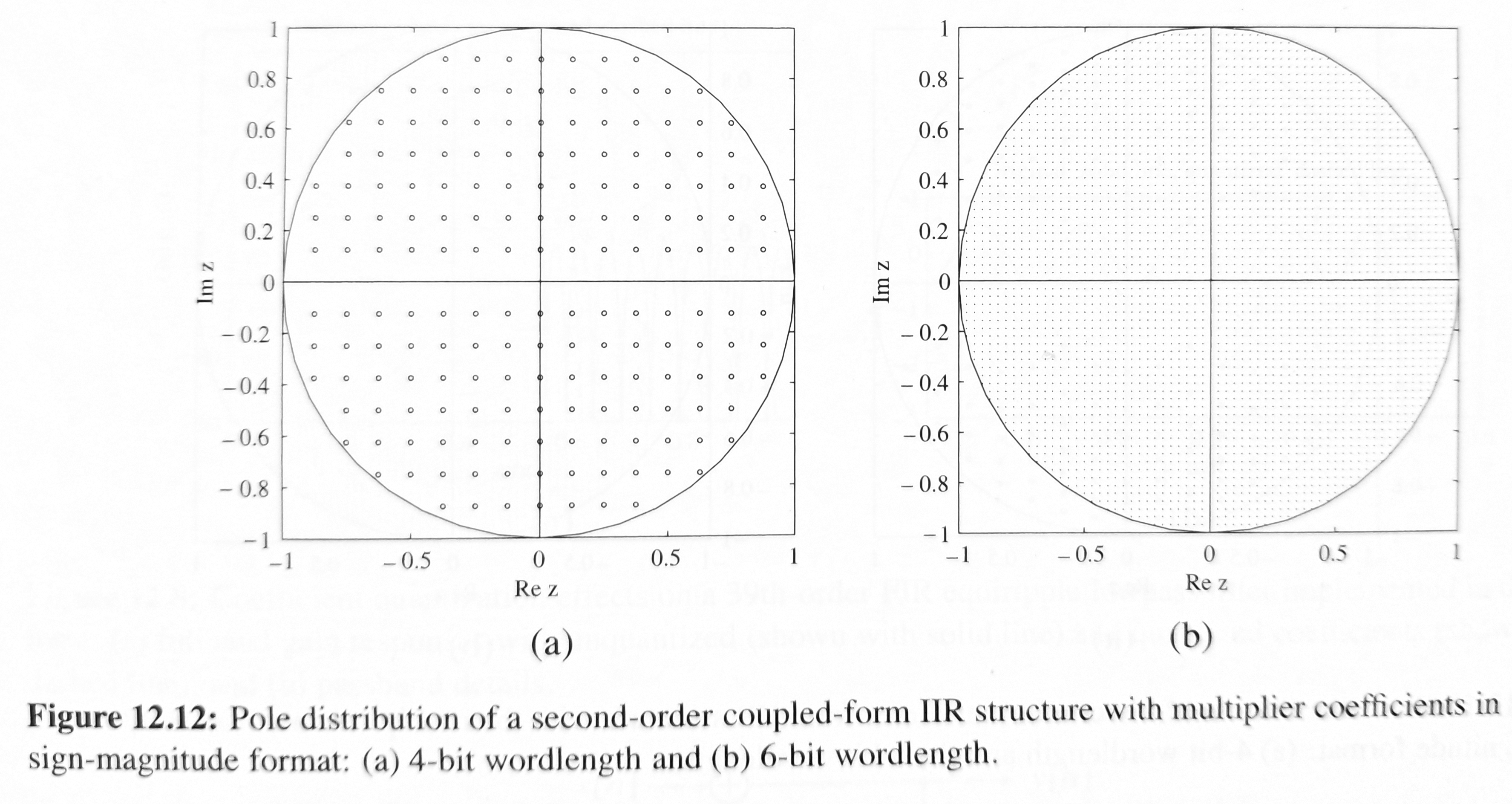

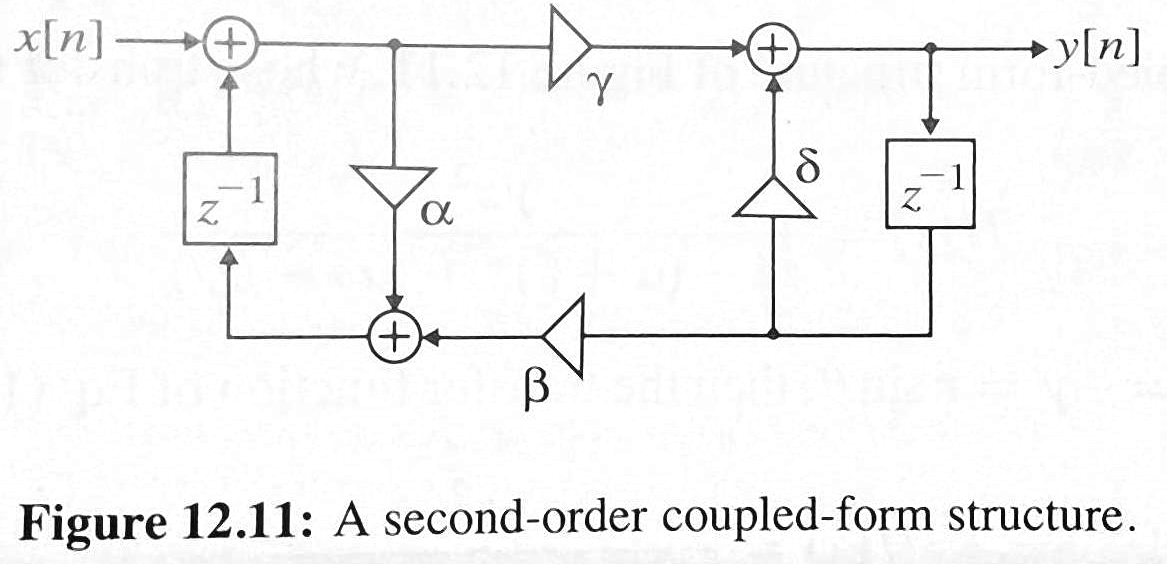

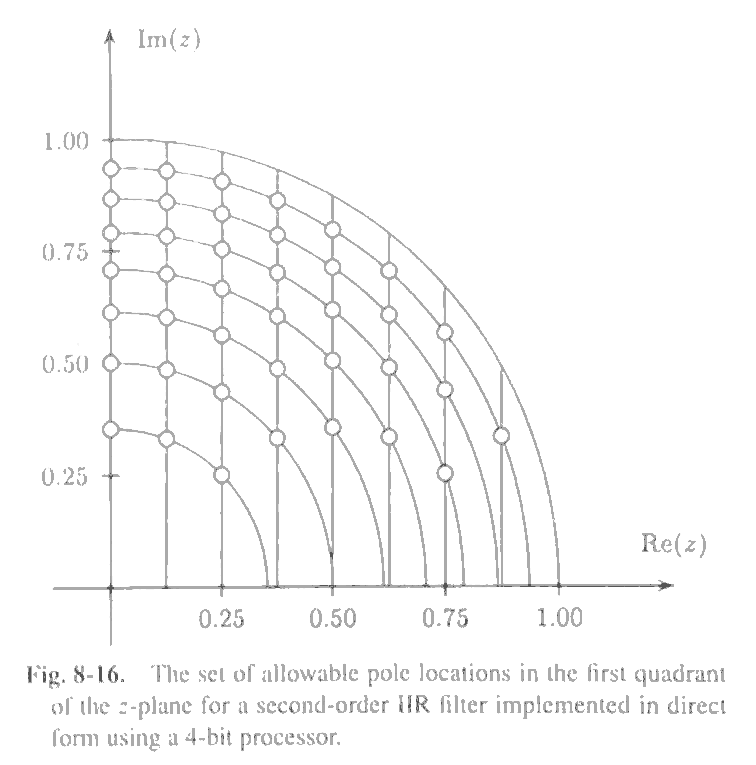

• Limited-precision representation of coefficients limits realizable system parameters
• Images from Digital Signal Processing with Student CD ROM 4th Edition by Sanjit Mitra

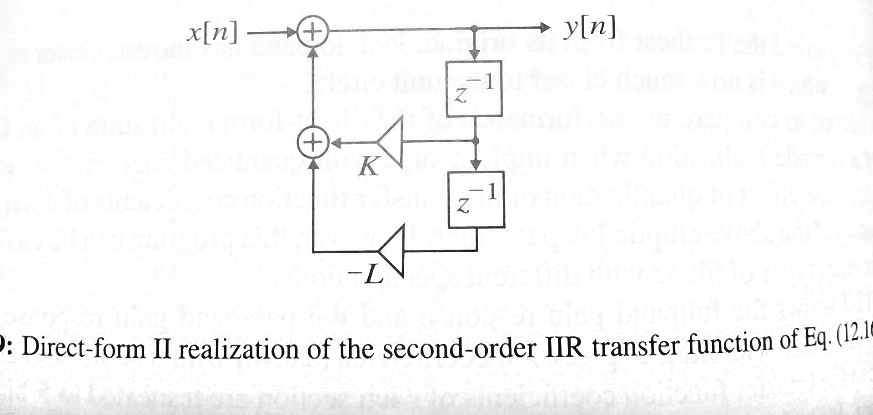

• Direct-form II: very poor for high-pass below pass filters requiring pole near the real axis

• Manipulation of the order of operations, or alternative numerical formulations can yield different possible system realizations Here is a equivalent system if infinite precision is used, but yields different results if parameters and calculations are of limited precision

Saturation

• When choosing scales, range and precision are traded
• Detect overflow condition – override output to avoid LARGE roll-over error from modulus arithmetic
  • If result exceeds $2^{N-2}-1$ replace with $2^{N-2}-1$
  • If result exceeds $-2^{N-2}$ replace with $2^{N-2}$
  • 3 input MUX
• Balanced Range
  • Using limits $2^{N-2}-1$ and $-(2^(N-1))$ under some conditions may cause bias (non-zero average error) , might be better to limit to $2^{m-2}-1$ and $-(2^{N-1}-1)$

Soft Max

• Choosing Smoother Limiting Functions will smooth the estimated wave by "compressing" past a soft limit. The saturation error is smoothed and high-frequency distortion is mitigated.
• A linearized approach can be implemented cheaply using a scale for signal components exceeding a softlimit (may involve scale by const or scale by power of two)
• Smoother sigmoidal functions mimicking analog circuits can be used as well

Quantization / Round-off Noise

• When error is small compared to a signal, quantization error is model as noise
• in fact it is nearly ideal to model the error as white noise when the error very small compared to the signal (high SNR)

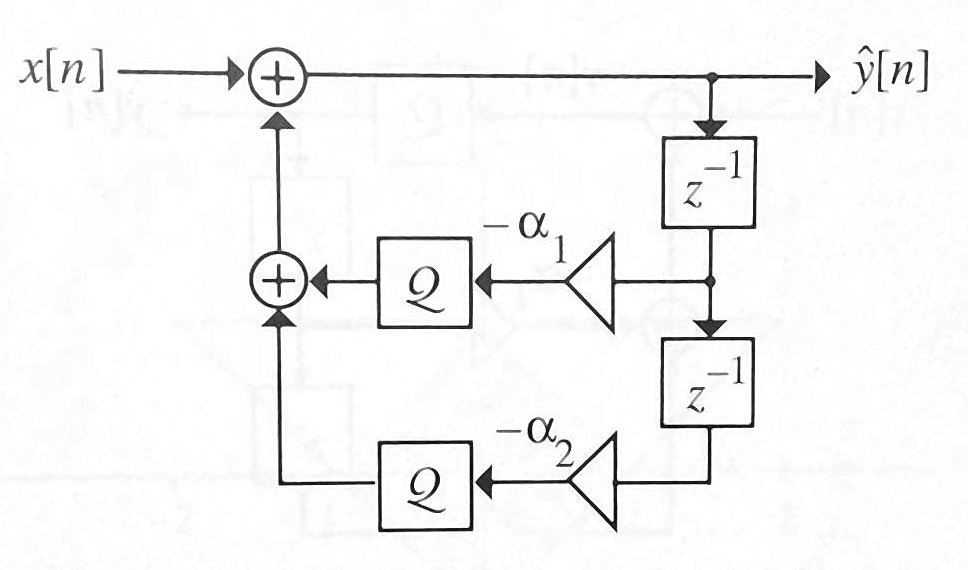

• A computation stage can be numerically modeled using an ideal calculation followed by additive error
• Limited-precision effects are modeled as quantization error and analyzed as if noise is inserted into the system at the quantization/round-off step
• Good SNR (signal to noise ratio) demands that the signal's actual range in an application be large compared to the round-off error

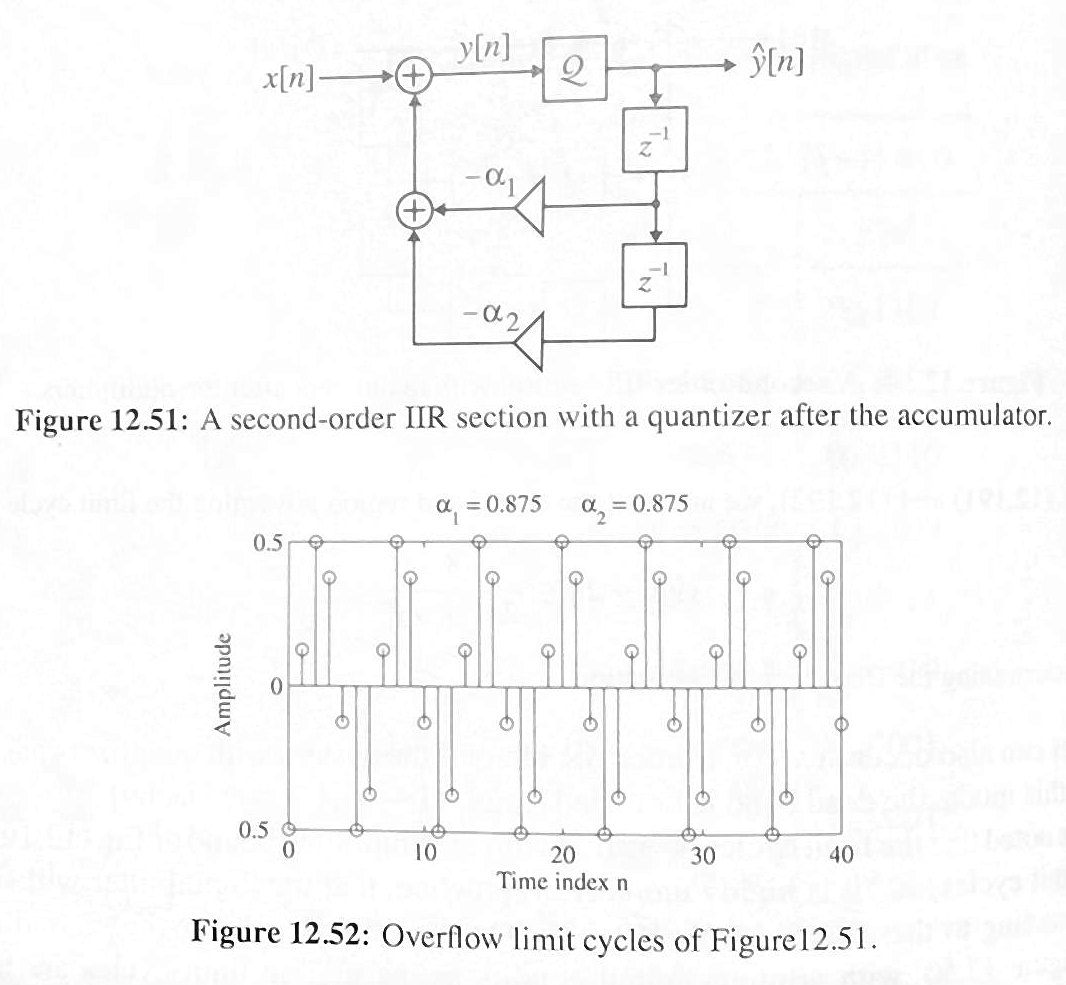

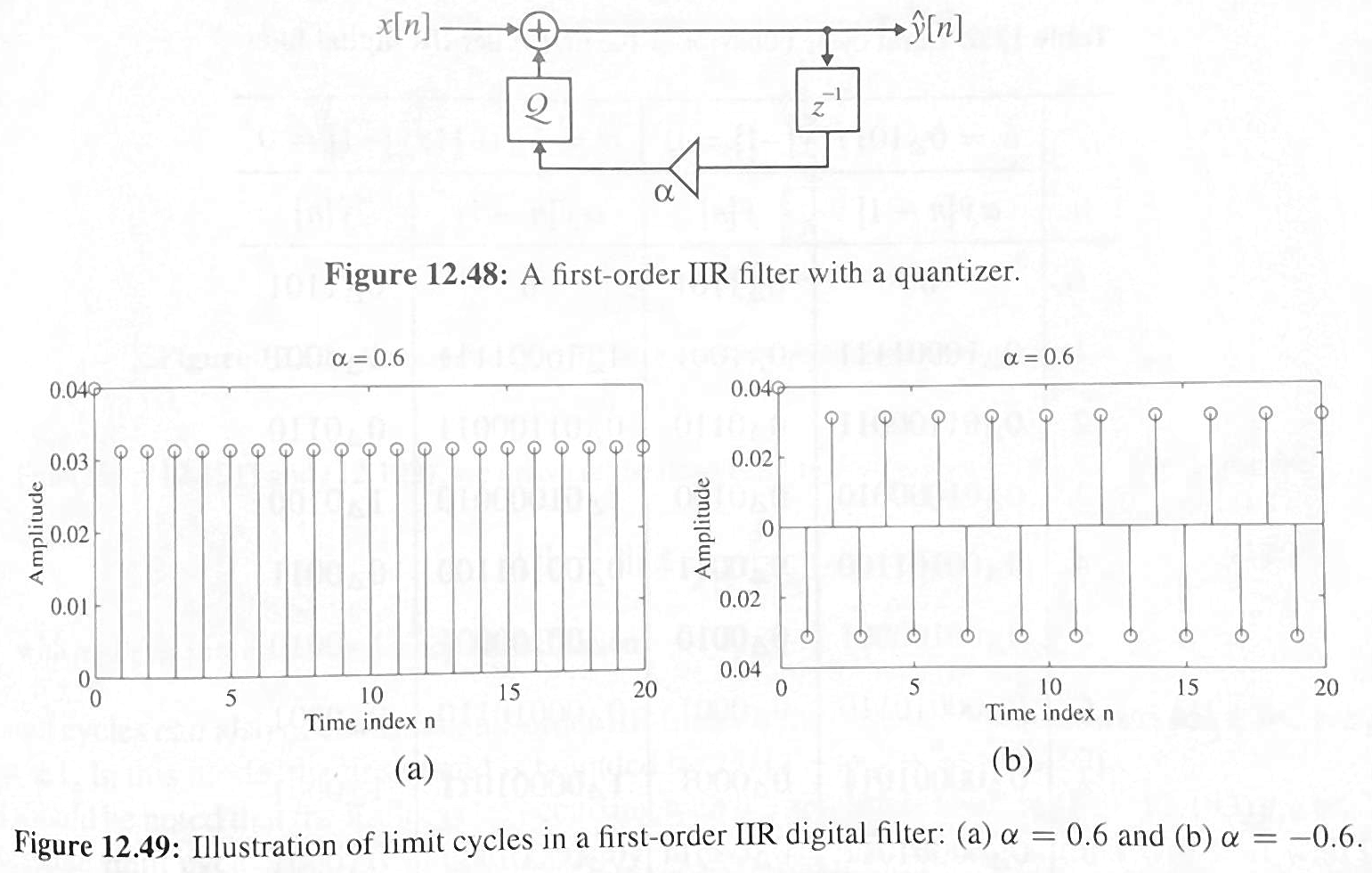

Limit Cycles

• Limit Cycles are a special case of quantization (limited precision) error
• Feedback in computations, e.g. IIR systems, can exhibit limit cycles, which are indefinite oscillatory responses from either round-off or overflow errors. This is possible from the feedback of the Limited-precision error, and repetitive rounding.
• Errors may "appear" to be constant outputs or +/- oscillations, even after the input becomes 0
• FIR filters (no feedback) do not exhibit this

• Techniques to avoid unwanted limited cycle behavior usually involve increasing bit length of intermediate calculations, using increased bit length use feedback of error and feedback, introducing random quantization to mitigate perpetuating effects
• Reference for Additional Examples:
  • Discrete-Time Signal Processing (3rd Edition) (Prentice-Hall Signal Processing Series) 3rd Edition by Alan V. Oppenheim (Author), Ronald W. Schafer
    • Ex 6.15 steps through an example of this shows round-off error where the output oscillates
    • Ex 6.16 steps through an example of this shows overflow error- based oscillation which can be more sever

Addition and Overflow Detection

• Two's complement addition of two numbers where the longest is N-bit can require up to N+1 bits for the result
• Two's complement addition can only overflow if the signs of the operands are the same
• Overflow check: input sign bits are same and do not match result sign bit

Subtraction and Overflow Detection

• Two's complement subtraction can only under/overflow if the signs of the operands are different, otherwise the magnitude of the result must be smaller than the maximum magnitude of the two operands.
• Overflow check: resulting sign bit does not match the first operand and the sign bits of the operands are different i.e. sign bit of the second operand and the result are the same and not equal to that of the first

Working with signed and unsigned reg and wire

Verilog 2001 provides signed reg and wire vectors

Casting to and from signed may be implicit or may be explicit by using

• $unsigned() Ex: reg_s=$unsigned(reg_u);
• $signed() Ex: reg_u=$unsigned(reg_s);

Verilog: Signed/Unsigned Casting

• Implicit or Explicit Casting is always a dumb conversion (same as C), they never change bits, just the interpretation of the bits (e.g. -1 is not round to 0 upon conversion to unsigned, it is just reinterpreted as the largest unsigned value) for subsequent operations by the compiler/synthesizer
• If a mix of signed and unsigned operands are provided to an operator, operands are first cast to be unsigned (like C)
• Signed/Unsigned Casting may be followed by length adjustment.

Truncation and Extension

• Truncation and Extension may be implied by context in Verilog.
• Some review of Truncation and Extension for Arithmetic Operators Discussion provided herein

Truncation

• Assignment to a shorter type is always just bit truncation
  • no Python-like smart rounding such as unsigned(-1) → 0
• Error Checking:
  • For unsigned, truncation is no problem as long as all the truncated bits are 0 (ex: 0000101 (5) can truncate up to 3 bits)
  • For signed, truncation is no problem as long as all the bits truncated are the same AND they match the surviving msb (ex: 1111100 (-3) can truncate up to 4 bits)

Extension

• Assignment to a longer type is done with either zero or sign extension depending on the type:
  • Unsigned types use zero extension
  • Signed types use sign extension

Addition

• In this example we see that addition obeys modular arithmetic with a result u8y=0

  ur8a = 128;
  ur8b = 128;
  ur8y= ur8a+ur8b;


• In this example we see that the addition is an expression paired with an assignment, so the length of the assigned variable sets the context-determined expression operand length of the addition to take on the length of the largest operand, 9-bits. Using zero-extension in this case, the addition operands are each extended to 9-bits before addition.

  ur8a = 128;
  ur8b = 128;
  ur9y= ur8a+ur8b; //9-bit addition


Self-Determined Expression and Self-Determined Operands

• Some operators always represent a self-determined expression, they have a well-defined bit-length that is independent of the context in which they are used and must be derived directly from the input operand(s) (the result may still be extended or truncated as needed). These may also force the operands to obey their self-determined expression bit length.

• The concatenation operator is one such example of a self-determined expression with a bit-length that is well-defined as the sum of length of its operands, and in turn its operands are forced to use their self-determined expression length.
  • Single-operand : e.g. {a} for which the result is the length of a
  • Multiple operands: e.g. {2'b00,b,a} for which the result length is 2+length(b)+length(a)

• The use of a single operand {} can force a self-determination for expressions like addition:
  • In this next example, the self determined length of the addition is 8-bits which results in 0 for the summation. The 8-bit result from the concatenation operator is always unsigned and thus is zero extended.
    The result is 'ur9y=256'

  ur8a = 128;
  ur8b = 128;
  ur16y= {ur8a+ur8b}; //8 bit addition
  ur16z= ur8a+ur8b;   //16 bit addition


Rules for expression bit lengths from IEEE Standards Doc.

5.4.1 Rules for expression bit lengths

Reference from IEEE Standards Doc.

Getting the IEEE Verilog Specification

At UMBC, goto http://ieeexplore.ieee.org/
Search for IEEE Std 1364-2005
You'll find

• IEEE Standard for Verilog Hardware Description Language IEEE Std 1364-2005 (Revision of IEEE Std 1364-2001)
• older standard 1995 standard and the SystemVerilog standard

Addition and Mixed Sign

• Addition in the context with of assignment will cause extension of operands to the size of the result (the synthesizer may later remove useless hardware). However, the extension is performed according to the type of addition, which is determined by the operands. Therefore, signed extension is only performed if BOTH operands are signed regardless of the assignment.

module test();
reg signed [7:0] s;
reg [7:0] u;
reg signed [7:0] neg_two;
reg [15:0] x1,x2;
reg signed [15:0] y1,y2;

initial begin
neg_two = -2;
s = 1; u = 1;
x1 = u + neg_two; x2 = s + neg_two;
y1 = u + neg_two; y2 = s + neg_two;
$display("%b",x1); $display("%b",x2);
$display("%b",y1); $display("%b",y2); end
endmodule

Result:

0000000011111111
1111111111111111
0000000011111111
1111111111111111

Multiplication

• In general to hold the result you need M+N bits where M and N are the length of the operands

wire [N-1:0] a;
wire [M-1:0] b;
wire [M+N-1:0] y;
y=a*b;

• The multiplication in the context with the assignment will cause extension of operands to the size of the result (the synthesizer may later remove useless hardware). However, the extension type is performed according to the type of input operands (signed extension is only performed if BOTH operands are signed)

• Multiplication by two variables can be expensive, with a size on the order of MxN (full 1-bit adders and AND gates as 1-bit mult)
• Delay is proportional to M+N

1011 (M bits) x 10010 (Nbits):

EMULATING LARGE MULTIPLIERS

• FPGA may have banks of “hard” multipliers (e.g. 8x8 multipliers, sometime in what is called DSP slices) so as to avoid using large portions of the programmable fabric. Ex. 8-bit multipliers can be used for 16-bit mult, mathematically shown: Y = {AH,AL} x {BH,BL} = AHBH<<16+AHBL<<8+ALBH<<8+ALBL. The synthesizer will recognize the size of the multiplication block construct the mapping to available multipliers for you.

Multiplication Overflow

• can compute full result and check truncation
• can can partial products (bit AND, shift) and check for overflow that word occur in shifting partial products and check after each addition
• can compute full result then divide and compare to input

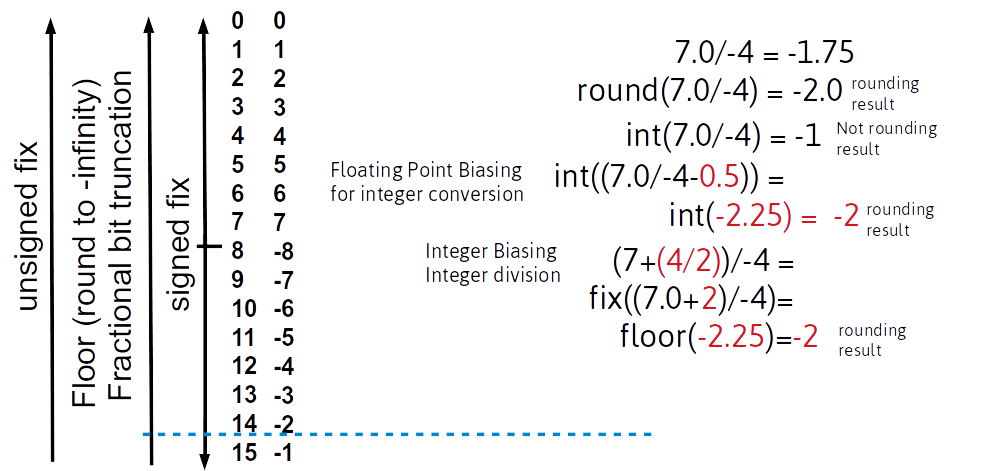

Rounded Integer Division

• Rounded-result division of integers A,B may be accomplished by effectively adding a bias matching the sign of the result, that is adding an offset(bias) to A that is half the magnitude of the divisor B (integer division half) and matches the sign of the numerator
  |round(float(A)/float(B))| = (|A|+|B/2|)/|B|
• Why: Because integer division is round towards 0, but if $|A\%B|$ is at least half of $|B|$ then we need to round away from 0, which can accomplished by effectively adding 0.5 to the magnitude of the result before rounding
  A+(|B|*sign(A))/2 where sign(A) is 1 or -1 according to the sign of A

• Exercise: Try to make code to divide a integer (signed), S, by 256 with a rounded result
  result = (S>=0) ? ((S+128)/256) : ((S-128)/256);
• Exercise: Try to make code to divide a integer (signed), S, by 5 with a rounded result
  result = (S>=0) ? ((S+2)/5) : ((S-1)/5);
• A synthesizer may only support division by powers of two and possibly only constants

Rounded Division (w/ power of 2 den. example)

• float to int conversion is floating-point fix() operator (subtract fractional part) with type conversion discarding fractional part
• int division x/y is same as floating point division followed by int conversion
  • Does not achieve rounding result, requires a bias: $(x+\textcolor{red}{sign(x)\times y/2})/y$

Rounded Division (non-power-of-2 denominator)

Properly Mimic Integer-Divide by Powers of Two

• Divide x by $2^k$ is almost the same as an arithmetic right shift
• discard k bits on the right and replicate sign bit k times on the left. Must use the arithmetic shift to perform sign extension; x>>>k; same as {k{x[msbindex]},x[msbindex:k]}
• However, “integer division” is defined by truncation of the fractional bits of the result, also known as “round towards zero” To mimic this behavior more is needed:

This is

• For a positive x corresponds to floor(x/n)
  • ex: 5/2 = 2
• For a negative x it corresponds to ciel(x/n)
  • ex: -5/2= -2
• If x is positive you can just use logical shifting: x>>k;
• If x is negative, we want ciel(x/n) which may be computed by applying a bias that is 1 lsb less than the divisor … this is just enough bias that with any fractional result the value becomes ''bigger'' than the next ''bigger'' negative integer:
  • $floor((x+(2^k-1))/(2^k))$
  • verilog: (x +((1<<k)-1)) >>> k

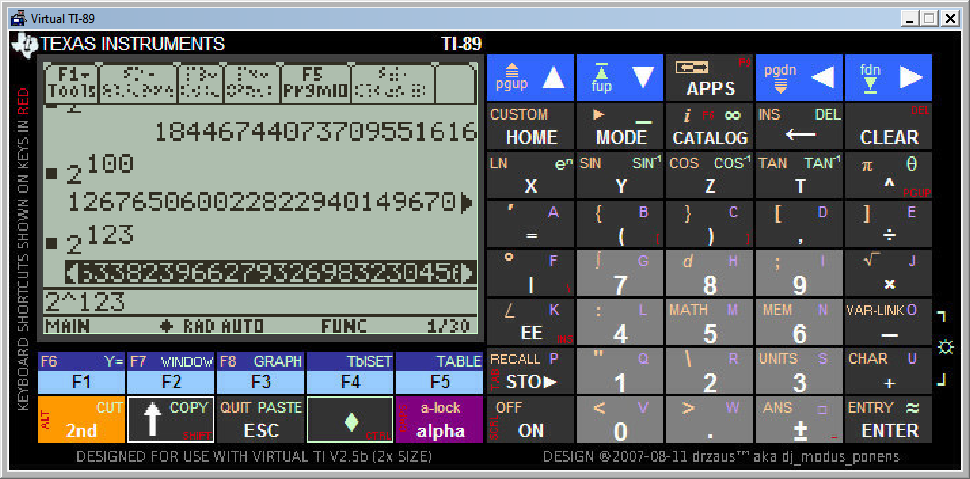

Arbitrary Precision Arithmetic

• Embedded systems can implement larger word-length operations, which is a reasonable alternative to using a more complex processor if needs are not at timing-critical points in time.
• For 16 bit calculations, an 8-bit architecture may support double-register arithmetic (e.g. use two registers to hold output of a 8X8 multiplication)

• For even longer numbers results can be calculated a piece at a time and overflow bits (add/sum) or overflow registers (multiply) can be used to compute larger results. The built-in C variable types are usually automatically handled by the compiler. If even longer types are needed, find an arbitrary precision arithmetic software library.

Fixed-point arithmetic

Floating Point Math and Fixed-Point Math

• If no floating point unit (FPU) is available, you can find a floating point software library. This will likely be slow.
• Another option is fixed-point math. You can write or use a library or just do it as needed inline….

Fixed-point arithmetic

• Problem: Want to use integer operations to represent adding 0011.1110 and 0001.1000
• Solution:
  • Store 0011.1110 as 00111110
  • Store 0001.1000 as 00011000
  • Add 00011000 + 00111110 = 01010110
  • Interpret 01010110 as 0101.0110
• Use QM.N format: M+N bits, with M bits as whole part and N bits as fractional part

Fixed-point arithmetic

Up to you to determine number of bits to use for whole and fraction parts depending on range and precision needed. This determines the scale factors required to convert the faction to a whole number

1101.0000 * 16 = 11010000 S=16, Q4.4
01.011000 * 64 = 01011000 S=64, Q2.6

Addition with scale S:

• A+B computed as A*S+B*S=C*S
• Divide result by S to obtain answer C
• using a power of two for S is efficient, though not required

Subtraction with scale S:

• A-B computed as A*S-B*S=C*S
• Divide result by S to obtain answer C

Multiplication with scale S

• A*B computed as (A*S)*(B*S)=C*S*S
  • Divide result by $S^2$ for final interpretation
  • Or to maintain S-Scale representation for C for further compuations, divide result by S
• Unfortunately, the intermediate result C*S*S required more storage than the scaled result C*S

Division with scale S:

• A/B could be computed as (A*S)/(B*S)=C
• Scales cancel. Which is fine if you only wanted an integer answer
• Would need to multi by S to obtain scaled result C*S for further math
  • …but this is less accurate since the lower bits have already been lost
• Better to prescale one of the operands ((A*S)*S)/(B*S)=C*S
• Unfortunately, the intermediate term ((A*S)*S) required more storage and a larger computation

Additional Operations

• Equality
• Magnitude Comparison

Equality Comparison

wire signed [7:0] x,y;
wire flagEq;

flagEq = (x==y);
implements eight xnor2 followed by and8;

Magnitude Comparator

• Can also use subtraction and check for zero and sign bits
• Comparison Chain (just x>y)
  representative circuit:

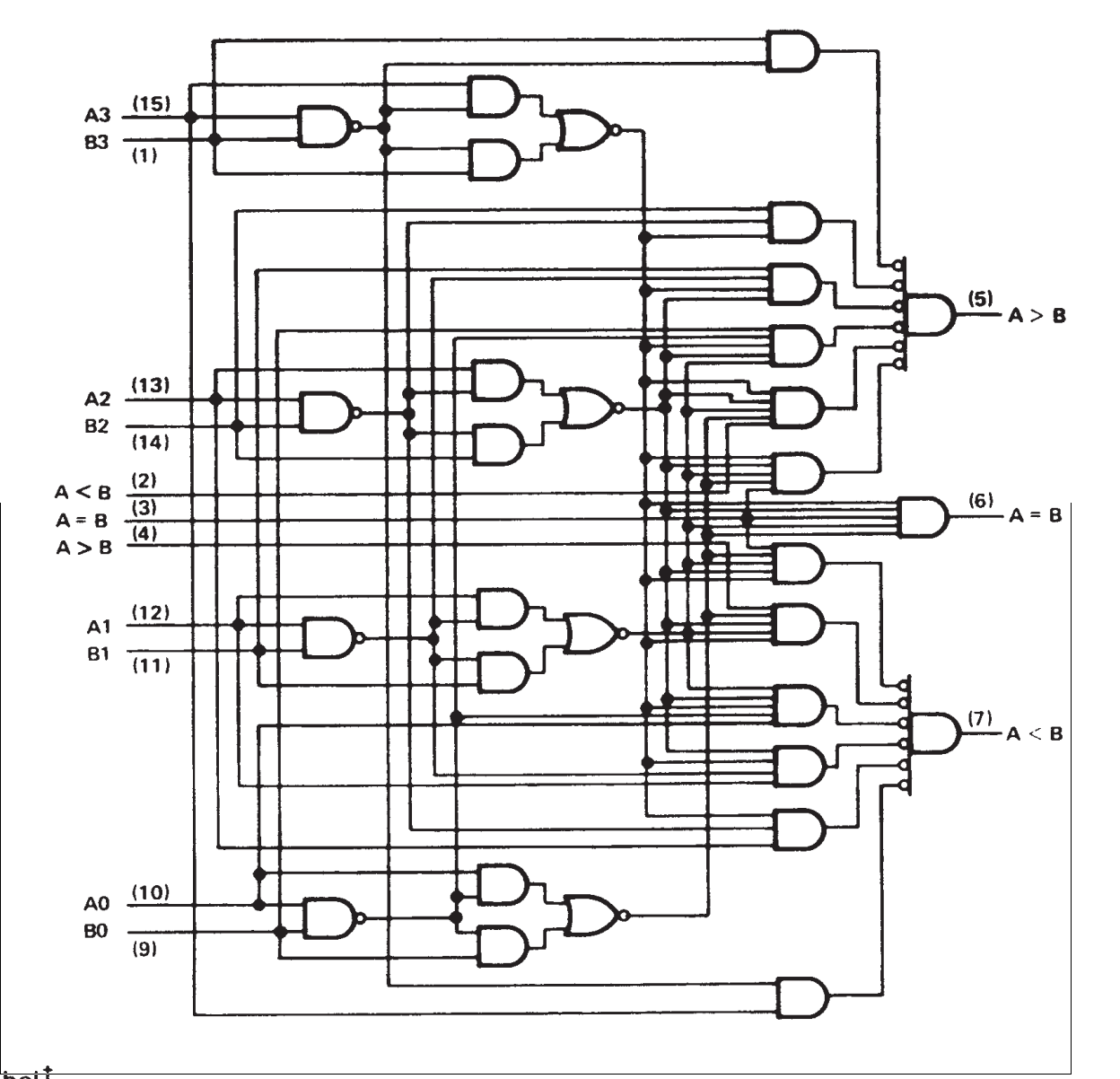

• 4-Bit "Full" Magnitude Comparator Sharing Intermediate Terms
  Ref: http://www.ti.com/lit/ds/symlink/sn74ls85.pdf
