Lecture 16 – Signed Integers and Arithmetic Part I

Table of Contents

• Lecture 16 – Signed Integers and Arithmetic Part I
  • Table of Contents
  • References
  • Signed and Unsigned Integers
  • Negative Numbers in Two's Complement ($2^N-X$)
  • Two's Complement Wheel
  • Conversion Arithmetic
  • Two's Complement as Complement-and-Increment
  • Ones Complement
  • Sign-Magnitude
  • Truncation and Extension for Integers (in C)
    • Truncation
    • Signed and Unsigned Integral Extension
  • Long/short unsigned/signed Conversion Rules
    • Long/short unsigned/signed Verilog Conversion Rule Demos
      • Verilog
      • C/C++
  • Review Points on Bit Length
  • Not All Adder Structures are Alike
  • Verilog: Sign Extension along with Addition
  • Run-time Overflow Detection for Addition
  • Run-time Overflow Detection for Subtraction

References

• $^\dagger$ A few extended topics images from CD Rom for Mitra, Sanjit Kumar, and Yonghong Kuo. Digital signal processing: a computer-based approach. Vol. 2. New York: McGraw-Hill, 2006.

Signed and Unsigned Integers

• Consider $n$ ordered bits representing a value $X$

• Two's complement uses the msb to weight/contribute a large negative number instead of a large positive value

• Ex: 1001 is -8 + 1=-7

• 4-bit signed range is 0+4+2+1 =7 to -8+0+0+0 =-8

• 4-bit unsigned Range is 8+4+2+1=15 to 0+0+0+0 =0

• If MSB, $x_{N-1}$, is 0 the interpretation is the same

  • unsigned: $X <= 2^{N-1}-1$
  • signed: X positive , $X <= 2^{N-1}-1$

• If MSB, $x^N-1$ , is 1, the interpretation is different

  • unsigned: $X >= 2^{N-1}$
  • signed: $X$ negative, $X >= -1 \times 2^{N-1}$

• When the MSB is 1, the adjustment from one interpretation to the other is an offset of 2 times the most significant weight, $2 \times 2^{N-1}$, which is $2^{N}$.

  • Subtract $2^N$ to go from unsigned to signed
  • Add $2^N$ to go from signed to unsigned
    Ex: Receive bits from a UART 10000010
    as unsigned this appears to be 130, but detecting that it is >=128 and then
    subtracting 256 gives results in -126

Negative Numbers in Two's Complement ($2^N-X$)

• It is also useful to think about negative twos-complement values complement in this way:

  • for a N-bit X, if the msb is 1 the value is the following difference: $2^{N}$ - $unsigned(X)
  • for a 16-bit bit-vector X, if the msb is 1, the value is the distance from $2^{16}$ to the value from unsigned interpretation of X

• Ex:

  • 16'b1111_1111_1111_1101 = -3 ; X+2+1 overflows to $2^{16}$
  • 16'b1111_1110_1111_1101 = -259 ; X+256+2+1 overflows to $2^{16}$

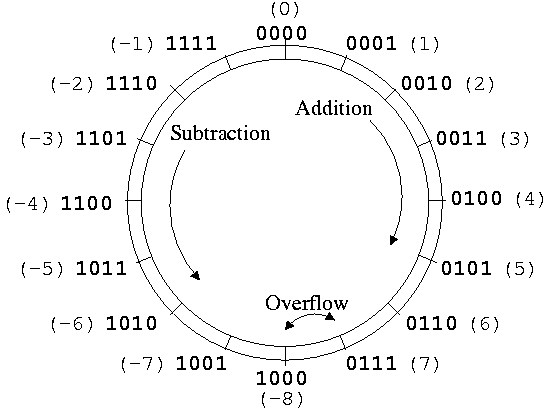

Two's Complement Wheel

Helps visualize

• bit interpretation
• modular arithmetic
  • e.g. $(X+Y)\%2^4$
• overflow

image src:https://stackoverflow.com/questions/55145028/binary-ones-complement-in-python-3, though origin uncertain

• adding (and subtracting) signed and unsigned numbers is no different at the bit/hardware level, represented as modular arithmetic

Conversion Arithmetic

• The following assumes word sizes are sufficient for the conversion arithmetic, e.g. working with 12-bit words in a 16-bit architecture

• Interpreting unsigned as signed:

  • To reinterpret $\textcolor{red}{(1)} 2^{N-1}$ as $\textcolor{red}{-(1)}2^{N-1}$, subtract $2^N$
  • If reading bits from a data stream, the subtraction by be necessary in software
  • Example: a 12-bit two's complement ADC value is read from a 16-bit I/O port as 12'b0000_1000_0000_0001. Using a default interpretation in C, printf("%d",X) displays the result as 2049. What is the actual value? Ans: -2047

• Interpreting signed as unsigned:

  • To reinterpret $\textcolor{red}{-(1)} 2^{N-1}$ as $(1) 2^{N-1}$, add $2^N$
  • Ex: if we print -2047 as unsigned, we get 2049

Visual Example: Sine Wave transmitted using 5-bit data:

Two's Complement as Complement-and-Increment

• A two-step process can represent negation, without requiring extending the number of bits for the numerical symbols.
  Steps:

  1. Bit-Wise Complement
  2. Increment

• Let X and Y represent bits in hardware expressed as an unsigned interpretation, though they may store a two's complement representation

• First, recall that addition and subtraction with signed and unsigned numbers are exactly the same in hardware: (let $\underset{N}\boxplus$ $\underset{N}\boxminus$ be modular addition and subtraction)

  • $X \boxplus Y$ is $(X+Y) \% 2^N$ where $X$ and $Y$ are the vector of bits undergoing modular addition

• Negating in two’s complement:

  • -X: ($2^N \boxminus X$) is $(2^N-X) \% 2^N = -X$

• $2^N$ cannot be represented with N bits, and we might like to represent operations using symbols in the same domain, that of N-bit numbers.

  • $2^N-X$ can be represented in two operations
    • Let ${\mathcal H}$ satisfy $$2^N = {\mathcal H}+1$$
      so that $${\mathcal H} = (2^N-1) = {\underbrace{{111....11_2}}_{N\rm\,bits}}$$
    • Then define negation by the following function $$\underset{N}\boxminus X: ({\mathcal H}\underset{N}\boxplus 1) \underset{N}\boxminus X = ({\mathcal H} \underset{N}\boxminus X) \underset{N}\boxplus 1$$
    • Which in modular arithmetic is $$(({\mathcal H}-X) \% 2^N + 1) \% 2^N = -X$$

• Ex: 4-bit negation of 3

  • $x \rightarrow -x$ is $x-2^4$, where the magnitude of the negative number is $2^4-x$,
    but $2^4$ has no 4-bit representation
  • $2^4 = 2^4 - 1 + 1 = 1111_2 + 0001_2$
  • $3=0011_2$
  • -3: $$\begin{aligned} 2^4 - 3= &1111_2 & + 0001_2 &\red{- 0011_2}\\ =& 1111_2 & \red{ - 0011_2} &+ 0001_2\\ =& & \red{1100_2} &+ 0001_2\\ =& & \red{1101_2} \\ \end{aligned}$$

Ones Complement

• Ones complement representation represents negative numbers by just bit-complement

• Ones complement is inverting bits:

  • $\underbrace{\mathcal H}_{\mathclap{``all\ ones"}} \underset{N}\boxminus X$ , can be arithmetically described as $\underbrace{(2^N-1)}_{\mathclap{``all\ ones"}} \underset{N}\boxminus X$
  • in modular arithmetic is
    $((2^N-1)-X )\% 2^N = -1-X$

• Therefore, to generate a twos complement negative from a ones complement negation, just add 1
  $(2^N-1)\underset{N}\boxminus X \underset{N}\boxplus1 = 2^N – X$
  which as modular arithmetic is
  $((2^N-1)-X +1)\%2^N = (2^N – X) \%2^N = -X$

Sign-Magnitude

• For Sign-Magnitude representation, bit N-1 is the sign and the remaining bits are the magnitude

  •

• $x_{N-1}x_{N-2}x_{N-3}$

• both ones complement and sign-magnitude suffer from 0 have two representations

• data streams with typically small values on either side of zero involve less bit flipping between which can be valuable for power or digital compression applied along the bit columns

  +4: 00000100
  +3: 00000011
  +2: 00000010
  +1: 00000001
  +0: 00000000
  -1: 10000001
  -2: 10000010
  -3: 10000011
  -4: 10000100

    vs

  +4: 00000100
  +3: 00000011
  +2: 00000010
  +1: 00000001
  +0: 00000000
  -1: 11111111
  -2: 11111110
  -3: 11111101
  -4: 11111100

  Note in the sequence below that several column never change

  +4: 00000100
  +0: 00000000
  +3: 00000011
  +3: 00000011
  +3: 00000011
  +3: 00000011
  -3: 10000011
  +0: 00000000
  +1: 00000001
  +0: 00000000
  +1: 00000001
  -3: 10000011
  +1: 00000001
  +0: 00000000
  -1: 10000001
  -2: 10000010
  -3: 10000011
  -3: 10000011
  +3: 00000011
  +2: 00000010
  +3: 00000011
  +2: 00000010
  +1: 00000001
  -4: 10000100
  +0: 00000000
  +1: 00000001
  +0: 00000000
  +1: 00000001
  +1: 00000001
  +0: 00000000
  +1: 00000001
  +0: 00000000
  -1: 10000001
  -2: 10000010
  -3: 10000011
  -3: 10000011
  -3: 10000011
  -4: 10000100
  -4: 10000100


Truncation and Extension for Integers (in C)

In C, if a mix of signed and unsigned operands of the same rank are provided to an operator, operands are first cast to be unsigned (dumb conversion (e.g. -1$\rightarrow$big number)).

Signed/Unsigned Casting may be followed by length adjustment.

Extension/truncation of signed value:

Truncation

• Assignment to a shorter type is always just bit truncation
  • no Python-like smart rounding such as unsigned(-1) → 0
• (Left) Truncation Errors:
  • For unsigned, truncation is not a problem as long as all the truncated bits are 0
    • ex: 0000101 (5) , can truncate at most 3 bits
  • For signed, truncation is no problem as long as all the bits truncated are the same AND they match the surviving msb
    • ex: 1111100 (-4) , can truncate at most 4 bits

Signed and Unsigned Integral Extension

Assignment to a longer type is done with either zero or sign extension depending on the source type:

• Unsigned types use zero extension
• Signed types use sign extension

Long/short unsigned/signed Conversion Rules

(C/C++) Combinations of (dest type) = (source type) to consider

$$\begin{align*} \rm LHS &= RHS \\ \text{( unsigned long)} &= \text{(unsigned long)} \\ \text{( unsigned long)} &= \text{( signed long)} \\ \text{( signed long)} &= \text{(unsigned long)} \\ \text{( signed long)} &= \text{( signed long)} \\ \\ \text{(unsigned short)} &= \text{(unsigned long)}\\ \text{(unsigned short)} &= \text{( signed long)}\\ \text{( signed short)} &= \text{(unsigned long)}\\ \text{( signed short)} &= \text{( signed long)}\\ \\ \text{( unsigned long)} &= \text{(unsigned short)}\\ \text{( unsigned long)} &= \text{( signed short)}\\ \text{( signed long)} &= \text{(unsigned short)}\\ \text{( signed long)} &= \text{( signed short)}\\ \\ \text{(unsigned short)} &= \text{(unsigned short)}\\ \text{(unsigned short)} &= \text{( signed short)}\\ \text{( signed short)} &= \text{(unsigned short)}\\ \text{( signed short)} &= \text{( signed short)} \end{align*}$$

• The C rules are simple and used in Verilog:
  1. extend or truncate source
  • Going from longer to shorter, upper bits are truncated
  • Going from shorter to longer, zero or sign extension is done depending on source type being unsigned or signed respectively
  2. bit copy
  • To/From signed/unsigned is just bit copying, no other smart manipulation/conversion/rounding is done

Long/short unsigned/signed Verilog Conversion Rule Demos

Verilog

module conversion_demo;

wire [7:0]
  u8x = 8'b11111111;
wire signed [7:0]
  s8x = 8'b11111111;
wire [15:0]
  u16x = 16'b1111_1111_1111_1111;
wire signed [15:0]
  s16x = 16'b1111_1111_1111_1111;

wire        [15:0] u16y_ux = u8x;
wire        [15:0] u16y_sx = s8x;
wire signed [15:0] s16y_ux = u8x;
wire signed [15:0] s16y_sx = s8x;

wire        [7:0] u8y_ux = u16x;
wire        [7:0] u8y_sx = s16x;
wire signed [7:0] s8y_ux = u16x;
wire signed [7:0] s8y_sx = s16x;

initial begin
#0;
$display("u16y_ux:%16b,%7d",u16y_ux,u16y_ux);
//u16y_ux: 0000000011111111,     255
$display("u16y_sx:%16b,%7d",u16y_sx,u16y_sx);
//u16y_sx: 1111111111111111,   65535
$display("s16y_ux:%16b,%7d",s16y_ux,s16y_ux);
//s16y_ux: 0000000011111111,     255
$display("s16y_sx:%16b,%7d",s16y_sx,s16y_sx);
//s16y_sx: 1111111111111111,      -1

$display(" u8y_ux: %16b, %7d",u8y_ux,u8y_ux);
//u8y_ux:         11111111,      255
$display(" u8y_sx: %16b, %7d",u8y_sx,u8y_sx);
//u8y_sx:         11111111,      255
$display(" s8y_ux: %16b, %7d",s8y_ux,s8y_ux);
//s8y_ux:         11111111,       -1
$display(" s8y_sx: %16b, %7d",s8y_sx,s8y_sx);
//s8y_sx:         11111111,       -1
end
endmodule

C/C++

unsigned short u16x = 0xFFFF;
signed short s16x = 0xFFFF;
unsigned int u32x = 0xFFFFFFFF;
signed int s32x = 0xFFFFFFFF;
unsigned int u32y_u16x = u16x;
unsigned int u32y_s16x = s16x;
signed int s32y_u16x = u16x;
signed int s32y_s16x = s16x;
unsigned short u16y_u32x = u32x;
unsigned short u16y_s32x = s32x;
signed short s16y_u32x = u32x;
signed short s16y_s32x = s32x;

printf("sizeof(short) :%lu\n",sizeof(short));
printf("sizeof(int)   :%lu\n",sizeof(int));
printf("---\n");
printf("u32y_u16x: %10u\n",u32y_u16x);
printf("u32y_s16x: %10u\n",u32y_s16x);
printf("s32y_u16x: %10d\n",s32y_u16x);
printf("s32y_s16x: %10d\n",s32y_s16x);
printf("u16y_u32x: %10u\n",u16y_u32x);
printf("u16y_s32x: %10u\n",u16y_s32x);
printf("s16y_u32x: %10d\n",s16y_u32x);
printf("s16y_s32x: %10d\n",s16y_s32x);

sizeof(short) :2
sizeof(int)   :4
---
u32y_u16x:      65535
u32y_s16x: 4294967295
s32y_u16x:      65535
s32y_s16x:         -1
u16y_u32x:      65535
u16y_s32x:      65535
s16y_u32x:         -1
s16y_s32x:         -1

Review Points on Bit Length

• Twos-complement addition of two N-bit numbers can require up to N+1 bits to store a full result including the overflow
  • If one operand is shorter, take N to be the maximum of the two lengths
• Two’s complement addition can only overflow if signs of operands are the same (likewise for subtraction the signs must be different)
• Result of N-bit addition with overflow is dropping of MSBits’s: A+B = (A+B) mod (2^N)
• For multiplication, multiplying two N-bit numbers requires up to 2N bits to store the operand. Multiplying a N-bit with a M-bit requires up to N+M bits.

Not All Adder Structures are Alike

Knowing the options for implementation of addition on a given platform in the context of algorithm implementation is important. There are tradeoffs for size and speed. An overview of adders is provided in a later lecture.

Verilog: Sign Extension along with Addition

• Review

  • Sign Extension (extention of signed values) involves repeating the msb
  • Truncation is safe as long as alls truncated bit are the same as the surviving msb


• Verilog Extention/Truncation Might be performed implicitly or explicitly

wire signed [7:0] x,y;
wire signed [15:0] s1,s2;

assign s1 = {8{x[7]},x} +
            {8{y[7]},y} // explicit sign
                        // extension

assign s2 = x + y; // implicit sign extension

Run-time Overflow Detection for Addition

• Two's complement ADDITION of two numbers where the longest is N-bit can require up to N+1 bits for the result

• Two's complement ADDITION can only overflow if the signs of the operands are the same

  • overflow a+b
  • positive overflow (ideal result>127) is blue
  • negative overflow (ideal result<-128) is red
  •

• Overflow check using result:

  • input sign bits are same and do not match result sign bit

• Overflow check using inputs-only:

  • In C: overflow=((a>0) && (b>(INT_MAX-a))) | ((a<0) && (b<(INT_MIN+a)));

• Overflow Run-Time Check Examples:


• Verilog overflow=(a[N-1]==b[N-1]) && (a[N-1]!=y[N-1]);

  Example

  wire signed [7:0] x,y,s;
  wire flagOverflow;

  assign s = x+y; //context determined
                  //    8-bit addition
  //overflow case is when the sign of the
  //  input operands are the same and
  //  sign of result does not match
  assign flagOverflow = (x[7] == y[7]) &&
                        (y[7] ~= s[7])


Run-time Overflow Detection for Subtraction

• Two's complement subtraction can only under/overflow if the signs of the operands are different, otherwise the magnitude of the result must be smaller than the maximum magnitude of the two operands.
  • a-b, overflow is colored
  •
• Overflow check: sign bits of the input operands are different and resulting sign bit does not match the first operand
  • Otherwise stated: sign bit of the second operand and the result are the same and not equal to that of the first
  • Otherwise stated: invert the sign bit of the second operand and perform the bit test for addition overflow or negate (two's complement) second operand and perform the addition overflow test for operarands
• Verilog
  • overflow=(a[N-1]!=b[N-1]) && (a[N-1]!=y[N-1]);
• C
  • overflow=((a>=0) && (b<0) && (y<0)) | ((a<0) && (b>=0) && (y>=0));
  • overflow=((a> 0) && (b<0) && (y<0)) | ((a<0) && (b> 0) && (y>=0));
  • Like addition, might use hardware overflow flag if available
