FSM II

• Characterized by
  • A set of states
  • A set of inputs and outputs
  • A state transition function
  • An output function
• Hardware Implementation
  • Current State held in a register
  • Any additional status information held in status register
  • Next-State and State Control Logic Determines next state and control signals based on registers

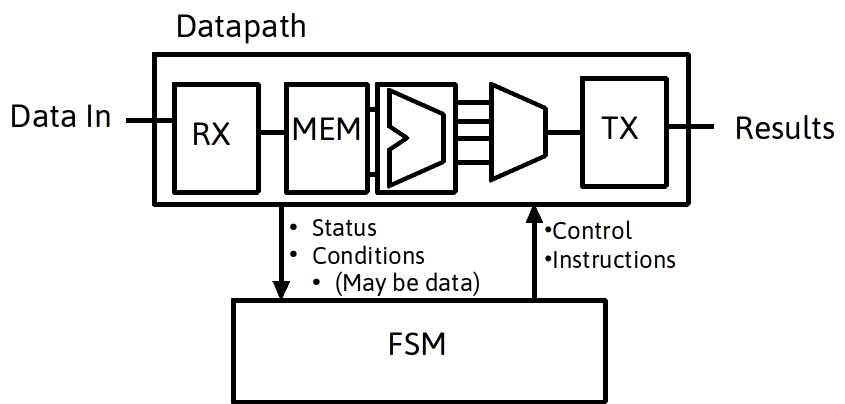

  • Datapath implements operations on data under control of sate control logic

• A very common framework being described and implemented is a Finite State Machine with a Datapath: a data path controlled by signals from a FSM

• Datapath operations can be encoded within the same procedural code as the state machine description or can be built separately.
• First consider partitioning.
  • Datapath: Identify elements in the datapath from experience with traditional digital systems (e.g. communications modules, arithmetic modules, multiplexer's and demultiplexers, registers and multi-word buffers, FIFOs, IP Cores etc…).

  • Control: Identify the control signals required and the status/condition information required to make decisions on the control.
• Datapath operations can be encoded in the state machine description or can be build separately.
  • If pre-built modules are used, as is common, the datapath is necessarily a separate description.
  • Often the datapath represents the algorithm calculations, separating the datapath code makes the code more readable
  • Coding datapath separately can allow more explicit influence over and insight into the resources used for computation while separating details of control code
  • Can sometimes think of datapath as implementing instructions for the controller to invoke/call
  • Separating the datapath code can allow better reuse under a different scheduling of operations (implementing a different algorithm)
  • In general, designing the datapath first and then the control is a good strategy

• the center of focus of a state machine design is arguably the states
• the focus of state machine coding is arguably the state transitions
  • code for transitions can be organized/grouped by
    • source/current state
    • destination/next state
• for testing:
  • transition coverage is central in statemachine testing
  • path coverage with reference to the primary state register is also important when extended state registers or interactions with external components with states are present

• example find borg|car|cat|bat|bot|bet|bit and output \(\rm done\) flag where \(\rm done\) is a registered output

• \(\rm done\) flag logic cannot be coded directly based on CS in each final state case
• registered outputs generally coded once per transition (line of code per edge), though the use of leading defaults may save some lines of code

...
  always @ (posedge clk) begin

  //defaults
  CS<=failed;
  found<=0; done<=0;

  case (CS)
    ...
    recieved_a: if (input =='r') begin
                  CS<=recieved_r_for_car;
                  done<=1; found<=1;
                end else if (input =='t') begin
                  CS<=recieved_t;
                  done<=1; found<=1;
                end else begin
                  //CS<=failed;  //covered leading default
                  done<=1; found<=0;
                end
    ...

• Alternative "3-block style" with output logic coded with use of next state NS

begin
  CS<=failed;
  found<=0; done<=0; //defaults
  case (NS)
    recieved_t:        begin done<=1;found<=1; end
    recieved_r_for_car:begin done<=1;found<=1; end
    recieved_g:        begin done<=1;found<=1; end
    failed:            begin done<=1;found<=0; end
    default:           begin done<=0; end
  ...

case(CS)
  S0: begin
     dx <= x1-x0;
     busy<= 1;
  end
  S1: begin
     dx <= y1-y0;
  end
  S2: begin
     dxSq <= dx*dx;
  end
  S3: begin
     dySq <= dy*dy;
  end
  S4: begin
     dsq <= dxSq+dySq;
     busy<= 0;
  end
endcase

• Encoding datapath operations WITHIN in the statemachine description, along with the controller rather than in a separate code block, is common
• It is common to see "algorithmic" statemachines described with control and computation embedded in the same procedural block. These can be modules which perform complex computations over multiple cycles and require internal working registers/memory
• We'll first focus on control state machines first, with an emphasis on timing and external status and control signals then discuss computational statemachines

• Data-Flow Graphs represents dependencies among operations in the process of an arithmetic algorithm (more compact than a full state diagram).
• A algorithmic state machine performs one or more operations in a state (i.e. clock cycle) while satisfying the required order dependencies from the graph

• Exercise: Draw the Datapath and Identify Status and Control as well as Pre-Register data names

case(CS)
  S0: begin
     dx <= x1-x0;
     busy<= 1;
  end
  S1: begin
     dx <= y1-y0;
  end
  S2: begin
     dxSq <= dx*dx;
  end
  S3: begin
     dySq <= dy*dy;
  end
  S4: begin
     dsq <= dxSq+dySq;
     busy<= 0;
  end
endcase

• At times we'll want to include an extra register to store information that we don't want to code as part of our primary state register.
  • Examples:
    • partial results in the process of a multi-cycle computation
    • saved results to provide at the output ports at a later time
    • status flags for events that should be remembered and used in later processing and state decisions
    • event counters
    • timing counters, to control timing without creating additional states
• These extended state registers are not necessarily represented by the number of drawn states state transition diagram or the primary coded state register, but formally they ARE part of the state of the system
• Note the explicit state register and the additional extended state registers
  • Note that the output and status can be based one or more of the input, NS, and other state registers.

• Logic based on only the current state groups updates based on the current/source state, e.g. describes all output independently of transition away from the current state

case (CS)
  S0: begin flag=0; end //unconditional, combinational output in S0
  S1: begin flag=1; end

• Including the input signals makes the output/update input-dependent

case (CS)
  S0: begin
    if (in==0)
      flag=0;   //conditional, combinational output while in S0,
                //  updates immediately with input change
    else
      flag=1;   //conditional, combinational output while in S0,
                //  updates immediately with input change
    end
  S1: begin flag=1; end

• Including NS as a dependency selects edges based on the destination state. Note that NS itself may depend on the input. This is useful if complex parts of the output logic have already been capture in the NS logic description.

case (CS)
  S0: begin
    if (NS==S3)
      flag=0;   //conditional, combinational output while in S0,
                //  updates immediately with input change through immediate NS change
    else
      flag=1;   //conditional, combinational output while in S0,
                //  updates immediately with input change through immediate NS change
    end
  S1: begin flag=1; end

• Using a root case statement based on NS tends to organize updates based on the destination state (transitions into state). This is useful for registered output logic.

case (NS)
  S0: begin flag=0; end // combinational output, update seen immediately
                        // with input update that selects destination state S0
  S1: begin flag=1; end

case (NS)
  S0: begin
    if (CS==S3)
      flag=0;          // combinational output, update applied immediately
                       // with input update that selects destination state S0
                       // applies only if current state is S3
    else
      flag=1;
    end
  S1: begin flag=1; end

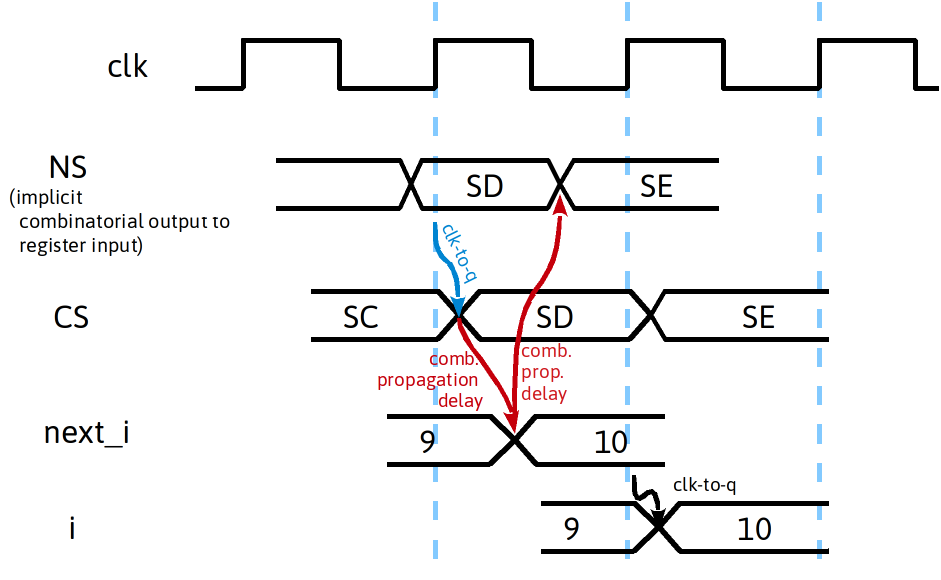

• Using NS useful for

  • registered output logic to organize code so that assignments coincide with state symbols according to timing coincidence

  always @ (posedge clk) begin
    case (NS)
      S0: begin flag<=0; end //glitch-free update when CS becomes S0
      S1: begin flag<=1; end //glitch-free update when CS becomes S1


  • whenever current combinational outputs are correlated to the next state

  //S_found should be high whenenver the next state is S_found and should be asserted until the state has been fully exited
  always_comb begin
     if (NS==S_found) begin
        found=1;
     else
        found=0;
  end




//S_found should be high whenenver the next state is S_found and should be asserted until the state has been fully exited
always_comb begin
   if (NS==S_found || CS=S_found) begin
      found=1;
   else
      found=0;
end

One of the advantages of registered output design is in design partitioning and addressing the timing of a design within each partition.

Registered Ouput Modules:

Assembled Registered Ouput Modules:

• Length of Combinatorial Paths are better matched to those in the partitions

Irregular Modules:

Assembled Irregular Modules:

• Length of paths is determined by factors across partitions
• Logic Optimizer and designer therefore have different perspectives of the design
• Output path has under-specified timing constraint that may need to account for delays of output


• Improper assembly with combinational outputs can create combinational loops, whereas having all module output be registers avoids this.



• the primary may assert a request until it is acknowledged
• commonly, if a request and an ack are asserted in the same cycle, then it is assume that the data is consumed

• for reading (e.g. results) the master may wait until a result is ready to read a response
  • a separate flag like done or data valid (presented for consumption) is common for this

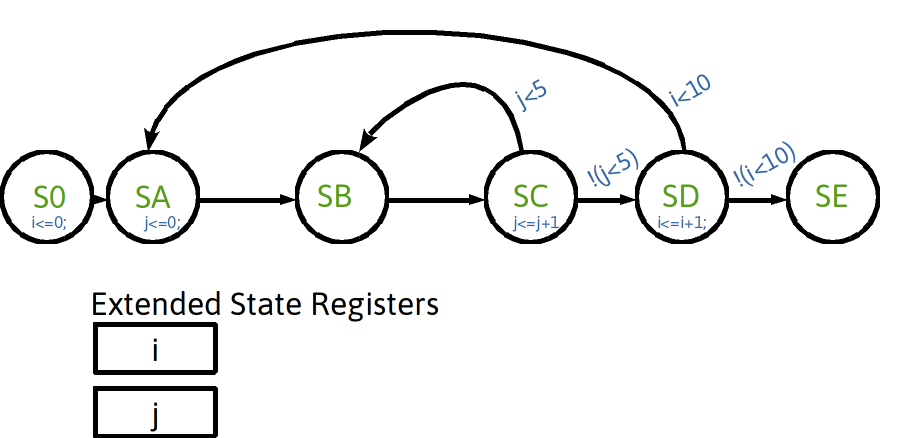

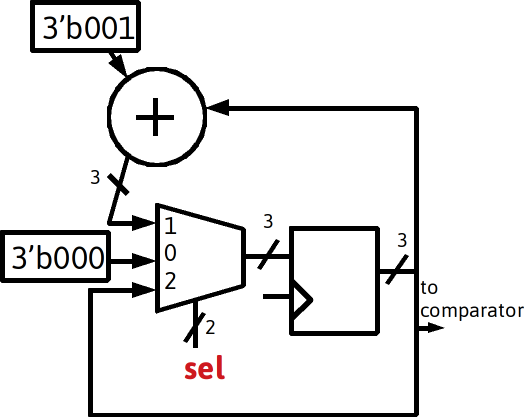

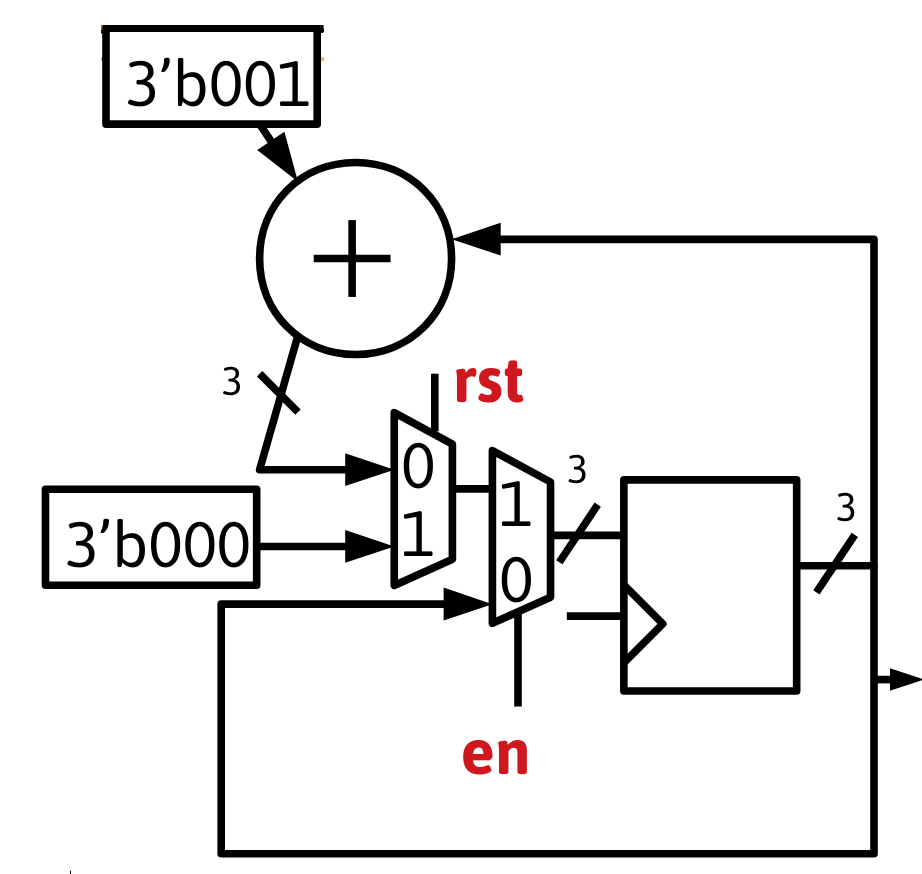

• Extended-state registers can help implement loop behaviors

• Example: create outer loop with 10 iterations and inner loop with 5 iterations



• In the following slides, we will consider examples of algorithmic FSMs. These are used to describe and synthesize multi-cycle computations. The number of state transitions defined are typically less than with a complex controller FSM.
• A more regular, forward, orderly progression through the states is typical, and the designer's thought processes may be focused on the computation being performed in each state and the resulting partial results (in registers), as opposed to the output during the state.
  • Thus, it becomes more reasonable to use a single edge-triggered always block in the design. The fewer number of transition decisions (branches) makes the concern of code bloat negligible.

• quick reference:
  • https://www.amd.com/content/dam/amd/en/documents/university/vivado-teaching/hdl-design/2015x/Verilog/docs-pdf/lab11.pdf
  • if that link doesn't work: https://www.google.com/search?q=amd+asm+chart+lab
  • old link:https://www.xilinx.com/content/dam/xilinx/support/documents/university/Vivado-Teaching/HDL-Design/2015x/Verilog/docs-pdf/lab11.pdf

• An quick introduction to informal ASM Diagrams ** ASM Chart Elements

  • State Box
    • State Name (required)
    • State Encoding (optional)
    • Moore Machine Output Updates (combinational logic)
  • Conditional Rounded Box
    • Mealy Machine Output Updates (optional, combinational logic)
    • Register Updates (optional, denoted with <=) non-standard addition to ASM charts
      • in formal ASM diagrams, these would be represented by the combination of a register enable being asserted and data presented to the register
    • internal/automatic these are another non-standard addition to ASM charts
      • denoted with leading underscore_, blocking assignment
      • default assumed to be don't care for branches not specified
  • Decision Diamond
    • Test Condition
    • Exit Paths
      • Two for if
      • two or more for case
  • General Notes:
    • Well-defined initial state, such as single entry point with actionless path to one initial state
    • Multiple exit paths may exist
    • Note that registers may only be updated once per clock cycle,
      • Improper to represent multiple updates in one cycle
    • Commonly outputs are written just by name (rather than out=1), and it is assumed the unspecified outputs default to 0

Example Euclid GCD:

function gcd(a, b)
    while (a != b)
        if a > b
            a = a − b
        else
            b = b − a
    return a

Reference Computation Module for discussion

Head

module FSM_opt(
    output reg [7:0] f,
    output reg [7:0] g,
    input clk,
    input wire [7:0] i,
    input wire [7:0] j,
    input wire [7:0] k,
    input rst
    );
reg [7:0] CS;
reg [7:0] i_int,j_int,k_int;

localparam S_0 = 8'b00000000;
localparam S_1 = 8'b00000001;
localparam S_2 = 8'b00000010;

Body

always @ (posedge clk) begin
  if (rst) begin
    CS<=S_0;
    f<=0;
    h<=0;
  end else begin
    case(CS)
      S_0: begin
        i_int<=i;
        j_int<=j;
        k_int<=k;
        CS<=S_1;  end
      S_1: begin
        CS<=S_2;  end
      S_2: begin
        f<=i_int*j_int;
        h<=j_int*k_int;
        CS<=S_0;  end
    endcase
  end
end
endmodule

Suggested RTL

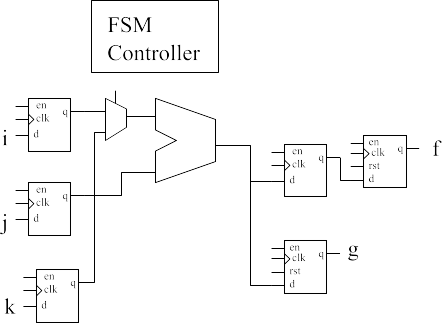

Alternative RTL with lower gate count:

always @ (posedge clk) begin
  if (rst) begin
    f<=0; g<=0;
    CS<=S_0;
  end else begin
    case(CS)
      S_0: begin
        i_int<=i;
        j_int<=j;
        k_int<=k;
        CS<=S_1;  end
      S_1: begin

        CS<=S_2;  end
      S_2: begin
        f<=i_int*j_int; //**
        g<=j_int*k_int;
        CS<=S_0;  end
    endcase
  end
end
endmodule

Explicitly coding the rescheduling so that only one multiply is performed per cycle is simple and seen in the next code. However, this doesn't ensure resource sharing as shown in the figure with one a single multiplier.

Alt. Module Body

always @ (posedge clk) begin
 if (rst) begin
   f<=0; g<=0;
   CS<=S_0;
 end else begin
  case(CS)
   S_0: begin
    i_int<=i;
    j_int<=j;
    k_int<=k;
    CS<=S_1;  end
   S_1: begin
    f_int<=i_int*j_int; //**moved to here**//
    CS<=S_2;  end
   S_2: begin
    f<=f_int;   //*timed output load*//
    g<=k_int*j_int;
    CS<=S_0;  end
  endcase
 end
end
endmodule

• Suggesting Resource Sharing guides the synthesizer to reuse hardware for operations at multiple places in the code
• The coding method depends on the synthesizer tool: the following code is more likely interpreted as resource sharing since the multiplier result is always written to the same variable

module fsm(f,g,i,j,k,rst,clk);
input [7:0] i,j,k;
output reg [7:0] f,g;
input rst,clk;
reg [3:0] CS;
localparam S_0=0,S_1=1,S_2=2;

always @ (posedge clk) begin:named
 reg [7:0] i_int,j_int,k_int,f_int;
 reg [7:0] mult_out;
 mult_out = 8'bx;
 if (rst) begin
   f<=0; g<=0;
   CS<=S_0;
 end else begin
  case(CS)
   S_0: begin
    i_int<=i;
    j_int<=j;
    k_int<=k;
    CS<=S_1;
   end
   S_1: begin
    mult_out = i_int*j_int;
    f_int <= mult_out;
    CS<=S_2;
   end
   S_2: begin
    f <= f_int;
    mult_out = k_int*j_int;
    g    <= mult_out;
    CS<=S_0;
   end
  endcase
 end
end
endmodule

• The state encoding effects the size of the decoder, speed, dependent logic optimization, etc.
• Contents of the section below (aside from tables) are directly quoted or minimally modifed from Xilinx documents http://www.xilinx.com/support/documentation/sw_manuals/xilinx11/xst.pdf (old) https://www.xilinx.com/support/documents/sw_manuals/xilinx2022_2/ug901-vivado-synthesis.pdf
• Be familiar with Auto, One-hot, Gray, Johnson, User

• One of the benefits of extracting FSMs, is that additional analysis and design checks are available: "XST can detect unreachable states in an FSM. It lists them in the log file in the HDL Synthesis step."

• XST can add logic to your Finite State Machine (FSM) implementation that will let your state machine recover from an invalid state. If during its execution, a state machine enters an invalid state, the logic added by XST will bring it back to a known state, called a recovery state. This is known as Safe Implementation mode.
• By default, XST automatically selects a reset state as the recovery state. …
• This feature is useful in system susceptible to corruption or as a way to handle undefined power-on initialization

• One-hot encoding is good for speed and simplicity of state decoding logic to control datapath, and next-state logic is simple state transition
  • easy to detect invalid state
• More compact codes such as standard binary encoding generally require a smaller state state register than one-hot encoding at the possible cost of size and speed.
  • But this depends on the density of combinatorial logic vs. registers the supporting HW platform and in the design.

  • FPGAs have many registers and so the cost of additional combinatorial logic may large compared to the savings from needing less registers.
• Codes where only one or two bits change at a time in the state register may be beneficial.
  • Less transitions may lead to less power depending on overall design, e.g. if stage register output connects to a high-capacitance load (high-fanout)
  • Can minimize the chance of metastability errors (such as systems with tight timing, or radiation vulnerability).

  • These codes may also minimize logic glitches.

• The XST log file reports the full information of recognized Finite State Machine (FSM) components during the Macro Recognition step. Moreover, if you allow XST to choose the best encoding algorithm for your FSMs, it reports the one it chose for each FSM.  As soon as encoding is selected, XST reports the original and final FSM encoding. If the target is an FPGA device, XST reports this encoding at the HDL Synthesis step. If the target is a CPLD device, then XST reports this encoding at the Low Level Optimization step.

Log File Example

Synthesizing Unit <fsm_1>.
Related source file is "/state_machines_1.vhd".
Found finite state machine <FSM_0> for signal <state>.
------------------------------------------------------
| States         | 4                 |
| Transitions    | 5                 |
| Inputs         | 1                 |
| Outputs        | 4                 |
| Clock          | clk (rising_edge) |
| Reset          | reset (positive)  |
| Reset type     | asynchronous      |
| Reset State    | s1                |
| Power Up State | s1                |
| Encoding       | automatic         |
| Implementation | LUT               |
------------------------------------------------------
Found 1-bit register for signal <outp>.
Summary:
inferred 1 Finite State Machine(s).
inferred 1 D-type flip-flop(s).
Unit <fsm_1> synthesized.
========================================================



HDL Synthesis Report
Macro Statistics
# Registers : 1 {#registers--1 }
1-bit register : 1
========================================================
========================================================
* Advanced HDL Synthesis *
========================================================
Advanced Registered AddSub inference ...
Analyzing FSM <FSM_0> for best encoding.
Optimizing FSM <state/FSM_0> on signal <state[1:2]>
with gray encoding.
-------------------
State | Encoding
-------------------
   s1 | 00
   s2 | 01
   s3 | 11
   s4 | 10
-------------------
=======================================================
HDL Synthesis Report
Macro Statistics
# FSMs : 1 {#fsms--1 }
=======================================================

• Most synthesizers support various instructions to modify synthesis behavior
  • http://www.xilinx.com/itp/xilinx8/books/data/docs/xst/xst0064_8.html#wp255324
• Many options can be applied globally or on a per module instance or even per block level.
• tools
  • constraints files,
  • projects settings
    • Additional Synthesis Options and Directives for Xilinx: https://docs.amd.com/r/en-US/ug901-vivado-synthesis/Using-Synthesis-Settings
  • some as a command-line options
  • custom verilog attributes (syntax for attributes is standard)
    • \(* fsm_encoding = "none" *\) reg [1:0] state
  • inline via non-standard syntax within comments (aka meta-comments)

    • The comment below is an example of a synthesizer directive / inline-constraint:

      casex select // synthesis full_case
      4'b1xxx: res = data1;
      4'bx1xx: res = data2;
      4'bxx1x: res = data3;
      4'bxxx1: res = data4;


• tools may not detect and process state machines by default, read manual for synthesizer tools
• for some tools, an explicit command is available
• Xilinx FSM Constraints
  • Xilinx Synthesis Constraints for state machines
    • http://www.xilinx.com/itp/3_1i/data/fise/xst/chap02/xst02014.htm
  • Related constraints are:
    • fsm_extract
      • determines if state machines are detected/extracted
      • http://www.xilinx.com/itp/xilinx7/books/data/docs/cgd/cgd0093_54.html
    • fsm_encoding
      • can set state encoding globally or per-instance
      • http://www.xilinx.com/itp/xilinx7/books/data/docs/cgd/cgd0092_53.html
    • fsm_fftype
      • use D or toggle flip flops for state register
      • http://www.xilinx.com/itp/xilinx4/data/docs/cgd/f8.html
    • enum_encoding
      • sets encoding when fsm_extract is used to select user
      • http://www.xilinx.com/itp/xilinx4/data/docs/cgd/e3.html

• You should not automatically add default case to synthesize a FSM since the logic has to cover many unnecessary states and can create considerable extra logic

  • Check documentation for your synthesizer's behavior
  • Special effort may be required to have the synthesizer ignore the default case yet allow logging in simulation: http://www.trilobyte.com/pdf/golson_snug94.pdf:

  // synopsys translate_off
  default: \$display(“He’s dead, Jim.”) ;
  // synopsys translate_on


• Example FFT Data Flow HW solution depicting extended state registers and state repetition

  https://eclipse.umbc.edu/robucci/cmpe415/attachments/hw6/hw6.pdf

  https://eclipse.umbc.edu/robucci/cmpe415/attachments/hw6/fft_state_machine.v
