Lecture 09 Ch 6 (part II) Microprogrammed Architectures

• \(\dagger\) [A Practical Introduction to Hardware Software Codesign] Patrick Shaumont
• Microprogramming Slides from [http://ece-research.unm.edu/jimp/codesign/]

• With a microprogrammed machine, th next-state logic of FSM is replaced with a programmable memory called the Control Store
• The control store holds micro-instructions, and is addressed using a registered called a CSAR (Control Store Address Register)

• CSAR is the equivalent of a program counter in a microprocessor
• Next-value of CSAR is determined by next-address logic, using
  1. current value of CSAR
  2. current micro-instruction
  3. value of status flags evaluated by the datapath
• Default next-state value is (CSAR + 1)
  • In addition, next-address-logic implements conditional and absolute or relative jumps
• The next-address logic, the CSAR, and the control store implement the equivalent of an instruction-fetch cycle in a microprocessor
• From the figure, each micro-instruction takes a single clock cycle to execute since there is only one register
• Within a single clock cycle, the following activities occur:
  1. The CSAR provides an address to the control store which retrieves a micro-instruction
  2. micro-instruction has two parts:
     • command-field serves as a command for the datapath
     • jump-field 'points' to the next-address logic
  2. The datapath executes the command encoded in the micro-instruction, and returns status information to the next- address logic
  3. The next-address logic combines datapath states, micro-instruction jump-field and status returned from the datapath
  4. The next-address logic will eventually update the CSAR
  5. The critical path of the micro-programmed machine is determined by the delay through the control store, the next-address logic, and the datapath

• While the micro-programmed controller is more complicated than the FSMD, it also addresses the problems of FSMDs very effectively:
  1. complexity
  2. exceptions
  3. control hierarchy
  4. flexibility/reprogrammablity
• The micro-programmed controller scales well with complexity
  • For example, a 12-bit CSAR will allow a control store with up the 4096 locations, and therefore a micro-program with 4096 steps
  • An equivalent FSM diagram with 4096 states, on the other hand, would be horrible to draw!

• A micro-programmed machine can deal efficiently with exception handling, since global exceptions are managed directly by the next-address logic
  • For example, the presence of a global exception can feed a hard-coded value into the CSAR, immediately transferring control to an exception-handler
  • Therefore, exception handling does not affect every instruction of a microprogram in the same way as it affects every state of a FSM
• A micro-programmed machine deals very well with control hierarchies
  • Small modifications to the microprogrammed machine shown above allow pushing and popping of the CSAR for sub-routine calls

• Micro-programs are flexible and very easy to change after the micro-programmed machine is designed
  • Simply changing the contents of the control store is sufficient to change the program of the machine
  • Here, there is a clear distinction between the architecture of the machine and the functionality implemented using that architecture

• Of the example 32-bit micro-instruction word, 16 bits are reserved for the datapath and 16 bits are reserved for the next-address logic
• The next-address field holds an absolute target address, pointing to a location in the control store
  • The address is 12 bit, which allows a control store as large as 4096 locations
• The next field encodes the operation that will lead to the next value of CSAR
  • As mentioned, the default operation is to increment CSAR
• For some instructions, the address field is unused

• Next field allows various jump instructions to be encoded
  • Absolute jumps transfers the value of the address field into CSAR
  • Relative Jumps transfers the value of the address field into CSAR
  • A conditional jump will use the value of a flag to conditionally update the CSAR (or just increment it) it can also use absolute or relative program addressing
• Dedicating bits to the address field is wasteful
  • In the example, 12 bits are dedicated to the address field
  • Only about 1 in every 5 instructions is a jump
  • There are ways to optimize this so that the address field bits are used for another purpose when the micro-instructions is not a jump instruction

• There are two approaches at micro- instruction encoding
  • Horizontal microcode, where no or minimal decoding is required is done
  • Vertical microcode, where the maximal amount of instruction encoding is done requiring more decoding

• A wide (horizontal) micro-instruction word allows each control bit of the data path to be stored separately
• A narrow micro-instruction word, on the other hand, will require the creation of symbolic instructions, which are encoded groups of control-bits for the datapath
  • Therefore, a few bits of the micro-instruction define the value of many control bits in the data-path

• Here, we create a micro-programmed machine with three instructions on reg a
• The three instructions do one of the following
  • Double the value in a
  • Decrement the value in a, or
  • Initialize the value in a
• The datapath shown along the bottom of the figure contains two multiplexers and a programmable adder/subtractor
• The controller on top shows two possible encodings for the three instructions: a horizontal encoding, and a vertical encoding

• For horizontal, the control store includes each of the control bits in the datapath directly (3 bits)
• For vertical, the micro-instructions are encoded with a two-bit micro- instruction word, and a decoder is used
• So what is the design trade-off between horizontal and vertical microprograms?
• Vertical micro-programs have a better code density, which is beneficial for the size of the control store.
  • From the figure, the vertically-encoded version of the microprogram will be only 2/3rds of the size of the horizontally-encoded version
• On the other hand, vertical micro-programs use an additional level of encoding, and need decoding before it can drive the control bits of the datapath
  • Thus, the machine with the vertically encoded micro-program may have a longer critical path
• In practice, designers use a combination of vertical and horizontal encoding concepts, so that the resulting digital structure is compact yet efficient
• Consider for example the value of the next field of the micro-instruction word
• There are six different types of jump instructions, which would imply that a vertical micro-instruction needs no more then three bits to encode these six jumps

• Yet, four bits have been used, indicating that there is some redundancy
• The encoding was chosen to simplify the design of the next-address logic
• Another reason to leave "room" in the encoding is to allow future upgrades
• For example, easy to add an additional conditional jump that uses an arbitrary combination of cf and zf

• A datapath attached to the microprogrammed controller consists of three parts (like the Datapath for the FSMD):
  • Computation units such as adders, multipliers, shifters, and so on.
  • Communications infrastructure (bus, crossbar, point-to-point connection, etc.)
  • Storage, typically a register file or scratchpad RAM
• Each of these may contribute a few control bits to the micro-instruction word

• For example,
  • Multi-function computation units have selection bits that determine their specific function, Storage units have address bits and read/write command bits
  • Communication busses have source/destination control bits
• The datapath may also generate condition flags for the micro-programmed controller

• Consider the micro-programmed controller with a datapath attached
• The datapath includes an ALU with shifter unit, a register file with 8 entries, an accumulator register, and an input port

• The micro-instruction word contains 6 fields Nxt and Address are used by the micro-programmed controller while the remaining fields are used by the datapath. The type of encoding is mixed horizontal/vertical.
  • The overall machine uses a horizontal encoding, i.e., each module of the machine is controlled independently
  • The sub-modules within the machine use a vertical encoding, e.g., the ALU field contains 4 bits and can execute up to 16 different commands

Other characteristics:

• single instruction per clock cycle
• ALU operands
  • inputs: accumulator and another from the reg. file or input port
  • output: result sent to the reg file or accumulator
• datapath operation is controlled by 2 fields, SBUS (to specify source) and Dest (for result)
• The Shifter generates 2 flags, used by controller to implement conditional jumps
• A zero-flag: high when the output of the shifter is all-zero
• A carry-flag: which is defined as the most-significant bit

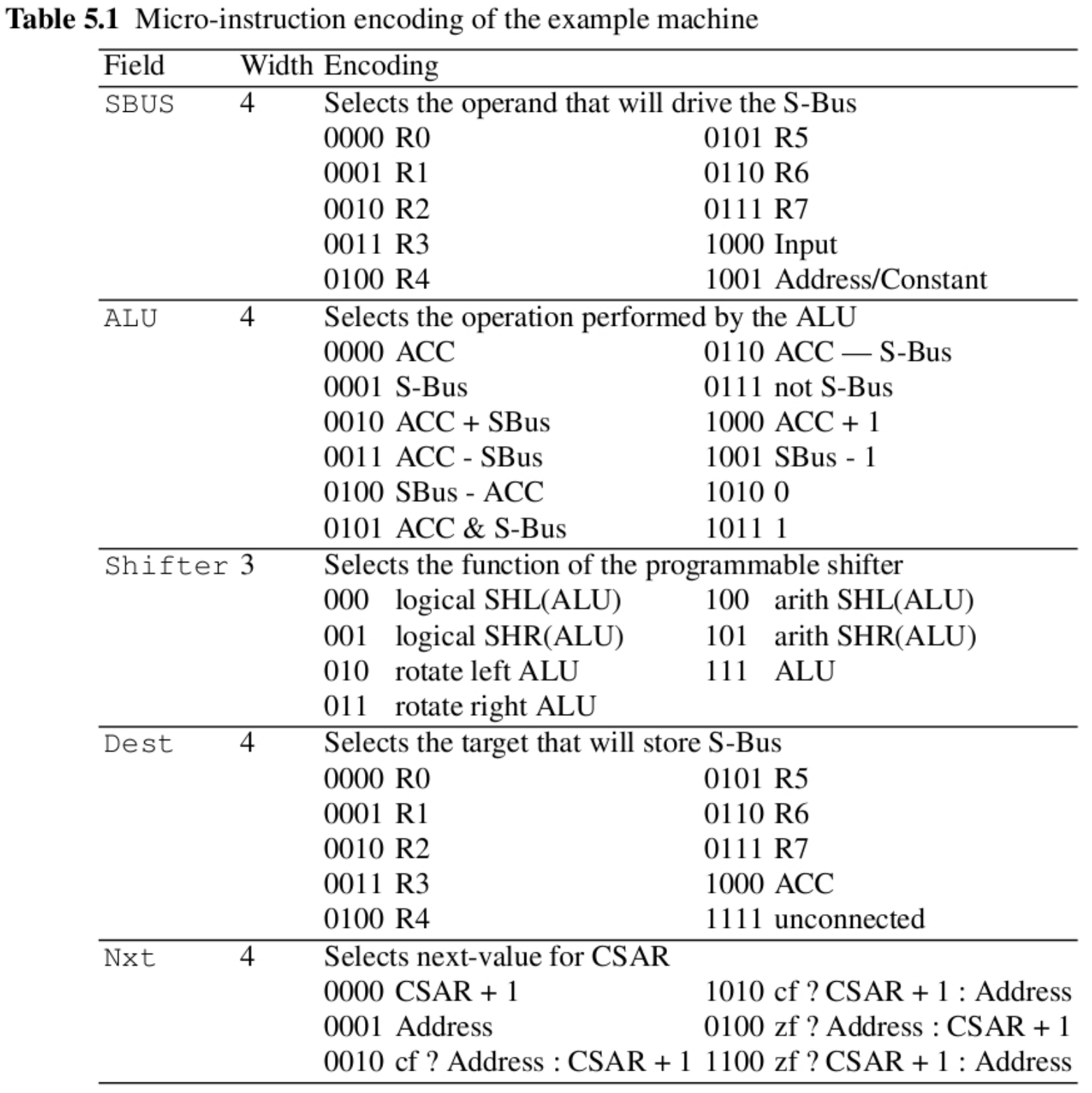

• table illustrates the encoding used by each module of the design
• A micro-instruction defines the module function for each module of the micro-programmed machine, including a next-address for the Address field
• When a field remains unused during a particular instruction, a don't care value can be specified
• The don't care values are designed to prevent unwanted state changes in the datapath
• For example, an instruction to copy register R2 into the accumulator register ACC would be defined as follows
  • The instruction gets the value in register R2 from the reg file, sends it over the SBus, through the ALU and the shifter, and to the ACC register
• This functional requirement determines the values in the micro-instruction fields:
  • The SBUS needs to transfer the value of R2, so (from the Table), the SBUS field is set to 0010
  • The ALU needs to pass the SBUS input to the output, therefore, from the Table, the ALU field must be set to 0001
  • The shifter passes the ALU output unmodified, thus the Shifter field is set to 111
  • The output of the shifter is used to update the ACC, so the Dest field equals 1000
  • There is no jump or control transfer for this instruction, so the Nxt field is set to 0000 and the Address field is don't care
    • The overall micro-instruction is assembled by putting all instruction fields together (as shown below) –0x10F80000

• Writing a micro-program thus consists of formulating the desired behavior as a sequence of register transfers and then encoding them in the microinstruction fields
• Higher-level contructs, such as loops and if-then-else statements, are expressed as a sequence of register transfers
• Although this looks like a tedious task, bear in mind that the programmer has full control over the hardware at every clock cycle

• Let's write the micro-program that implements Euclid's algorithm

  1 ; Command Field           || Jump Field
  2         IN -> R0
  3         IN -> ACC
  4 Lcheck: (R0 - ACC)        || JUMP_IF_Z Ldone
  5         (R0 - ACC) << 1   || JUMP_IF_C LSmall
  6         (R0 - ACC) -> R0  || JUMP Lcheck
  7 Lsmall: (ACC - R0) -> ACC || JUMP Lcheck
  8 Ldone:                       JUMP Ldone


  Listing 6.1

• Lines 2 and 3 read in two values from the input port, and store them into registers R0 and ACC.
• At the end of the program, the resulting GCD will be available in either ACC or R0
  • The exit condition is implemented in line 4, using a subtraction of two registers and a conditional jump based on the zero-flag
• When the registers have different values, the program continues to subtract the largest one from the smallest one
• The larger value stored in R0 and ACC is determined by line 5, a conditional jump
  • The "bigger than" test is implemented using a subtraction, a left-shift and a test on the resulting carry-flag
  • If the carry-flag is set, then the most-significant bit of the subtraction would be one, indicating a negative result in two's complement
  • This instruction is a conditional jump-if-carry, and is taken if R0 is < then ACC
• Lines 4, line 5 and line 6 implement an if-then-else stmt using multiple conditional and unconditional jump instructions

• Book gives Example of a Micro-programmed Machine with hardware and microcode software in GEZEL
  • The design is itself an example of how the FSMD model can be applied to create a more complex micro-programmed machine
• Next, we show how this can be used to create programming concepts at even higher levels of abstraction, using micro-program interpreters

• A micro-program is a sequence of commands highly-optimized for a datapath
• Writing efficient micro-programs for a given machine architecture requires an in-depth understanding of the specific machine architecture and its datapath – this represents some learning overhead over the programmer
• If a pseudo-assembly language and custom “assembler” are created with the architecture it makes coding coding easier
• As opposed to implementing complete applications as microcode, common usage of micro-programs is to serve as interpreters for other programs developed at a higher abstraction level, implementing some subset of required features (example: implement multiplier over several clock cycles using adder and shifter)
  • An interpreter is a machine that decodes and executes instruction sequences of an abstract high-level machine – a macro-machine
• The instructions from the macro-machine will be implemented as micro-programs
• A micro-program interpreter is designed as an infinite loop
  • It reads a macro-instruction byte and decodes it into opcode and operand fields
  • It then takes specific actions depending on the values of the opcode

• Consider the following simple machine as a programmers' model of a macromachine
• It has four registers RA through RD, and two instructions for adding and multiplying those registers

• The macro-machine has the same wordlength as the micro-programmed machine but has fewer registers than the micro-programmed machine
• To implement the macro-machine, we map the macro-register set directly onto the micro-register set (as shown right)
• This leaves register R0 to R3, and the accumulator, available to implement macroinstructions
• The macro-machine has two instructions: ADD and MUL, which take two source operands (in the macro-machine registers) and generates one
• The micro-machine needs a decoder for macro-instructions (which are 1 byte wide)
  • The format is two bits for the macro-opcode, and two bits for each of the macroinstruction operands
• A micro-programmed interpreter can create the illusion of a machine that has more powerful instructions than the original micro-programmed architecture
• The microprogram itself may require multiple cycles to complete the multiple micro-machine instructions required to implement a single macro-machine instruction, complicating the coding process
• The concept of micro-program interpreters has been used extensively to design processors with configurable instruction sets, and was originally used to enhance the flexibility of expensive hardware
• Today, the technique of micro-program interpreter design is still very useful for creating an additional level of abstraction on top of a micro-programmed architecture

• Pipeline registers can be used to break up the micro-program controller logic
• However, adding pipeline registers has a large impact on the design of micro-programs
• Each choice cutes through a different update-loop of the CSAR register
  • through the next-address logic,
  • through the control store and the next-address logic
  • through the control store, the data path, and the next-address logic
• These combinational paths may limit the maximum clock frequency of the microprogrammed machine

• There are three common places where pipeline registers may be inserted, as shown above with shaded boxes

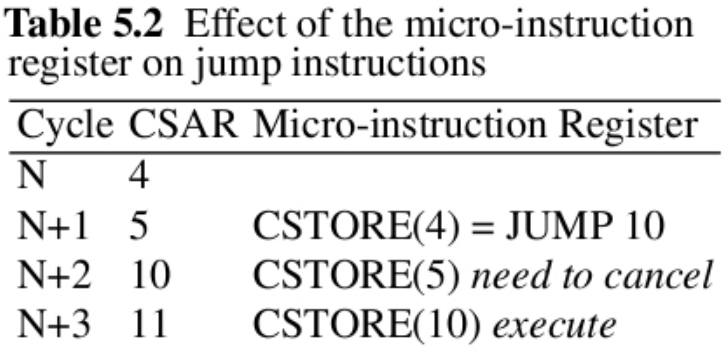

  1. At the output of the control store as a micro-instruction register
     • Inserting a register there allows temporal overlap of the datapath evaluation, the next address evaluation, and the micro-instruction fetch

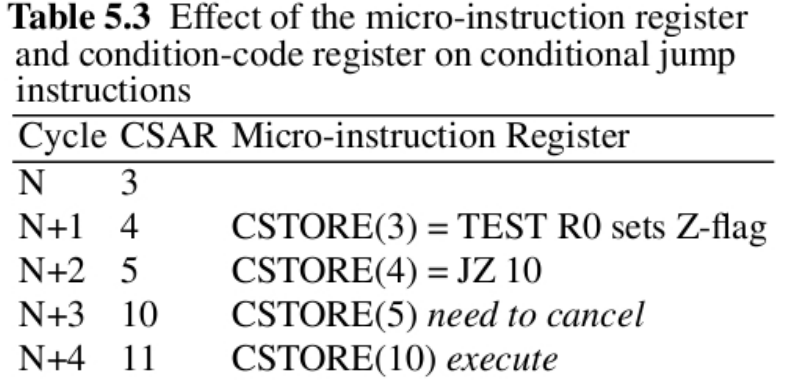

  2. In the datapath to create a datapath pipeline
     • Common to have condition-code registers can be inserted on datapath outputs (status registers)

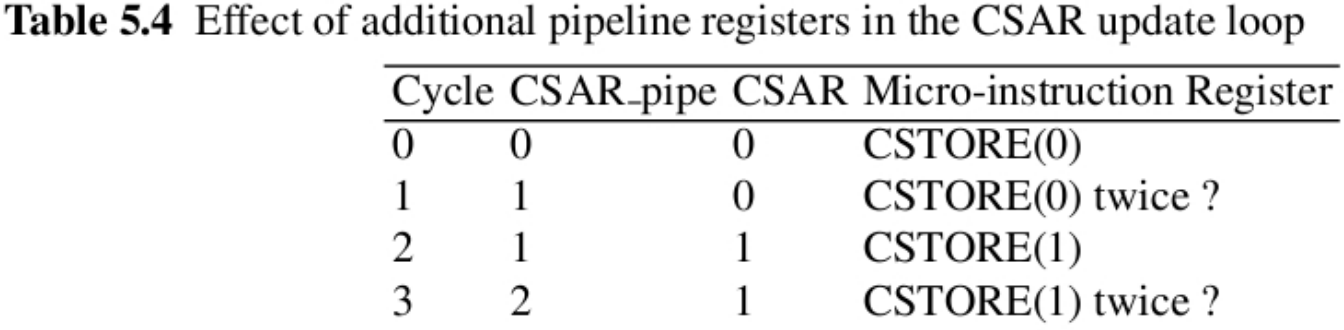

  3. In the next-address logic
     • in case high-speed operation is required and the target CSAR address cannot be evaluated within a single clock cycle

• These examples show that a micro-programmer must be aware of the implementation details of the micro-architecture
• In particular, he/she MUST be aware of all the delay effects caused by registers
• This significantly increases the complexity of the development of micro-programs
• A possible approach is to develop a custom language and/or compiler
